One-Side Entry Transparent Terminal Blocks

One-Side Entry Transparent Terminal Blocks

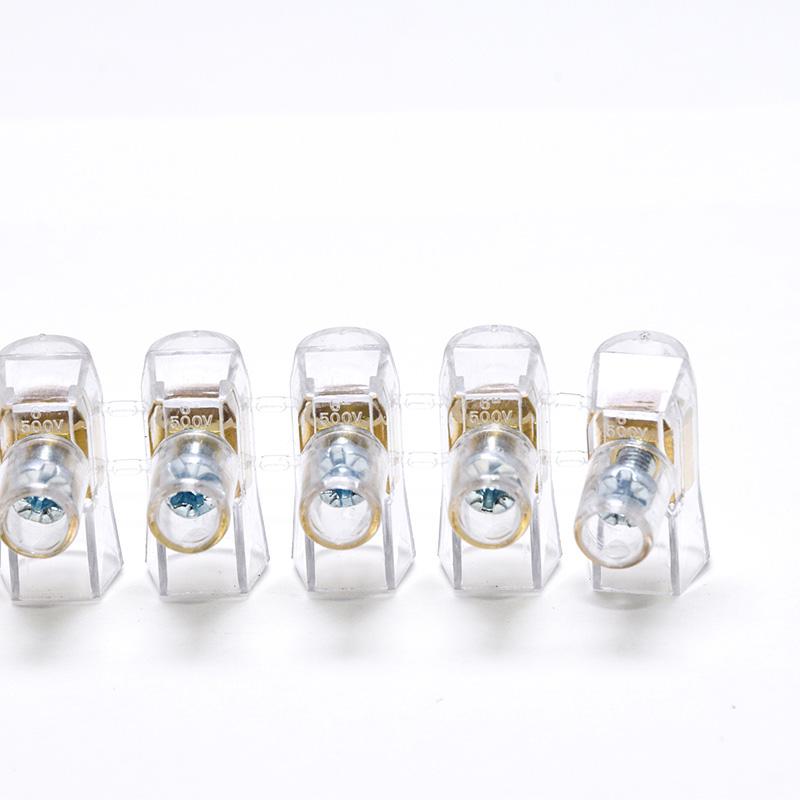

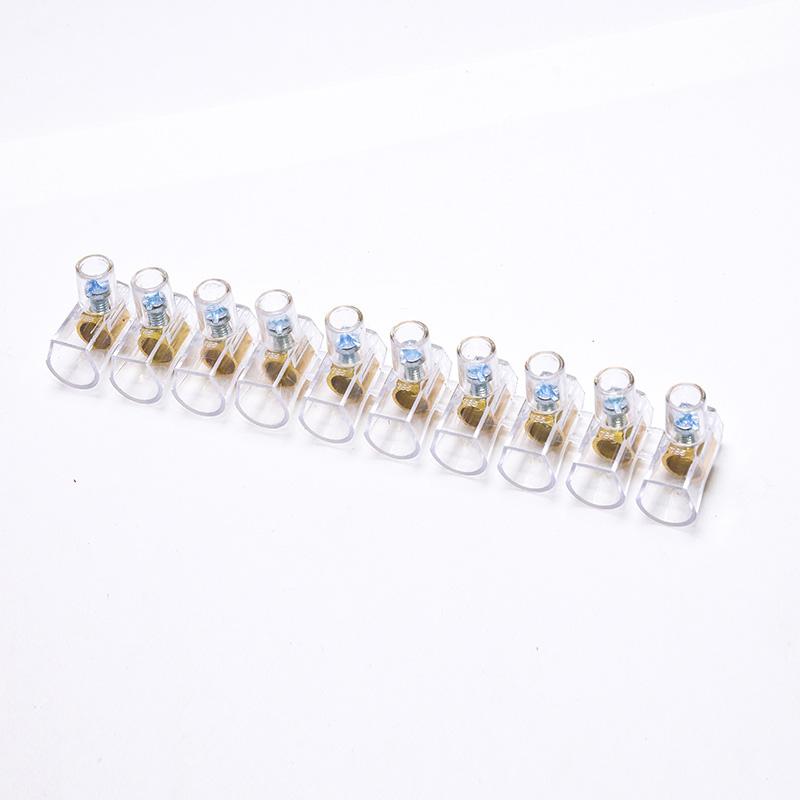

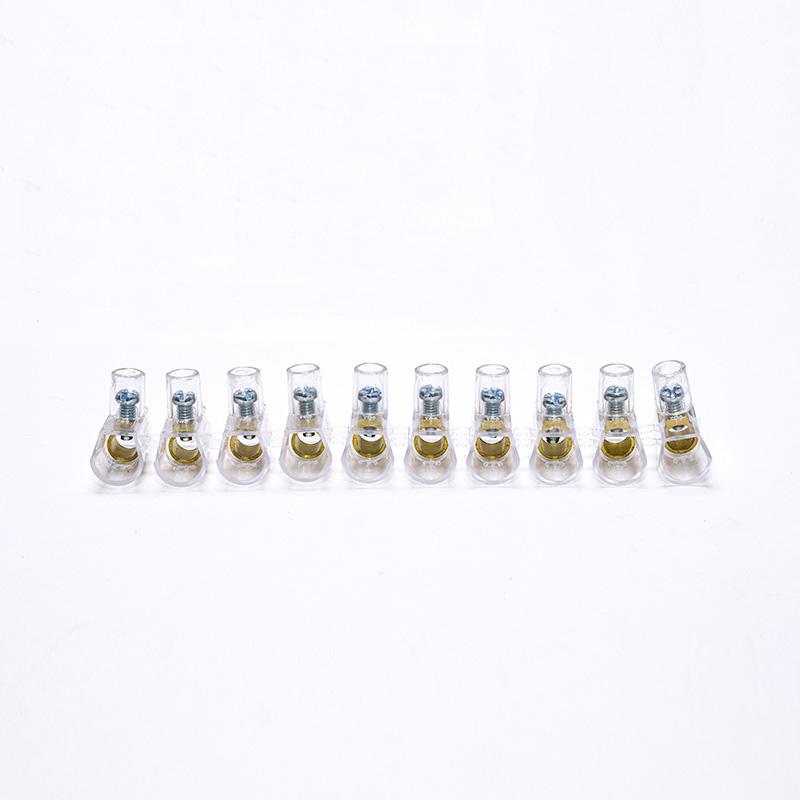

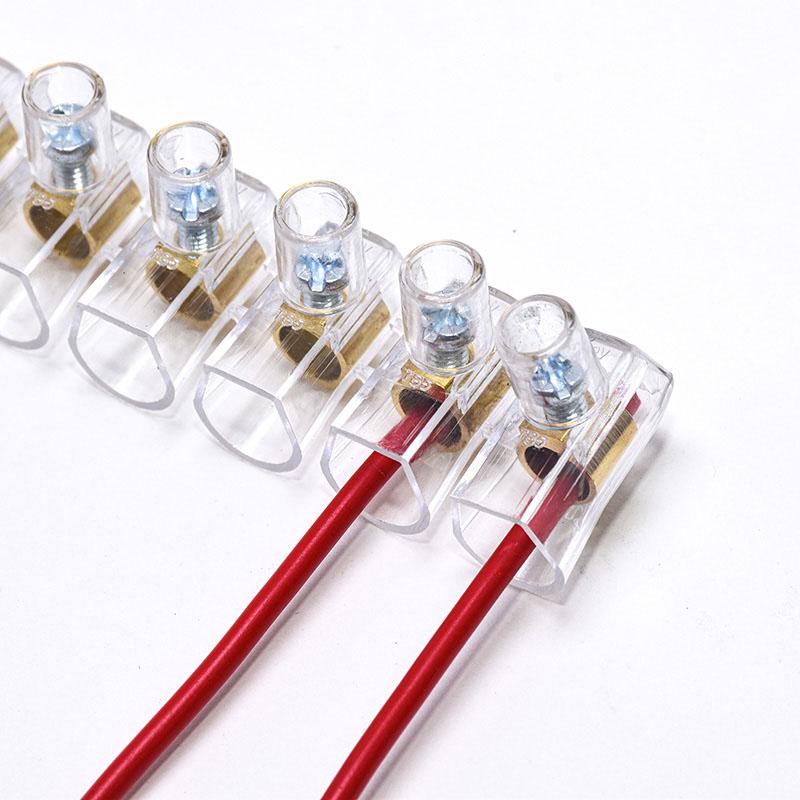

One-Side Entry Transparent Terminal Blocks crafted from high-quality polycarbonate for exceptional clarity and durability.These terminal blocks exhibit a glossy finish and are resistant to flames, impacts, and thermal fluctuations.With anti-pollution properties, they maintain reliability in various environments, operating seamlessly within a temperature range of -35°C to 120°C.Featuring brass, screws with zinc plating, they ensure secure connections.Easily adaptable, these terminal blocks can be snapped to the required number of poles without leaving burrs, eliminating the need for tools.They are supplied with screws in a raised position for effortless installation.



 ItemNo

 MJTB013

 Contact Material

 Brass

 Termination Method

 Screw Down

 Working Temperature

 -35℃ - 120℃

 Material

 Polycarbonate

 Number of Ways

 10

 Inserts

 Brass

 Housing

 Polycarbonate(PC)

 Screws

 Steel,Zinc plated



Advantages of One-Side Entry Transparent Terminal Blocks



1. Thermal Stability: Operates reliably in temperatures from -35°C to 120°C.

2. Anti-Pollution: Maintains performance in challenging environmental conditions.

3. Screw Material: Brass screws with zinc plating for secure electrical connections.

4. Easy Installation: Snap-to-fit design for customizable pole configurations, no tools required.

5. Raised Screw Position: Facilitates convenient installation and maintenance.

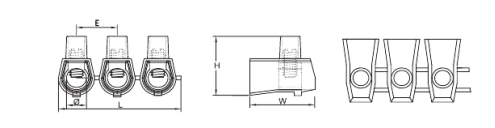

One-Side Entry Transparent Terminal Blocks General Specifications

ItemNo. Wire Range Volt Poles L W H E Ø Screw Size PCS/CTN
mm
MJTB013-01 1.5mm² 500V 10 92 15.3 15.5 9.3 3.3 M3.0 1000
MJTB013-02 2.5mm² 500V 10 100 17.5 17.3 10.1 4 M3.5 1000
MJTB013-03 4.0mm² 500V 10 118 20 18.7 11.95 4.2 M3.5 1000
MJTB013-04 6.0mm² 500V 10 137.9 22.8 22.8 14 6.2 M4.0 1000
MJTB013-05 10mm² 500V 10 167 26.8 26.6 16.9 7.7 M5.0 500
MJTB013-06 16mm² 500V 10 221 30.9 33.5 22.3 10 M8.0 300
MJTB013-07 25mm² 500V 10 243 38.3 41.6 24.5 12 M10.0 100





  • #One-Side Entry Transparent Terminal Blocks

  • #One-Side Entry Terminal Blocks

  • #One-Side Entry  Blocks




Application of One-Side Entry Transparent Terminal Blocks

transparent terminal blocks are ideally suited for a wide range of electrical applications, including Electrical Panels,Industrial Equipment,Automotive,Renewable Energy,Home Appliances,Lighting Systems,Custom Electrical Projects.These terminal blocks offer versatility, durability, and ease of installation, making them an ideal choice for diverse electrical wiring needs across different industries and applications.
