2Pole Screw Connector Transparent Terminal Blocks

2Pole Screw Connector Transparent Terminal Blocks

2Pole Screw Connector Transparent Terminal Blocks are designed for general-purpose wiring applications, The transparent insulator allows for easy internal inspection, ensuring a secure fit.these connectors are built for durability and high performance.



1. Connector Capacity: Suitable for connecting cables.

2. Brass Components: Brass screw and housing for reliable electrical connections.

3. Captive Screws: Ensures secure and stable connections without the risk of screw loss.

2Pole Screw Connector Transparent Terminal Blocks Physical Properties



 ItemNo

 MJTB016

 Contact Material

 Tin Plated Brass

 Termination Method

 Screw Down

 Working Temperature

 -35℃ - 120℃

 Material

 Polycarbonate

 Inserts

 Brass

 Housing

 Polycarbonate(PC)

 Screws

 Steel,Zinc plated



2Pole Screw Connector Transparent Terminal Blocks General Specifications

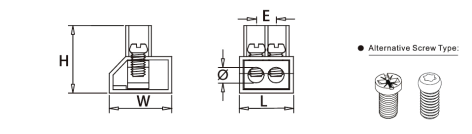

ItemNo. WireRange Volt/Pole L W H E Ø Screw Size PCS/BAGS /CTN Screw Type
mm
MJTB016-01 10mm² 400V/2P 14.6 17 19.1 5.5 4.5 M4.0 2000 Posidriv
MJTB016-02 10mm² 400V/2P 14.6 17 19.1 5.5 4.5 M4.0 2000 Torx



Application of 2Pole Screw Connector Transparent Terminal Blocks

2Pole Screw Connector Transparent Terminal Blocks are versatile and suitable for a range of applications, including,General Wiring,Earth Wiring Termination,Electrical Panels,Lighting Systems,Home Appliances,Automotive,Renewable Energy,Equipotential Bonding, double pole terminal blocks offer a dependable solution for various wiring applications, ensuring safety, durability, and ease of use while providing effective equipotential bonding in diverse environments.
