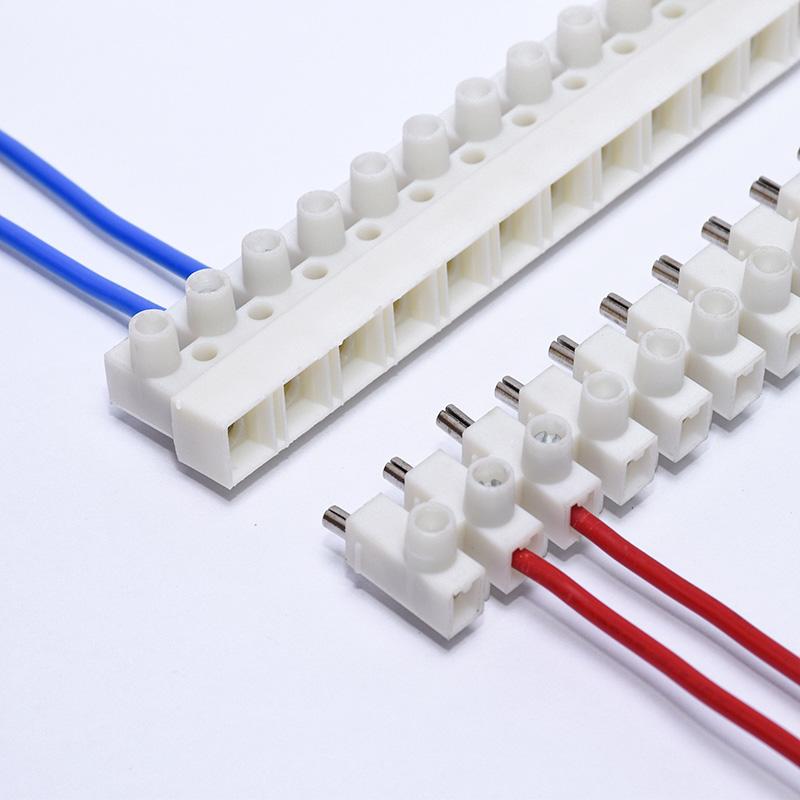

Electrical Plug-in Connector Strips ( Type1 )

Pluggable male-femal Teminal Strips from high-quality materials such as natural PA6, these terminal strips ensure durability and reliable performance.  they meet stringent safety standards.  The terminal strips are available with or without wire protection, and they can be easily cut to size or supplied cut to length upon request.Featuring closed inserts (middle barrier) options and captive terminal screws, these terminal strips are perfect for secure and efficient connections.    ItemNo  MJTB011-01-04  Contact Material  Brass  Termination Method  Screw Down  Glow Wire Test  850 ℃  Material  Polyamide6  Number of Ways  12  Inserts  Brass  Housing  Polyamide6(PA6)  Screws  Steel,Zinc plated

Pluggable Wire Connectors Terminal Strips Constructed from materials  PA6,these terminal strips deliver exceptional durability and performance. the terminal strips can be easily cut to the desired size or provided pre-cut to length upon request.  Featuring captive terminal screws and middle barrier inserts, these terminal strips guarantee secure and efficient connections.    ItemNo  MJTB011-10  Contact Material  Brass  Termination Method  Screw Down  Glow Wire Test  850 ℃  Material  Polyamide6  Number of Ways  12  Inserts  Brass  Housing  Polyamide6(PA6)  Screws  Steel,Zinc plated

Single&Double Screw Transparent Terminal Blocks are designed for general-purpose wiring applications, providing a reliable and insulated mechanical connection for cables. These connectors ensure the safe termination of unused and exposed Earth wiring ends. The transparent insulator allows for easy internal inspection, ensuring a secure fit. Constructed with a heat-resistant polycarbonate shell and featuring brass screws and housing, these connectors are built for durability and high performance.  they come with captive screws for secure and stable connections.    ItemNo  MJTB014-015  Contact Material  Brass  Termination Method  Screw Down  Working Temperature  -35℃ - 120℃  Material  Polycarbonate  Inserts  Brass  Housing  Polycarbonate(PC)  Screws  Steel,Zinc plated

 Wire Protection Brass With Stainless Spring Terminal Strip shares many similarities in body and clamp design with others on the market. However, its standout feature lies in the integration of a steel plate within the clamp mechanism. This innovative design ensures that when tightening the conductor screw, the pressure is evenly distributed and does not compromise the integrity of the conductor's structure.    ItemNo  MJTB002-01-05  Contact Material  Brass(Nickled) With Stainless Spring  Termination Method  Screw Down  Glow Wire Test  850 ℃  Material  Polypropylene Housing  Number of Ways  12  Inserts  Brass  Housing  Polypropylene (PP)  Screws  Steel,Zinc plated

The Earth Connector with DIN Rail H-Type Holder Terminal Blocks is a crucial component for grounding and electrical connection systems. these terminal blocks ensure secure and efficient grounding connections, providing enhanced safety and performance in various electrical installations.   1.High-Quality Materials: Constructed from durable and high-conductivity materials such as brass and stainless steel, ensuring long-lasting performance. 2.Insulated Housing: The terminal blocks come with an insulated housing, typically made from polyamide or a similar high-quality plastic, to ensure safety and durability. 3.DIN Rail Mounting: The H-Type Holder design allows for easy and secure mounting on standard DIN rails, facilitating organized and efficient installations. 4.Excellent Conductivity: High-conductivity materials ensure efficient electrical grounding. 5.Easy Installation: Designed for quick and hassle-free installation on DIN rails, saving time and effort.

H Type PE Electrical Choc Terminal Strip Crafted with heat-resistant polythene insulation, these terminal blocks withstand up to 65°C. Each terminal block features 24 connection screws, simplifying wiring setups for various projects. the terminal strip are ideal for various basic electrical installation tasks.This terminal block has the advantages of being lightweight and rigid, with resistance to corrosion and high tensile strength. It also features raised screw down terminals for ease of wiring.      ItemNo  MJTB001-01-09  Contact Material  Brass  Termination Method  Screw Down  Working Temperature  -40℃ - 65℃  Material  Polyethylene Housing  Number of Ways  12  Inserts  Brass  Housing  Polyethylene (PE)  Screws  Steel,Zinc plated

U Type 12-Position Wire Connector Terminal Strip ensures secure connections with brass contacts and screw clamps. Each terminal block is crafted with brass conductor inserts and features zinc plated screws for reliable conductivity and durability.    ItemNo  MJTB003-01-09  Contact Material  Brass  Termination Method  Screw Down  Working Temperature  -40℃ - 65℃  Material  Polyethylene Housing  Number of Ways  12  Inserts  Brass  Housing  Polyethylene (PE)  Screws  Steel,Zinc plated

The PCT compact splicing connector is designed for fast and reliable wiring solutions. Made from premium PA6 insulating material, it ensures long-term durability with resistance to high temperatures, corrosion, and aging. Ideal for both professionals and DIY users, this connector replaces traditional methods, simplifying wiring with a safe and secure connection.it accommodates various applications like ceiling fans, switches, and automotive wiring.
