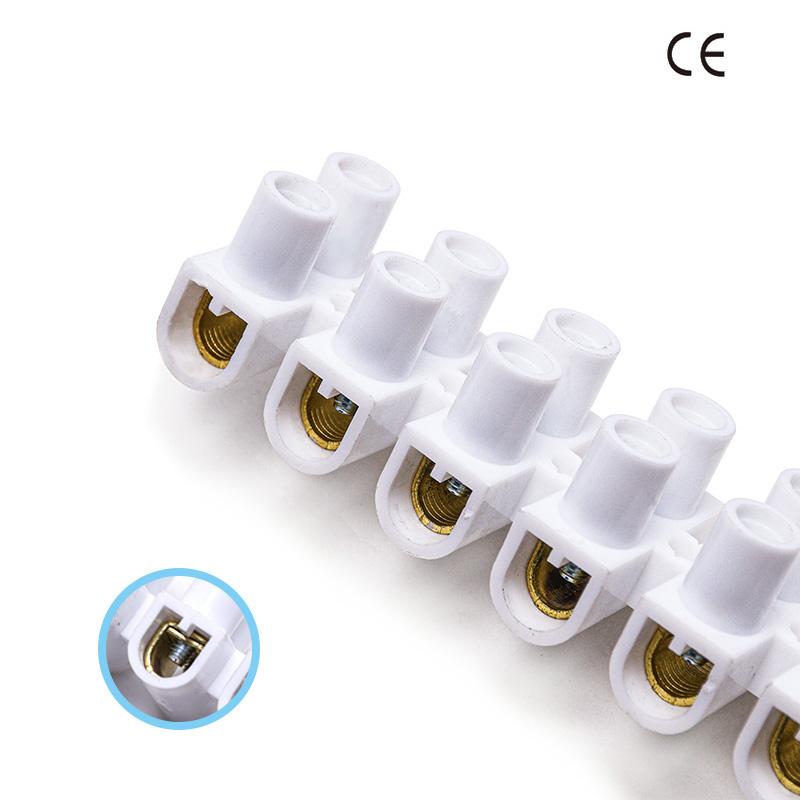

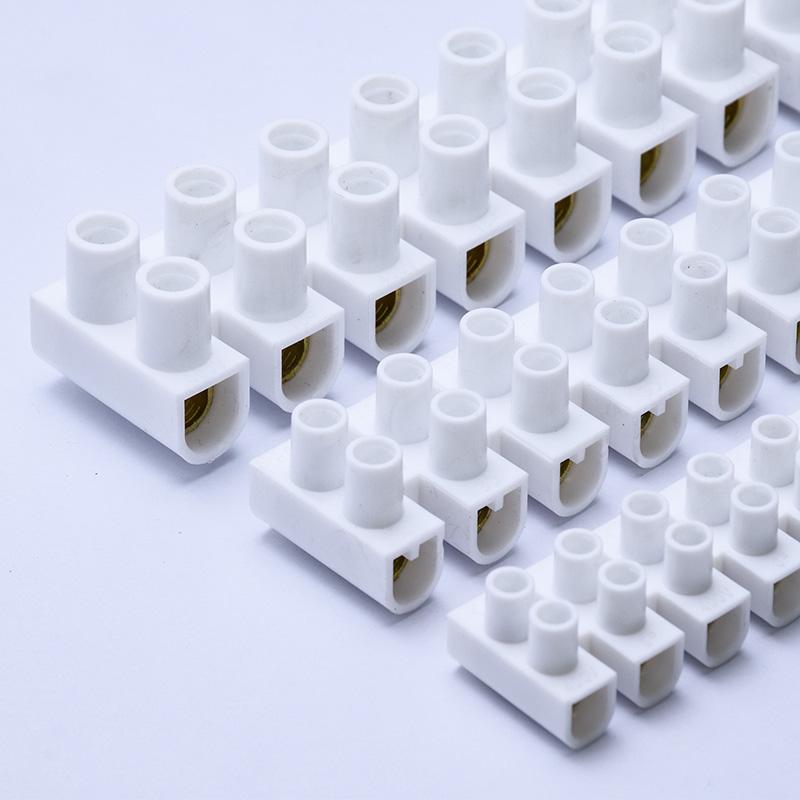

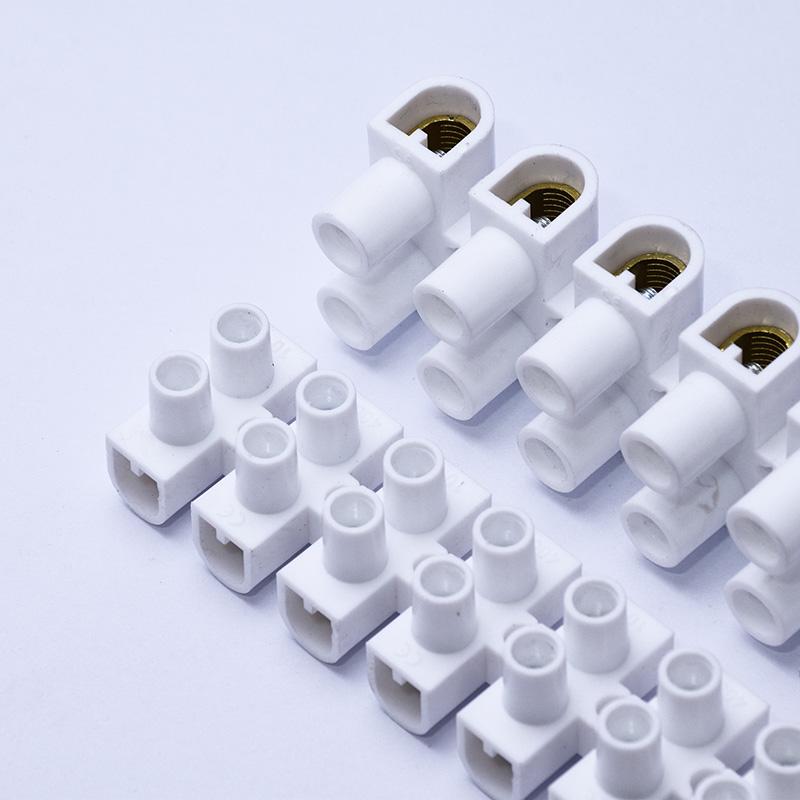

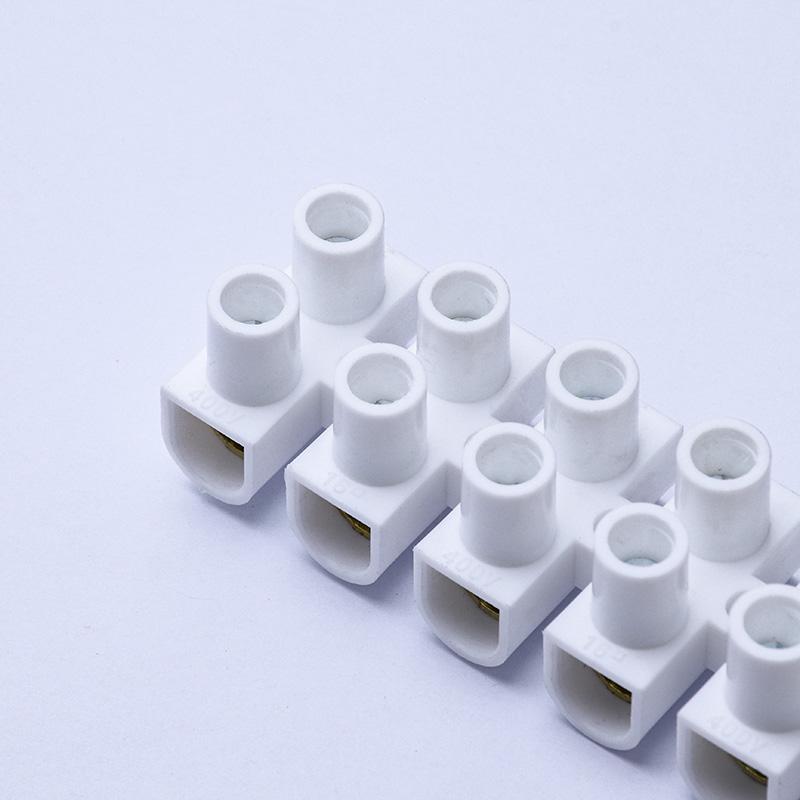

U Type PP Wire Connector Screw Terminal Strip

U Type PP Wire Connector Screw Terminal Strip

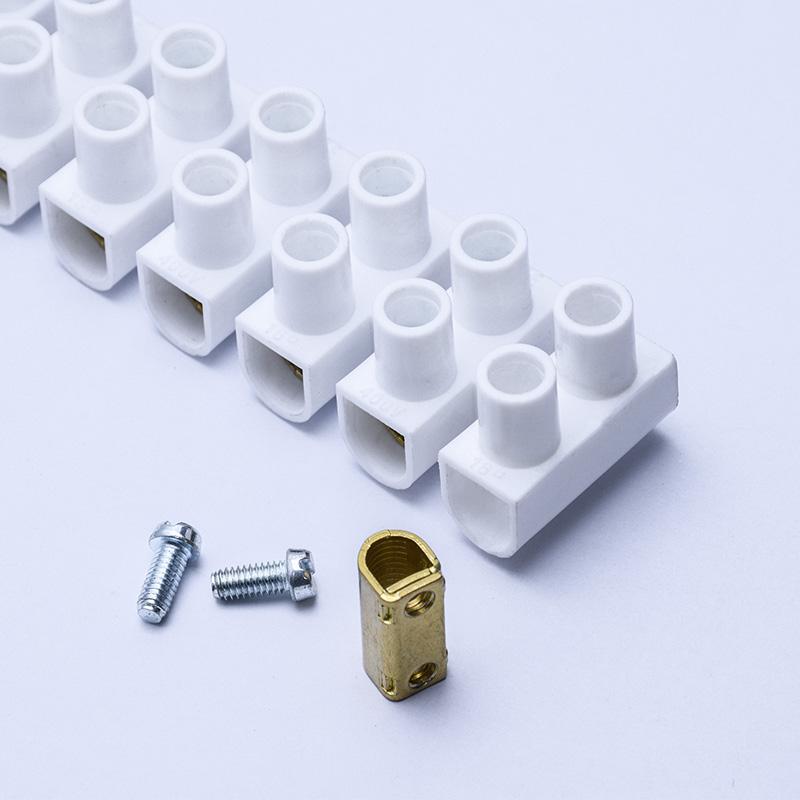

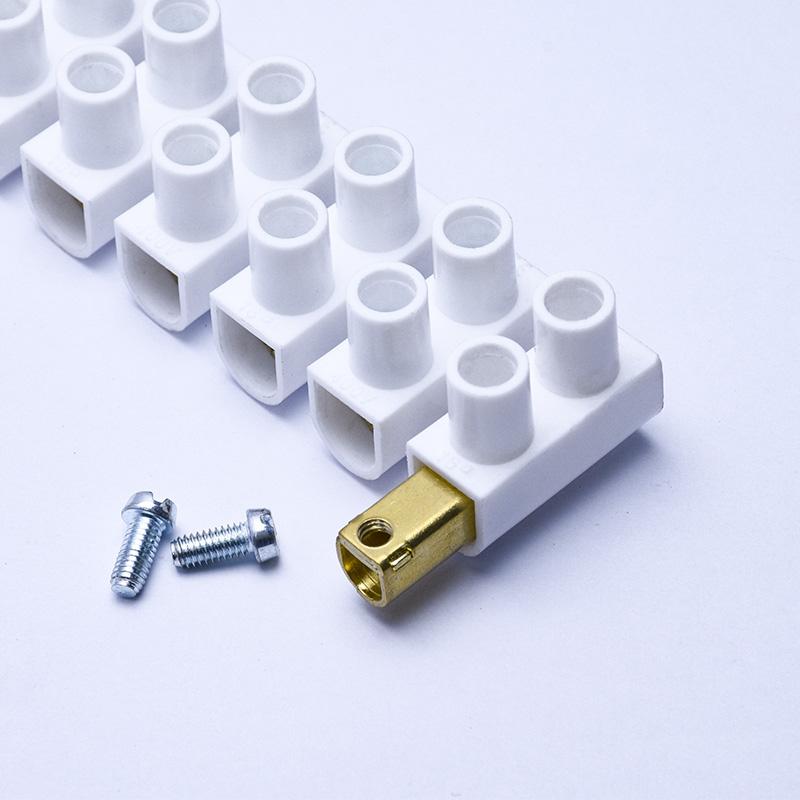

U Type PP Wire Connector Screw Terminal Strip is designed for exceptional performance and durability.   It features high elasticity, hightemperature resistance, high-pressure resistance, and impact resistance.The conductive part is made from overheated brass, ensuring high conductivity and durability, while the external PP polypropylene protective plastic offers a tough, and oxidation-resistant casing.  The internal brass firmware and fastening galvanized screw provide superior conductive performance and excellent insulation.



 ItemNo

 MJTB003-40-44

 Contact Material

 Steel,Zinc or Brass Plated

 Termination Method

 Screw Down

 Glow Wire Test

 850℃

 Material

 Polypropylene Housing

 Number of Ways

 12

 Inserts

 Brass

 Housing

 Polypropylene (PP)

 Screws

 Steel,Zinc plated

Advantages of U Type PP Wire Connector Screw Terminal Strip



1. High-Quality Brass Conductors: Provides superior electrical conductivity and reliability.

2. User-Friendly Design: Loosen the screw, insert the wire into the conductor hole, and then tighten the screw to secure it firmly.

3. Safety Precautions: Always disconnect power before wiring. Do not exceed the rated voltage or current during use.

4. Versatile Applications: Ideal for various wiring and grounding tasks.



terminal block 12 pin

Application of U Type PP Wire Connector Screw Terminal Strip







U Type PP Wire Connector Screw Terminal Strip Widely used in a variety of lamps, factories, household appliances, and power distribution cabinets, distribution boxes, and other transmission equipment, especially pointing at the wire, cable access, and out.

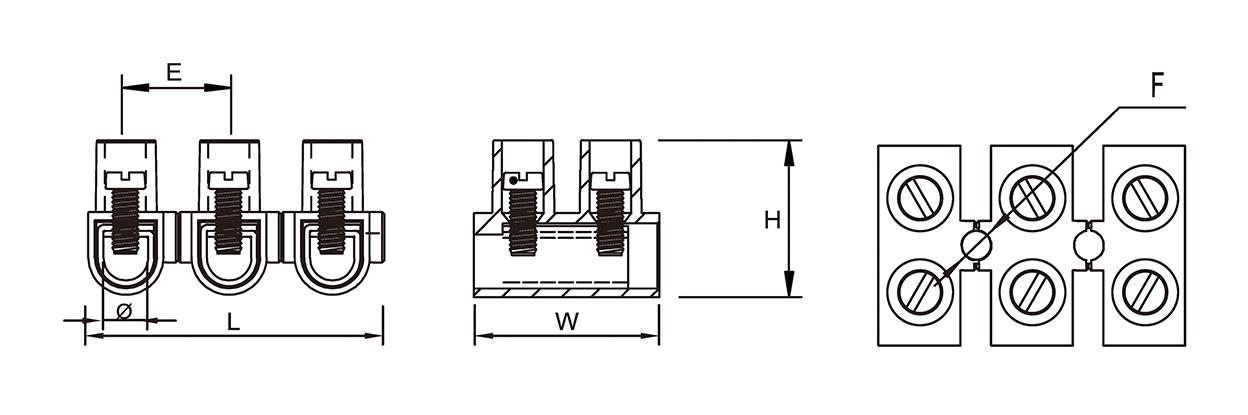

U Type PP Wire Connector Screw Terminal Strip General Specifications

Item No. WireRange Volt L W H E F Ø Screw Size PCS/CTN
mm
MJTB003-40 1.5mm² 400v 95.3  16.9  11.7  8.2  2.2  2.9  M2.5 1000
MJTB003-41 4.0mm² 400v 109.6  17.9  13.5  9.1  2.5  3.1  M3.0 1000
MJTB003-42 6.0mm² 400v 128.6  20.7  15.8  11.0  2.9  4.0  M3.0 500
MJTB003-43 10.0mm² 400v 164.0  24.6  19.9  14.0  3.7  5.1  M4.0 300
MJTB003-44 16mm² 400v 187.6  28.3  24.0  16.0  4.2  6.5  M4.0 200



  • #terminal block 4 pin

  • #2 pin screw terminal block connector

  • #terminal block 12 pin




Send A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

U Type  Terminal Strip
U Type 12-Position Wire Connector Terminal Strip

U Type 12-Position Wire Connector Terminal Strip ensures secure connections with brass contacts and screw clamps. Each terminal block is crafted with brass conductor inserts and features zinc plated screws for reliable conductivity and durability.    ItemNo  MJTB003-01-09  Contact Material  Brass  Termination Method  Screw Down  Working Temperature  -40℃ - 65℃  Material  Polyethylene Housing  Number of Ways  12  Inserts  Brass  Housing  Polyethylene (PE)  Screws  Steel,Zinc plated

Details
Wire Protection Fused Terminal Block Strip
Wire Protection Brass With Stainless Spring Terminal Strip

 Wire Protection Brass With Stainless Spring Terminal Strip shares many similarities in body and clamp design with others on the market. However, its standout feature lies in the integration of a steel plate within the clamp mechanism. This innovative design ensures that when tightening the conductor screw, the pressure is evenly distributed and does not compromise the integrity of the conductor's structure.    ItemNo  MJTB002-01-05  Contact Material  Brass(Nickled) With Stainless Spring  Termination Method  Screw Down  Glow Wire Test  850 ℃  Material  Polypropylene Housing  Number of Ways  12  Inserts  Brass  Housing  Polypropylene (PP)  Screws  Steel,Zinc plated

Details
Terminal Connector Strip

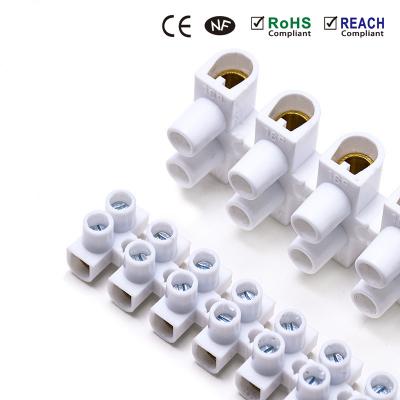

U Type Electrical Cable White Terminal Strip
