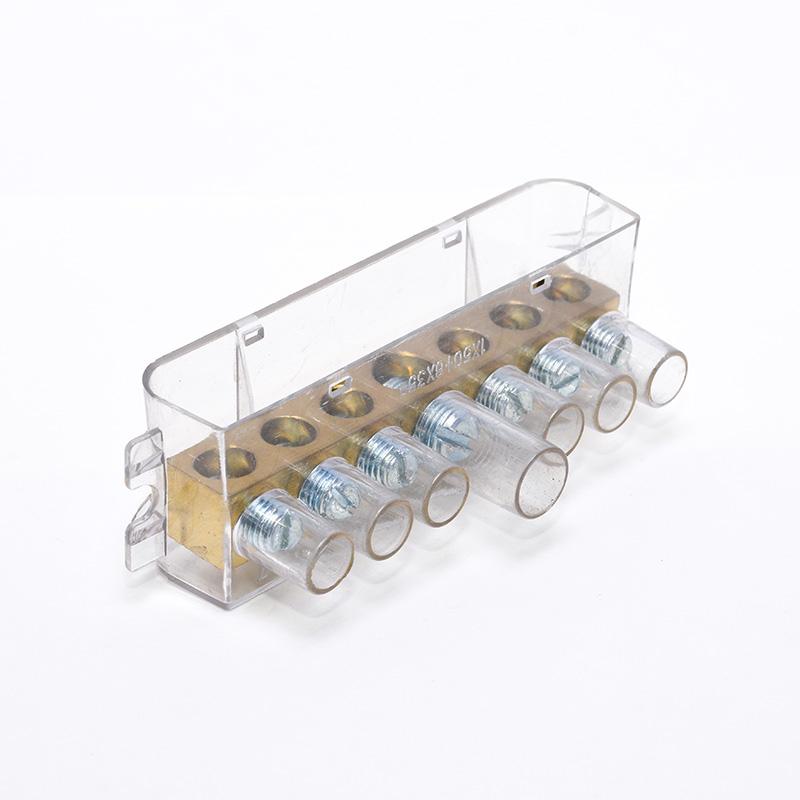

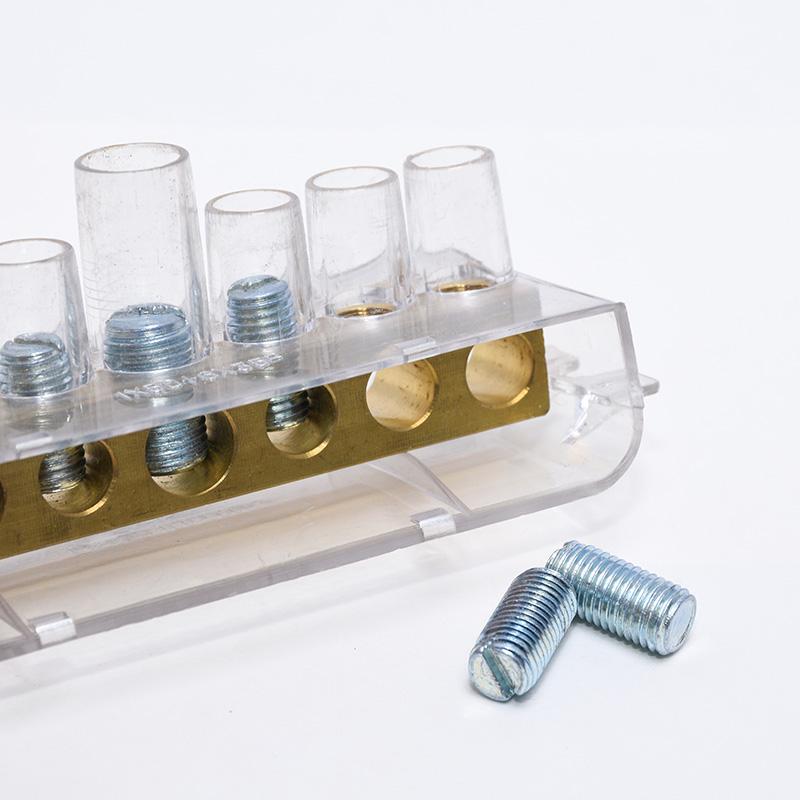

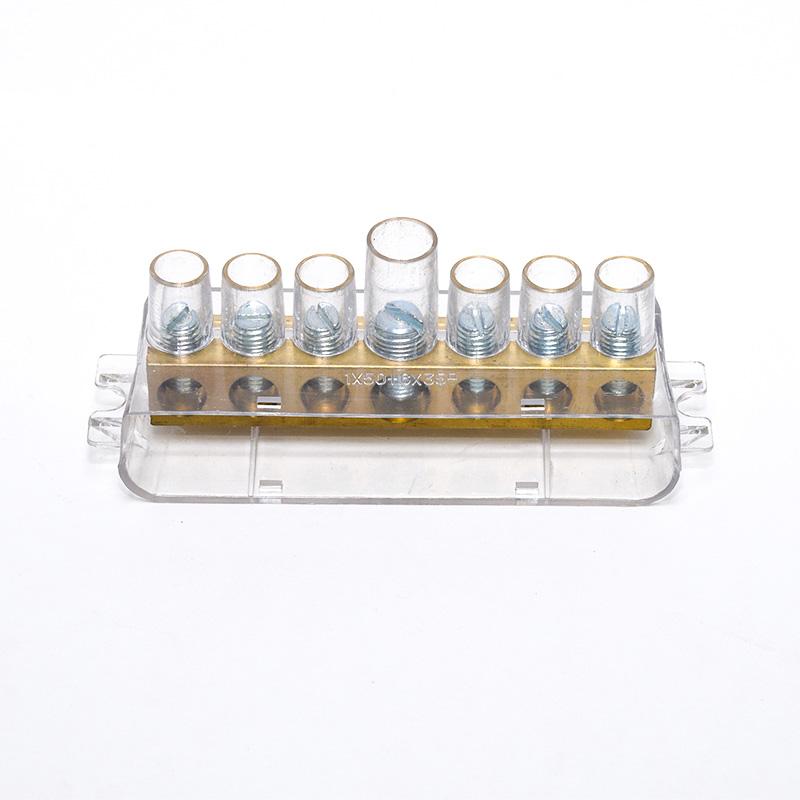

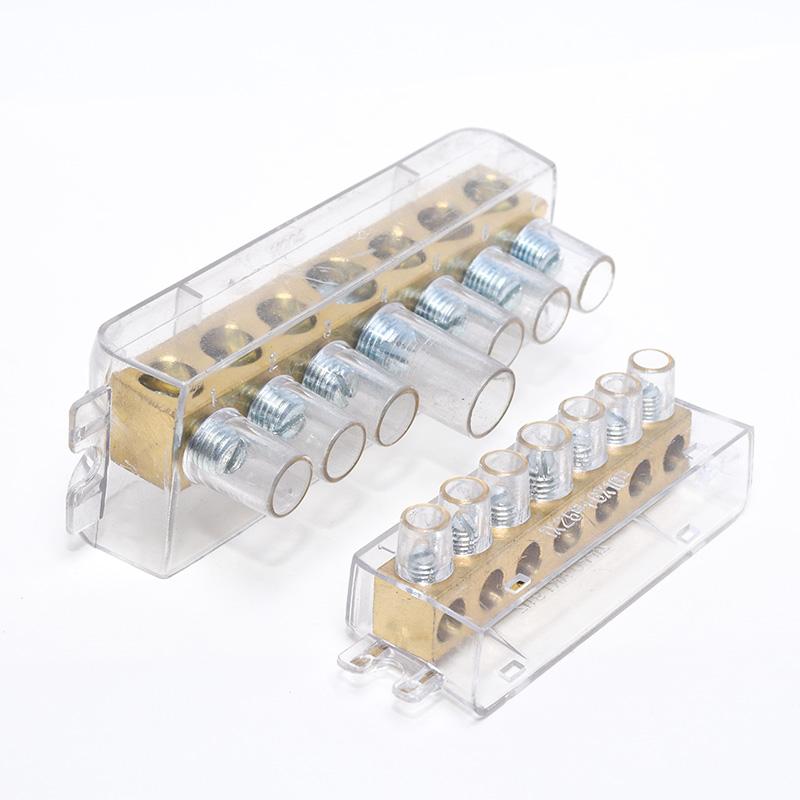

PC Transparent Insulative Brass Bar Terminal Connector

PC Transparent Insulative Brass Bar Terminal Connector

PC Insulative Brass Bar Terminal Connector are providing reliable power distribution for various applications.  These blocks suit your specific needs.these blocks facilitate easy wire insertion.  Constructed with high-quality polycarbonate (PC) for excellent pliability, transparency, and resistance to solvents and radiation, these blocks are built to last. They maintain stable connections over time, ensuring long-term reliability.



 ItemNo

 MJTB036

 Contact Material

 Brass

 Termination Method

 Screw Down

 Working Temperature

 -35℃ - 120℃

 Material

 Polycarbonate

 Inserts

 Brass

 Housing

 Polycarbonate(PC)

 Screws

 Steel,Zinc plated

Advantages of PC Transparent Insulative Brass Bar Terminal Connector



1. Multiple Configurations: fit various requirements.

2. Easy Wire Entry: entry holes for facilitated wire insertion.

3. High-Quality Material: Made from polycarbonate (PC) for flexibility, transparency, and durability.

4. Stable Connections: Ensures excellent stability of the connections over time.

  • #PC Transparent Insulative Brass Bar Terminal Connector

  • #PC Transparent Terminal Connector

  • #Transparent Terminal Connector

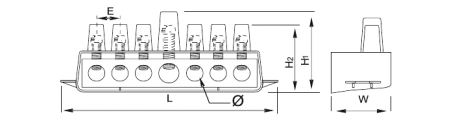

PC Transparent Insulative Brass Bar Terminal Connector General Specifications

ItemNo. Spec L H1 H2 W E Ø Screw Size PCS/CTN
hole qty x dia mm
SP036-01 4X162 53.6 21 21 22.5 9 5.1 M5.0 100
SP036-02 1×25²+6×16² 84.5 24.2 24.2 25.5 9 6 M5.0 80
SP036-03 1×15²+6×35² 109 42 33.8 34.2 12.6 8.3 M8.0 50



Application of PC Transparent Insulative Brass Bar Terminal Connector

PC Transparent Insulative Brass Bar Terminal Connector are versatile and suitable for a wide range of applications, including Power Distribution,Electrical Panels,HVAC Systems,Renewable Energy Systems,Automotive,Lighting Installations,General Wiring,Industrial Equipment ;These bipolar distribution blocks offer a robust and reliable solution for a variety of power distribution needs, ensuring secure and stable electrical connections across multiple applications.
