Wire Protection Brass With Stainless Spring Terminal Strip

Wire Protection Brass With Stainless Spring Terminal Strip

 Wire Protection Brass With Stainless Spring Terminal Strip shares many similarities in body and clamp design with others on the market. However, its standout feature lies in the integration of a steel plate within the clamp mechanism. This innovative design ensures that when tightening the conductor screw, the pressure is evenly distributed and does not compromise the integrity of the conductor's structure.



 ItemNo

 MJTB002-01-05

 Contact Material

 Brass(Nickled) With Stainless Spring

 Termination Method

 Screw Down

 Glow Wire Test

 850

 Material

 Polypropylene Housing

 Number of Ways

 12

 Inserts

 Brass

 Housing

 Polypropylene (PP)

 Screws

 Steel,Zinc plated

Advantages of Wire Protection Brass With Stainless Spring Terminal Strip



1. Steel Plate Integration: Includes a steel plate inside the clamp to prevent damage to the conductor during screw tightening.

2. Enhanced Stability: Provides greater stability for the connected system, particularly under periodic forces that could otherwise cause the conductor to detach.

3. Versatile Use: Ideal for applications where temporary wire disconnection may occur or where consistent clamp control is challenging over extended periods.

4. Durable Construction: Designed to withstand the rigors of industrial environments, ensuring reliability and longevity.



Wire Protection Terminal Strip General Specifications

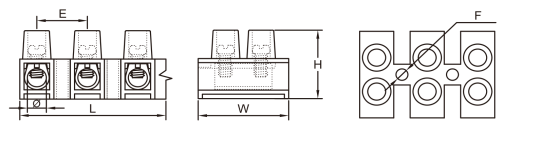

Item No. Wire Range Volt L W H E F Ø Screw Size PCS/CTN
mm
MJTB002-01 2.5mm² 450V 94.1  17.9  12.5  7.8  2.6  2.8  M2.5 1000
MJTB002-02 4.0mm² 450V 117.2  20.1  14.2  9.8  3.5  3.5  M3.0 1000
MJTB002-03 6.0mm² 450V 140.7  23.1  16.8  12.0  4.0  4.2  M3.5 500
MJTB002-04 16mm² 600V 170.5  27.1  21.5  14.5  4.5  6.0  M4.0 300
MJTB002-05 25mm² 600V 201.0  36.3  27.0  16.9  4.5  7.6  M5.0 200





screw clamp terminal

Application of Wire Protection Brass With Stainless Spring Terminal Strip







Wire Protection Terminal Strip For wire-to-wire connections in HVAC, appliance, equipment,power distribution and other industrial applications with strict budget and space requirements.

  • #electrical terminal block for lighting

  • #screw type terminal blocks

  • #screwless terminal block
