Terminal Grounding Strip Earthing Brass Bar

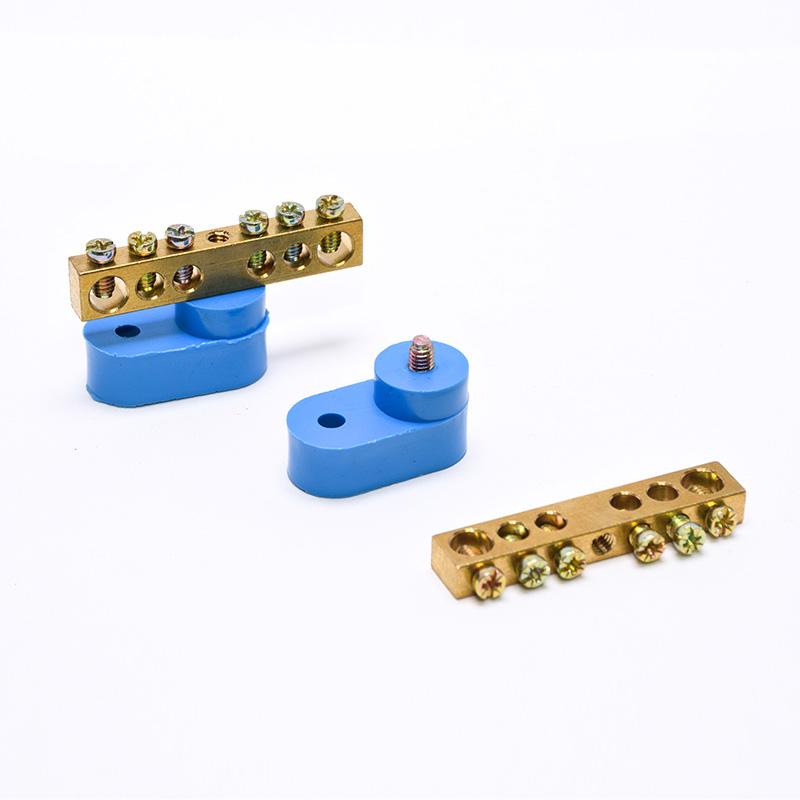

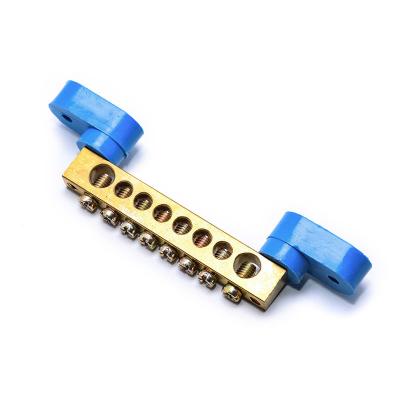

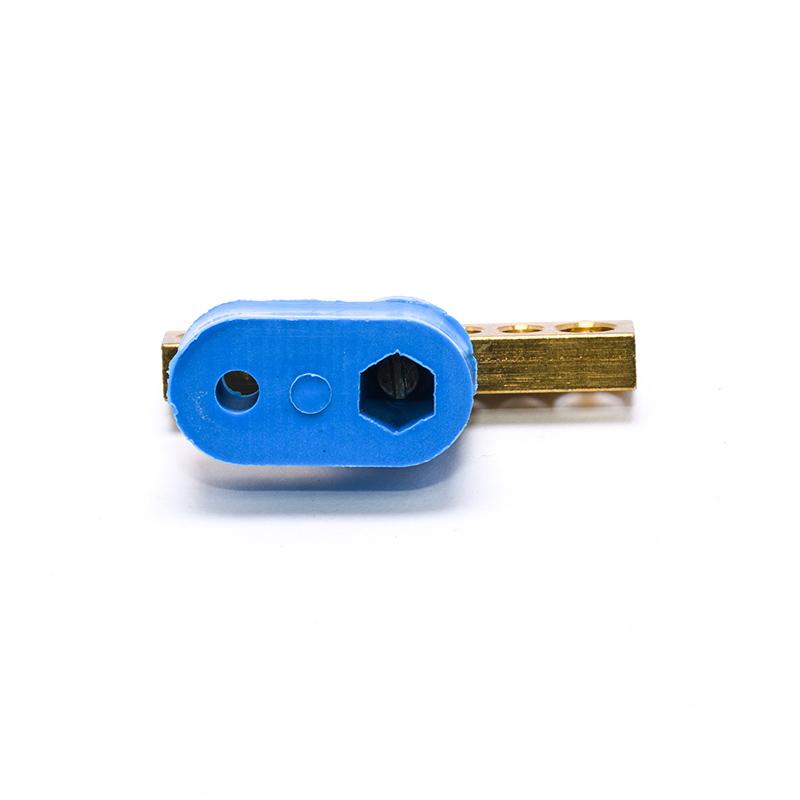

This Earthing Terminal Brass Bar With 1 or 2 Round Holders features 1 or 2 round holders, designed for a wide range of applications requiring secure and reliable connections. Known for its excellent conductivity and durability, the brass bar ensures efficient performance in various electrical and mechanical setups.    ItemNo  MJTB028-01-22  Contact Material  Brass  Termination Method  Screw Down  Round Holders  1,2  Screws  Steel,Zinc plated

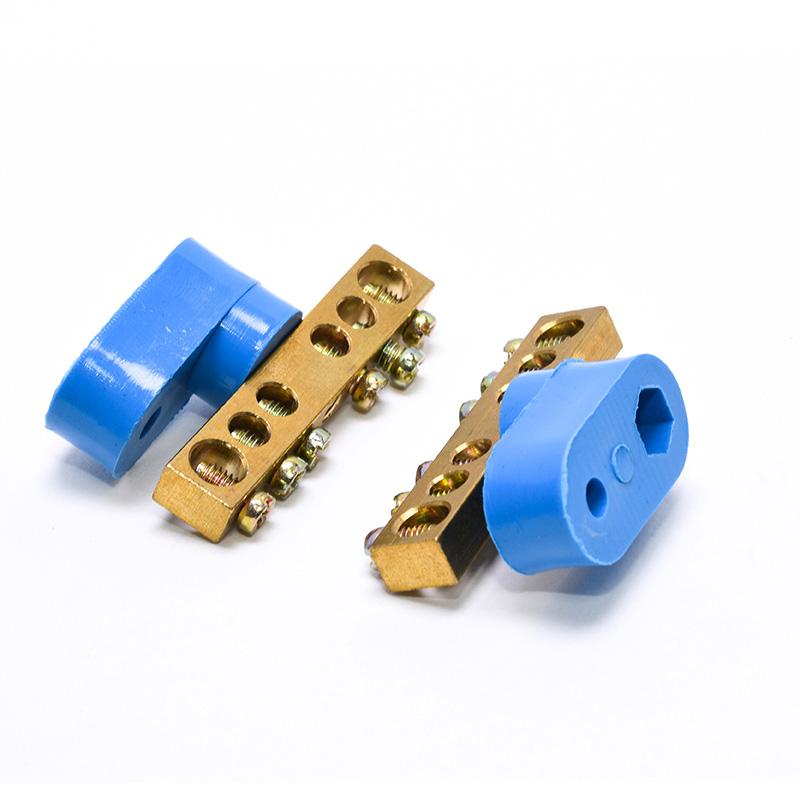

Earthing Terminal  With 1 or 2 Square Holders Brass Bar are crafted from durable brass material, ensuring longevity and robustness,this earthing terminalBrass bar helps to tidy up messy wiring and streamline electrical setups.    ItemNo  MJTB029  Contact Material  Brass  Termination Method  Screw Down  Square Holders  1,2  Screws  Steel,Zinc plated

Two Line Copper Terminal Ground Bar Screw Block  is a terminal connector, for wiring or grounding function.Other dimensions can be made as requested.   1.High-Quality Copper: Made from premium copper, offering excellent electrical. 2.Two-Line Configuration: The two-line design allows for multiple connections, providing flexibility in organizing and managing wiring. 3.Two-Line Configuration: The two-line design allows for multiple connections, providing flexibility in organizing and managing wiring.

The difference between this Terminal Strip and Dul Row Terminal Strip Connector is that the PA Terminal Strip With Wire Protector have CE,VDE,ROHS,REACH Certifications.It is also designed for industrial applications, especially where enhanced connection durability and increased resistance to weather conditions are essential.    ItemNo  MJTBV-01-05  Contact Material  Brass  Termination Method  Screw Down  Glow Wire Test  850 ℃  Ambient Temperature  T110℃  Number of Ways  12  Inserts  Brass  Housing  Polyamide6 (PA6)  Screws  Steel,Zinc plated

12 Way Bakelite Connector Black Terminal Strip for safe, durable, and efficient electrical connections. It is a robust and reliable component designed for a variety of electrical applications.   Made from Bakelite, a thermosetting plastic known for its excellent insulating properties and high mechanical strength, this terminal strip ensures secure and efficient electrical connections.   1.Material and Construction: Made of high-quality Bakelite, providing excellent insulation and mechanical strength. 2.Non-Flammable: The Bakelite material is non-flammable, enhancing safety in electrical installations. 3.Easy Installation: Designed for quick and hassle-free installation, reducing setup time.

U Type PP Wire Connector Screw Terminal Strip is designed for exceptional performance and durability.   It features high elasticity, hightemperature resistance, high-pressure resistance, and impact resistance.The conductive part is made from overheated brass, ensuring high conductivity and durability, while the external PP polypropylene protective plastic offers a tough, and oxidation-resistant casing.  The internal brass firmware and fastening galvanized screw provide superior conductive performance and excellent insulation.    ItemNo  MJTB003-40-44  Contact Material  Steel,Zinc or Brass Plated  Termination Method  Screw Down  Glow Wire Test  850℃  Material  Polypropylene Housing  Number of Ways  12  Inserts  Brass  Housing  Polypropylene (PP)  Screws  Steel,Zinc plated

Distributor Busbar Intersystem Bonding Termination Block is mounted adjacent to the meter base or service entrance equipment and a convenient way to interconnect and terminate grounding conductors from telephone, CATV or radio and television antennas.  it includes corrosion-resistant, stainless steel mounting hardware and is easily accessible for connection and inspection.  The polymeric base and housing is impactresistant, UV-stabilized.Connects to grounding electrode conductor – does not rely on meter base enclosure bonding connection.    ItemNo  MJTB034  Contact Material  Brass  Termination Method  Screw Down  Working Temperature  -40℃ - 110℃  Material  Polyamide Housing  Inserts  Brass  Screws  Steel,Zinc plated

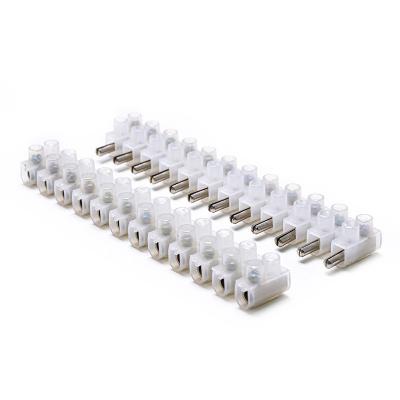

H Type Steel Insert Terminal Strip U shaped contacts permit easy wire insertion.Metal parts feature steel screws and zinc-plated steel contacts with or without brass strips.Recessed screws and tubular contacts provide added safety and help prevent short circuits.    1.Flame-Retardant Housing: H Type Steel Terminal Strip Made from polyamide6 with a flame-retardant rating, ensuring enhanced safety. 2.Durable Contacts: Equipped with zinc-plated steel contacts, available with or without brass strips for reliable conductivity. 3.Enhanced Safety: Recessed screws and tubular contacts provide added safety and help prevent short circuits. 4.Customizable Design: Featuring 12 poles that can be cut into the desired number of poles to suit various applications.
