Single&Double Screw Transparent Terminal Blocks

Single&Double Screw Transparent Terminal Blocks

Single&Double Screw Transparent Terminal Blocks are designed for general-purpose wiring applications, providing a reliable and insulated mechanical connection for cables. These connectors ensure the safe termination of unused and exposed Earth wiring ends. The transparent insulator allows for easy internal inspection, ensuring a secure fit. Constructed with a heat-resistant polycarbonate shell and featuring brass screws and housing, these connectors are built for durability and high performance.  they come with captive screws for secure and stable connections.



 ItemNo

 MJTB014-015

 Contact Material

 Brass

 Termination Method

 Screw Down

 Working Temperature

 -35℃ - 120℃

 Material

 Polycarbonate

 Inserts

 Brass

 Housing

 Polycarbonate(PC)

 Screws

 Steel,Zinc plated

Advantages of Single&Double Screw Transparent Terminal Blocks



1. Insulation: Heat-resistant polycarbonate shell for durability and safety.

2. Transparency: Transparent insulator for easy inspection and verification of secure connections.

3. Brass Components: Brass screw and housing for reliable electrical connections.

4. Captive Screws: Ensures secure and stable connections without the risk of screw loss.

5. Current Rating: Rated for 32 amps, suitable for various electrical applications.

  • #Single&Double Screw Transparent Terminal Blocks

  • #Screw Transparent Terminal Blocks

  • #Transparent Terminal Blocks

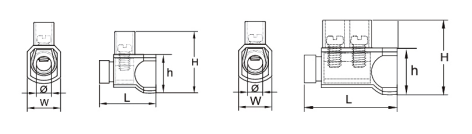

Single&Double Screw Transparent Terminal Blocks General Specifications



ItemNo. WireRange Amp Volt L W H E Ø Screw Size PCS/BAGS /CTN PCS/JARS /CTN
mm
MJTB014-01 2x6mm² 32A 450V 20 12 22.5 14 5.7 M4.0 5000 2500
MJTB015-01 2×6mm² 32A 450V 27 12 22.5 14 5.7 M4.0 2000 1250



Application of Single&Double Screw Transparent Terminal Blocks

Single&Double Screw Transparent Terminal Blocks are versatile and suitable for a range of applications, including:

     · General Wiring: Ideal for general-purpose wiring tasks in residential, commercial, and industrial settings.

     · Earth Wiring Termination: Provides safe and secure termination of unused and exposed Earth wiring ends.

     · Electrical Panels: Suitable for use in electrical distribution panels, ensuring reliable connections.

     · Lighting Systems: Perfect for connecting and terminating cables in lighting installations.

     · Home Appliances: Ensures secure wiring connections in household appliances.

     · Automotive: Suitable for automotive wiring applications, providing reliable connections.

· Renewable Energy: Ideal for use in solar and wind power systems, ensuring secure cable connections.
