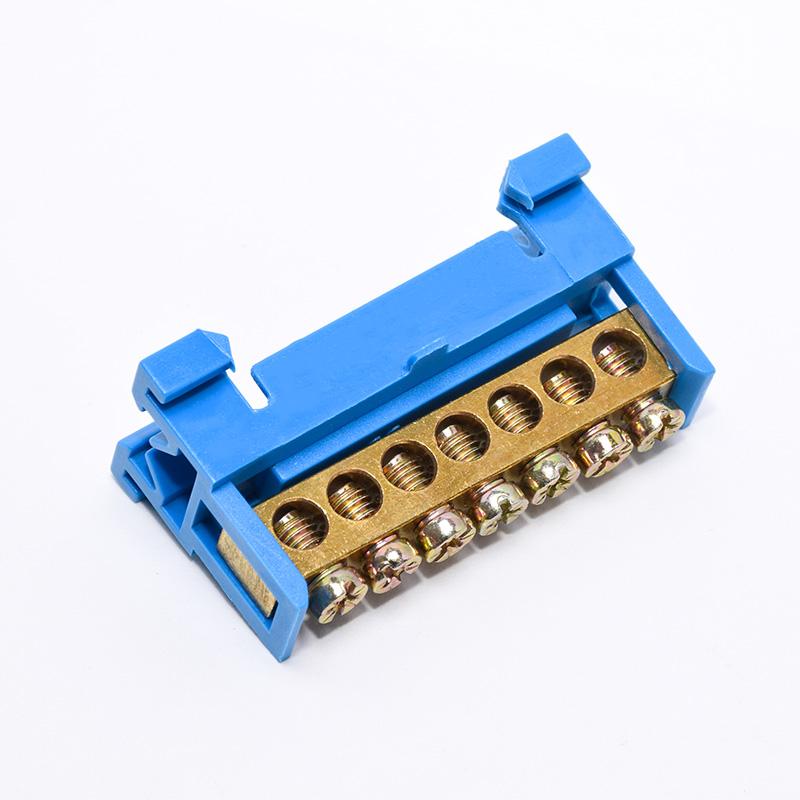

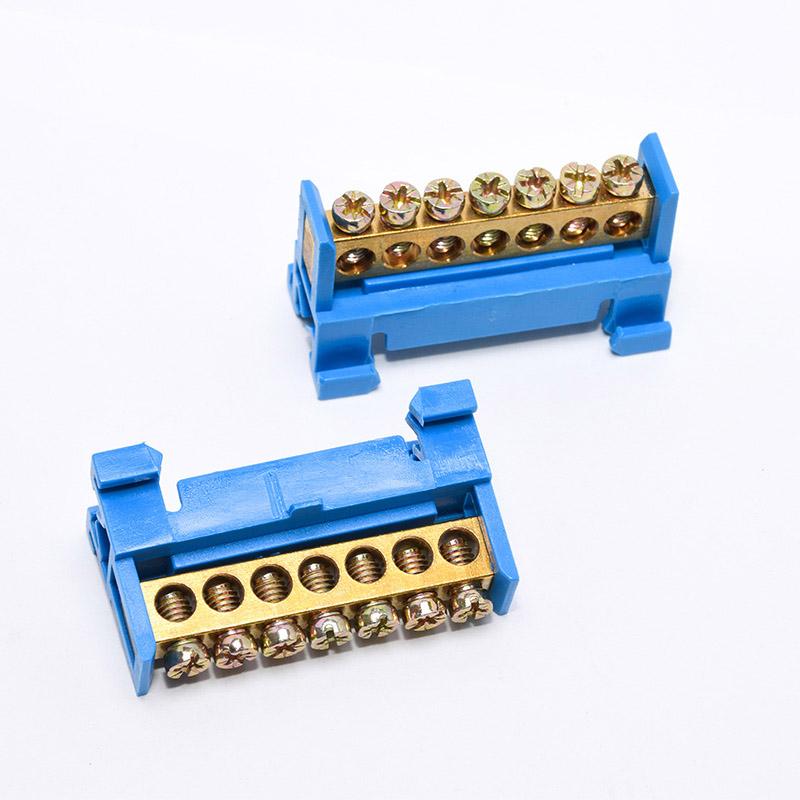

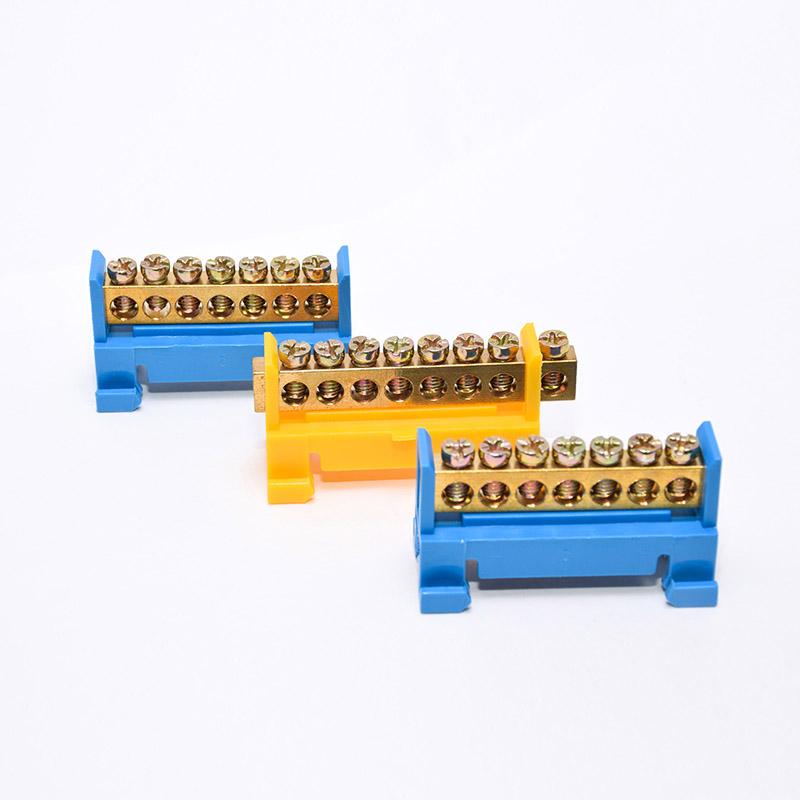

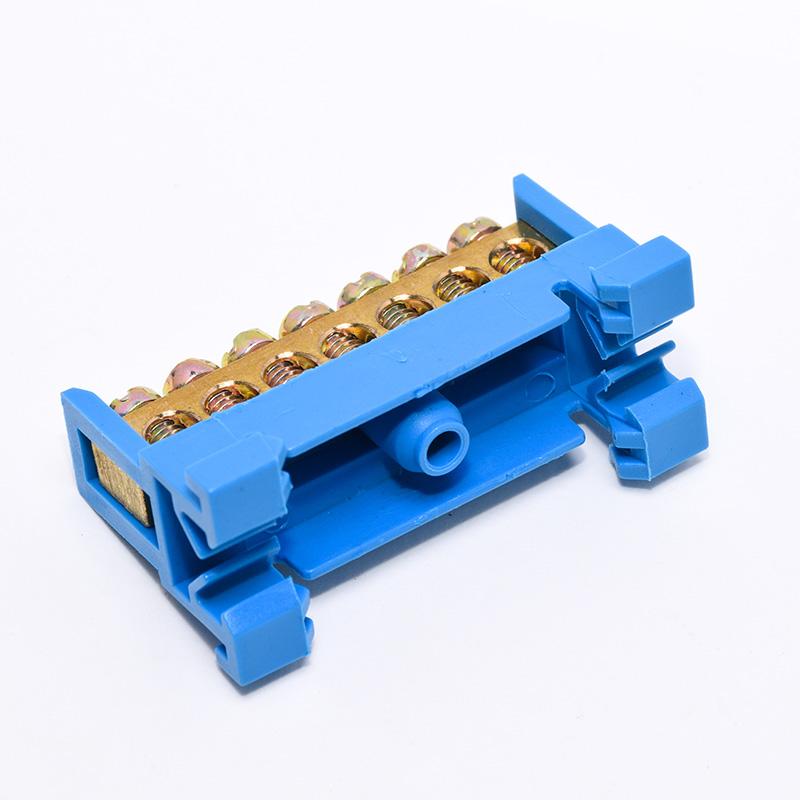

Earth Connector with Din Rail H Type Holder Terminal Blocks

Earth Connector with Din Rail H Type Holder Terminal Blocks

The Earth Connector with DIN Rail H-Type Holder Terminal Blocks is a crucial component for grounding and electrical connection systems. these terminal blocks ensure secure and efficient grounding connections, providing enhanced safety and performance in various electrical installations.



1.High-Quality Materials: Constructed from durable and high-conductivity materials such as brass and stainless steel, ensuring long-lasting performance.

2.Insulated Housing: The terminal blocks come with an insulated housing, typically made from polyamide or a similar high-quality plastic, to ensure safety and durability.

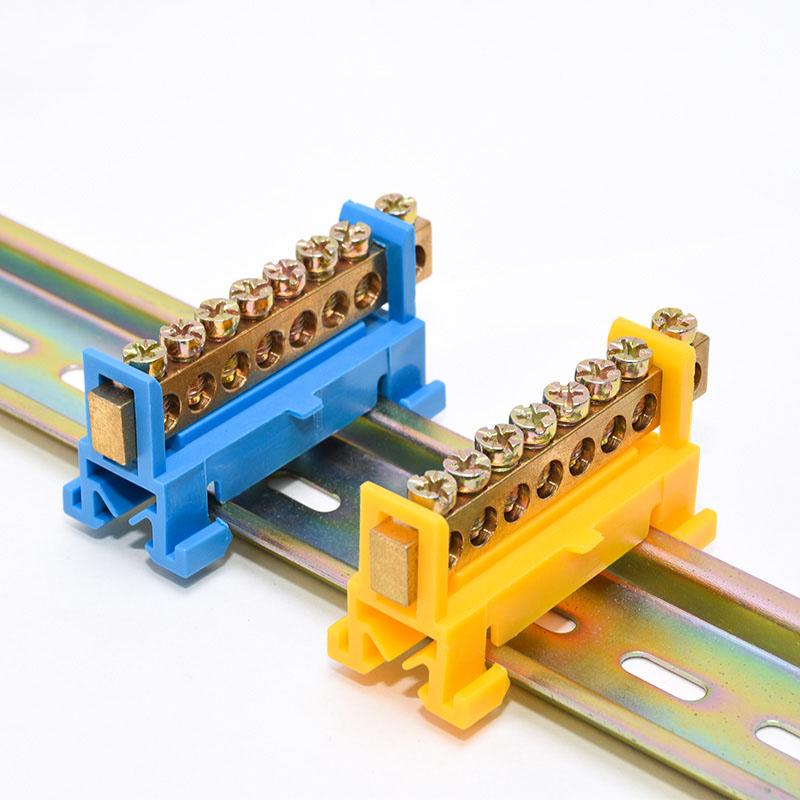

3.DIN Rail Mounting: The H-Type Holder design allows for easy and secure mounting on standard DIN rails, facilitating organized and efficient installations.

4.Excellent Conductivity: High-conductivity materials ensure efficient electrical grounding.

5.Easy Installation: Designed for quick and hassle-free installation on DIN rails, saving time and effort.

Earth Connector with Din Rail H Type Holder Terminal Blocks Physical Properties

 ItemNo

 MJTB030

 Contact Material

 Brass

 Termination Method

 Screw Down

 Material

 Polyamide Housing

 Inserts

 Brass

 Housing

 Polyamide (PA)

 Screws

 Steel,Zinc plated



Earth Connector with Din Rail H Type Holder Terminal Blocks General Specifications

Earth Connector with Din Rail H Type Holder Terminal Blocks

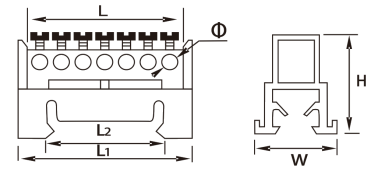

ItemNo. Brass w x h Holes L L1 L2 H W Ø Screw Size PCS/CTN
mm mm
MJTB030-01 6x9 7 51 51 35 28 21 5.2 M5.0 700
MJTB030-02 6×9 8 60 51 35 28 21 5.2 M5.0 700
MJTB030-03 6×9 10 72.5 51 35 28 21 5.2 M5.0 400
MJTB030-04 6×9 12 85 51 35 28 21 5.2 M5.0 400
MJTB030-05 6×9 15 104.5 51 35 28 21 5.2 M5.0 250
  • #Brass Bar With Din Rail Holders

  • #Din Rail Holders Brass Bar

  • #Din Rail Holders


Application of Earth Connector with Din Rail H Type Holder Terminal Blocks

This terminal grounding strip block is versatile and widely used in various settings, including:

     · Power Vehicles: Ideal for power distribution in electric vehicles.

     · Marine Applications: Suitable for use in ship and marine ground power distribution.

· Industrial Use: Perfect for power distribution cabinets and mechanical equipment in factories.

· Electrical Appliance Manufacturing: Used in electrical appliance factories for secure grounding connections.
