Din Rail-Mounted Busbar Terminal Block

Din Rail-Mounted Busbar Terminal Block

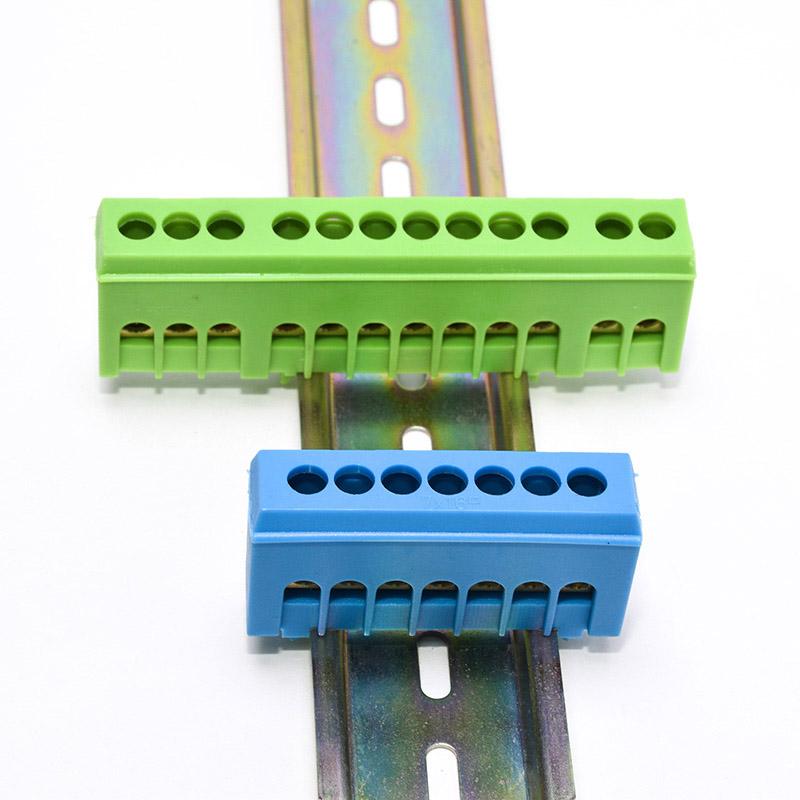

DIN Rail-Mounted Busbar Terminal Block is designed for efficient and organized electrical connections in various industrial and commercial applications. Its robust construction and secure mounting system ensure reliable performance and ease of installation.



 ItemNo

 MJTB032

 Contact Material

 Brass

 Termination Method

 Screw Down

 Material

 Polyamide66 Housing

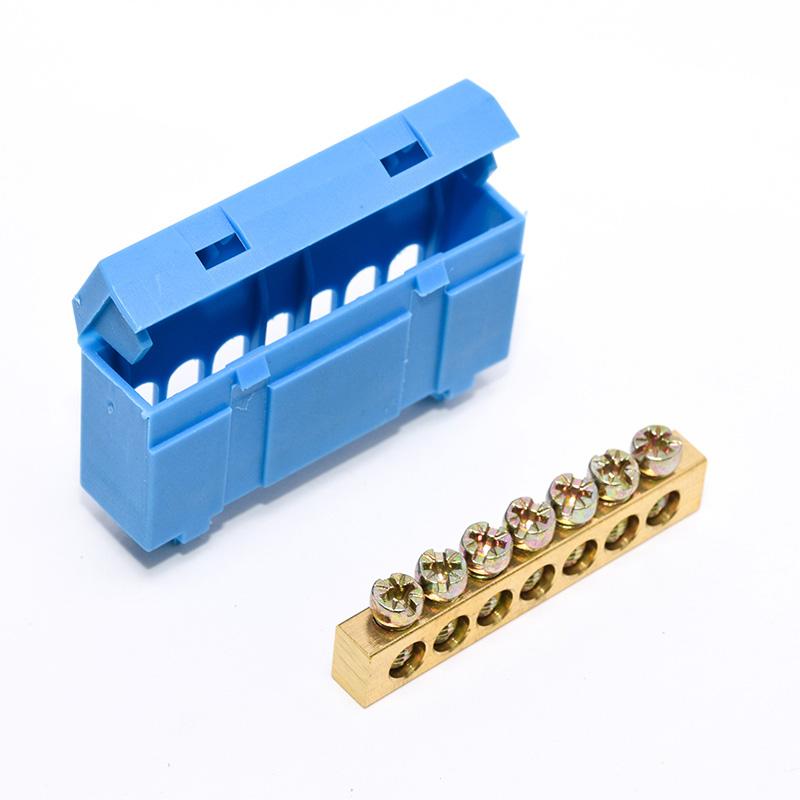

 Inserts

 Brass

 Housing

 Polyamide66 (PA66)

 Screws

 Steel,Zinc plated

Advantages of Din Rail-Mounted Busbar Terminal Block

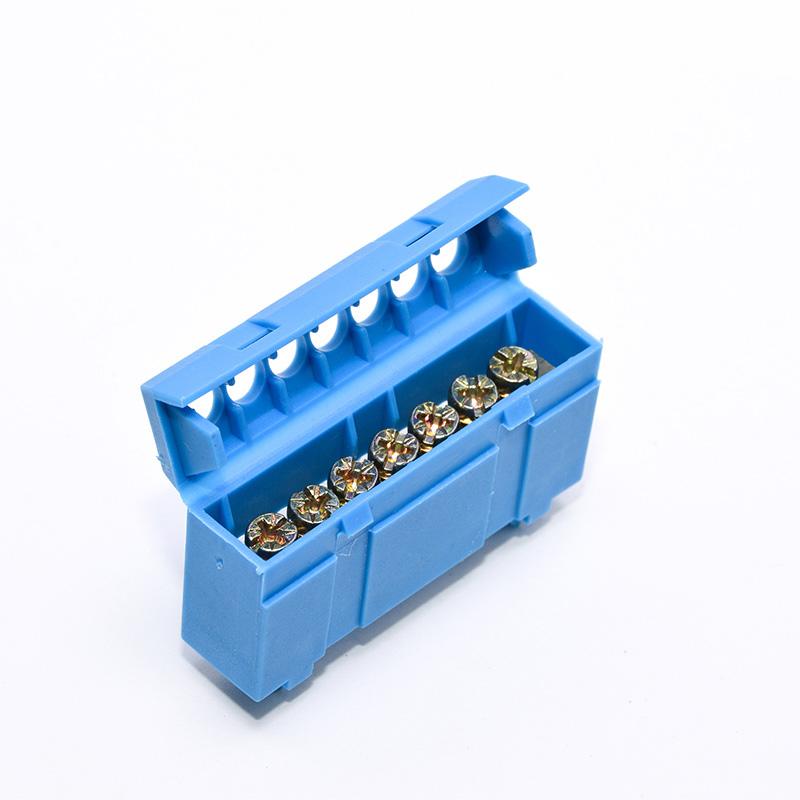

1. Safety Features: Provides inherent protection against accidental contact.

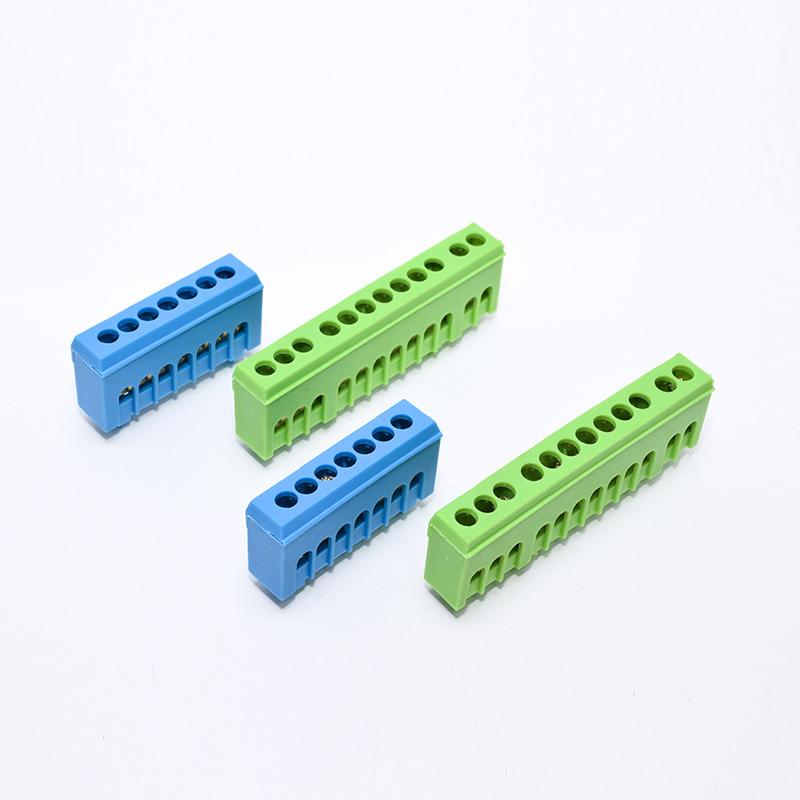

2. Color Options: Available in grey,green and blue to match different wiring schemes.

3. Regulatory Compliance: regulations for safety and performance.

  • #Din Rail-Mounted Busbar Terminal Block

  • #Din Rail Busbar Terminal Block

  • #Din Rail Terminal Block


Din Rail-Mounted Busbar Terminal Block General Specifications

Din Rail-Mounted Busbar Terminal Block

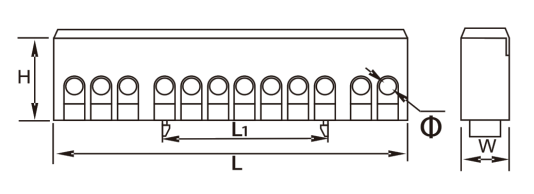

ItemNo Brass w x h Holes L L1 H W Ø Screw Size PCS/CTN
mm mm
MJTB032-01 6×9 7 53 35.5 26.3 13 5.2 M5.0 400
MJTB032-02 6×9 12 88 35.5 26.3 13 5.2 M5.0 400
MJTB032-03 6x9 15 108 35.5 26.3 13 5.2 M5.0 400



Application of Din Rail-Mounted Busbar Terminal Block

· Electrical Panels: Ideal for expanding phase or neutral connections within electrical panels.

· Distribution Control Units: Functions as an equipotential node for collecting and managing the earth system.

· Phase or Neutral Expansion: Enhances the flexibility and organization of wiring in complex electrical setups.

This partition rail assembly is designed to provide robust, reliable, and compliant solutions for managing electrical connections, ensuring safety and efficiency in electrical distribution systems.
