Din Rail PC Electrical Distribution Brass Bars Box Blocks

Din Rail PC Electrical Distribution Brass Bars Box Blocks

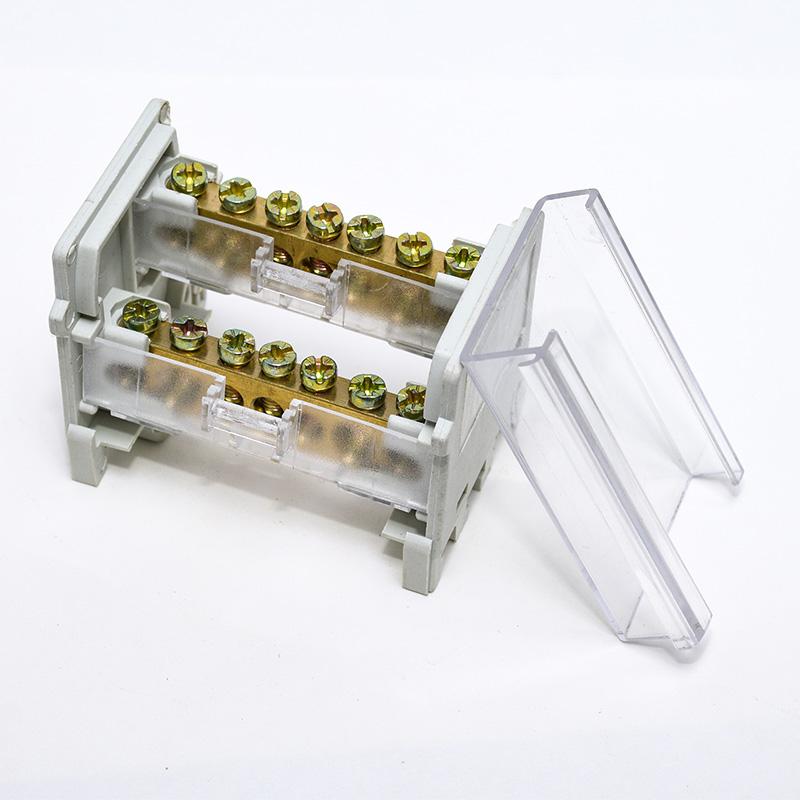

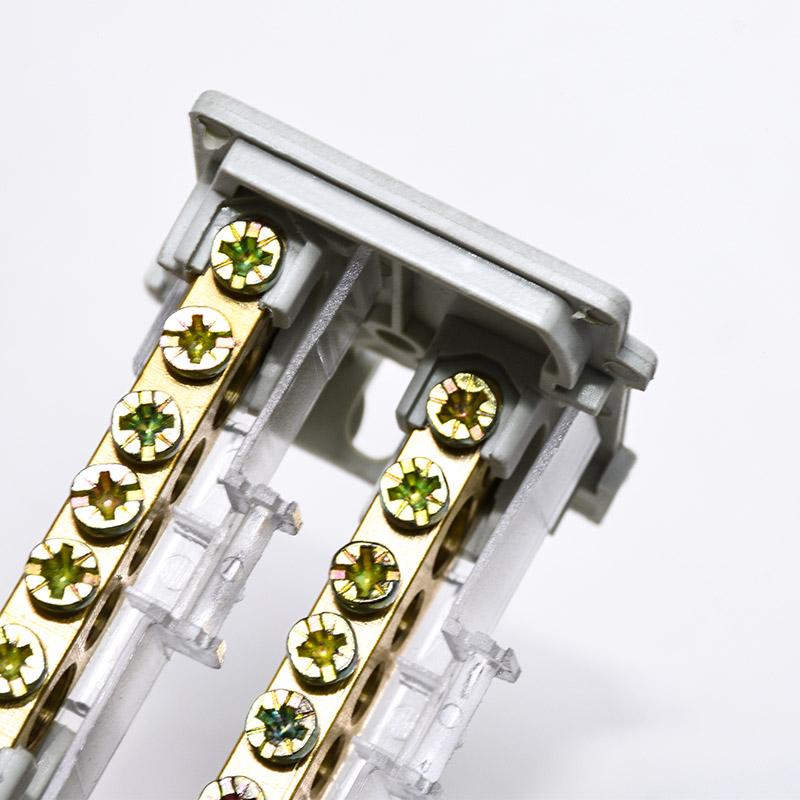

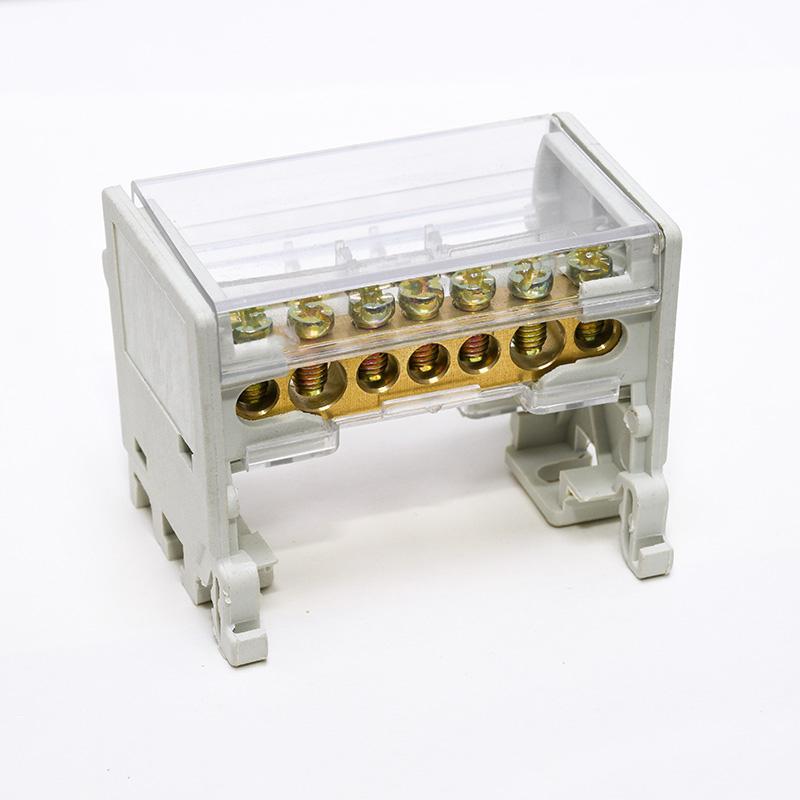

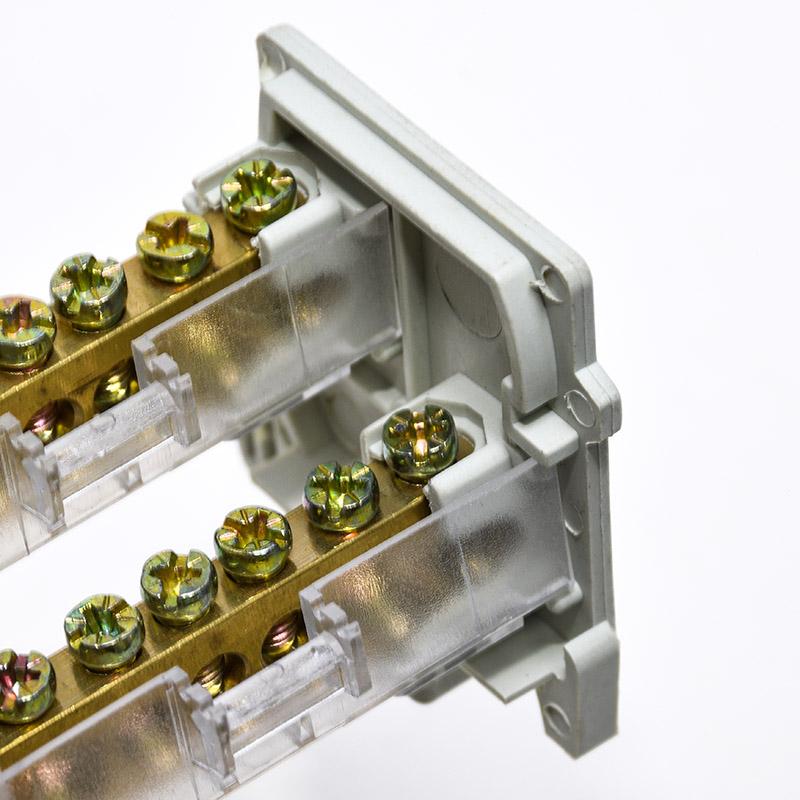

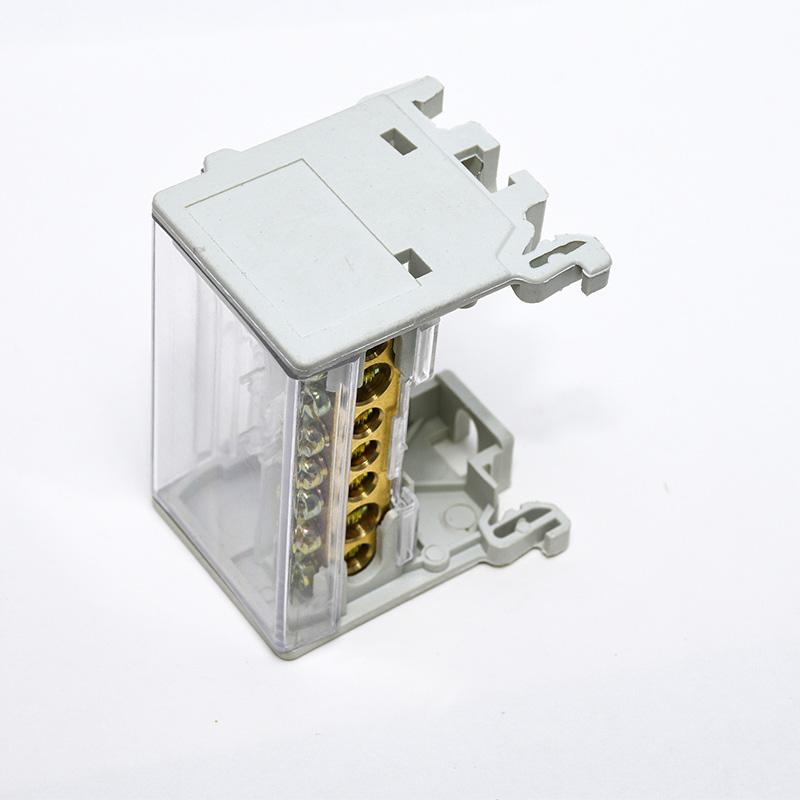

Din Rail PC Electrical Distribution Brass Bars Box Blocks are designed for efficient and reliable electrical distribution. These terminal blocks offer simple installation and feature an insulating screen for each conductor bar, ensuring safety and ease of use. The power holes are specially staggered to simplify wiring. They are equipped with galvanized steel screws with a combined cut for secure and stable connections.



 ItemNo

 MJTB037

 Contact Material

 Brass

 Termination Method

 Screw Down

 Working Temperature

 -35℃ - 120

 Material

 Polycarbonate Housing

 Inserts

 Brass

 Screws

 Steel,Zinc plated

Characteristics of Din Rail PC Electrical Distribution Brass Bars Box Blocks



1.High-Quality Brass Bars: Ensures superior electrical conductivity and low resistance for efficient power distribution.

2.PC Housing: The polycarbonate housing provides excellent durability, impact resistance, and safety. It's also flame-retardant, enhancing overall protection.

3.DIN Rail Mounting: Easily mounts onto standard DIN rails, facilitating quick and secure installation.

4.Modular Structure: Modular design allows for flexible and expandable configurations, meeting diverse electrical distribution needs.

5.Flame Retardant: Meets safety standards for fire resistance, enhancing protection in critical environments.

6.Quick Installation: Designed for easy and fast installation on DIN rails, reducing setup time and labor costs.



Din Rail PC Electrical Distribution Brass Bars Box Blocks General Specifications

Din Rail PC Electrical Distribution Brass Bars Box Blocks

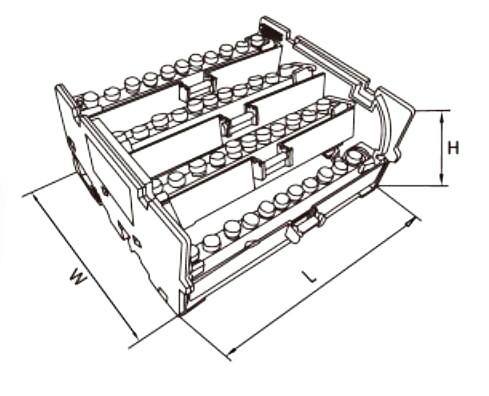

ItemNo. Brass w x h Holes Pole L H W PCS/CTN
mm mm
MJTB037-01 6.5×12 7 2 65.5 50 46.5 100
MJTB037-02 6.5×12 7 4 66 50 86 80
MJTB037-03 6.5×12 11 4 102.5 50 86 50
  • #Distribution Terminal Blocks

  • #Din Rail Distribution Brass Bars Box Blocks

  • #Din Rail Brass Bars Box Blocks


Application of Din Rail PC Electrical Distribution Brass Bars Box Blocks

· Industrial Electrical Systems: Suitable for complex industrial setups requiring reliable power distribution.

· Power Distribution Panels: Ensures organized and efficient wiring in power distribution panels.

· Control Panels: Provides safe and secure connections in control panels.

· Electrical Installations: Suitable for a wide range of electrical installations, offering high performance and reliability.

These terminal blocks are engineered to provide dependable connections and efficient power distribution in various industrial and electrical applications.





Send A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

DIN Rail H Type Holder Terminal Blocks
Earth Connector with Din Rail H Type Holder Terminal Blocks

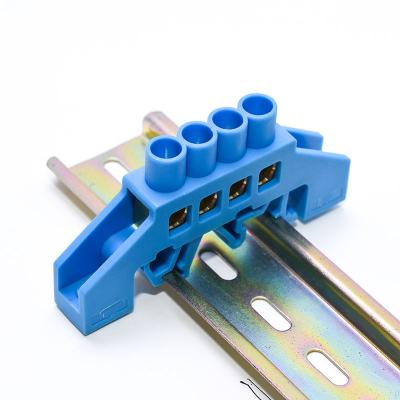

The Earth Connector with DIN Rail H-Type Holder Terminal Blocks is a crucial component for grounding and electrical connection systems. these terminal blocks ensure secure and efficient grounding connections, providing enhanced safety and performance in various electrical installations.   1.High-Quality Materials: Constructed from durable and high-conductivity materials such as brass and stainless steel, ensuring long-lasting performance. 2.Insulated Housing: The terminal blocks come with an insulated housing, typically made from polyamide or a similar high-quality plastic, to ensure safety and durability. 3.DIN Rail Mounting: The H-Type Holder design allows for easy and secure mounting on standard DIN rails, facilitating organized and efficient installations. 4.Excellent Conductivity: High-conductivity materials ensure efficient electrical grounding. 5.Easy Installation: Designed for quick and hassle-free installation on DIN rails, saving time and effort.

Details
Neutral Busbar
Din Rail Earthing Connection Busbar Terminal Block

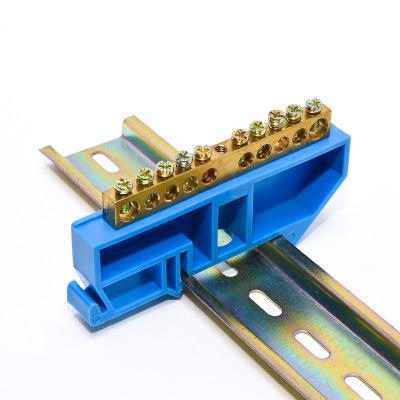

 Din Rail Earthing Connection Busbar Terminal Block  is engineered to deliver a dependable and secure solution for wire connections. Each terminal is insulated from the adjacent ones, ensuring organized circuits and preventing any potential short circuits.    ItemNo  MJTB031  Contact Material  Brass  Termination Method  Screw Down  Material  Polyamide or Polyethylene Housing  Inserts  Brass  Housing  Polyamide (PA),Polyethylene(PE)  Screws  Steel,Zinc plated

Details
Din Rail-Mounted Terminal Block
Din Rail-Mounted Busbar Terminal Block

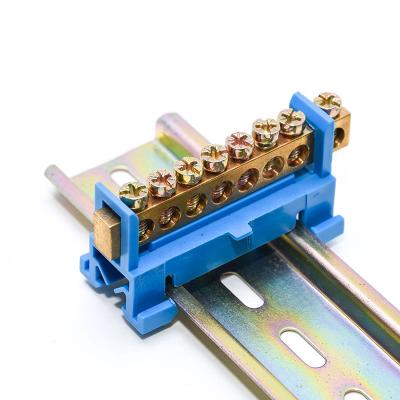

DIN Rail-Mounted Busbar Terminal Block is designed for efficient and organized electrical connections in various industrial and commercial applications. Its robust construction and secure mounting system ensure reliable performance and ease of installation.    ItemNo  MJTB032  Contact Material  Brass  Termination Method  Screw Down  Material  Polyamide66 Housing  Inserts  Brass  Housing  Polyamide66 (PA66)  Screws  Steel,Zinc plated
