Home Terminal Strip Pluggable Terminal Block

Pluggable Wire Connectors Terminal Strips

Pluggable Wire Connectors Terminal Strips

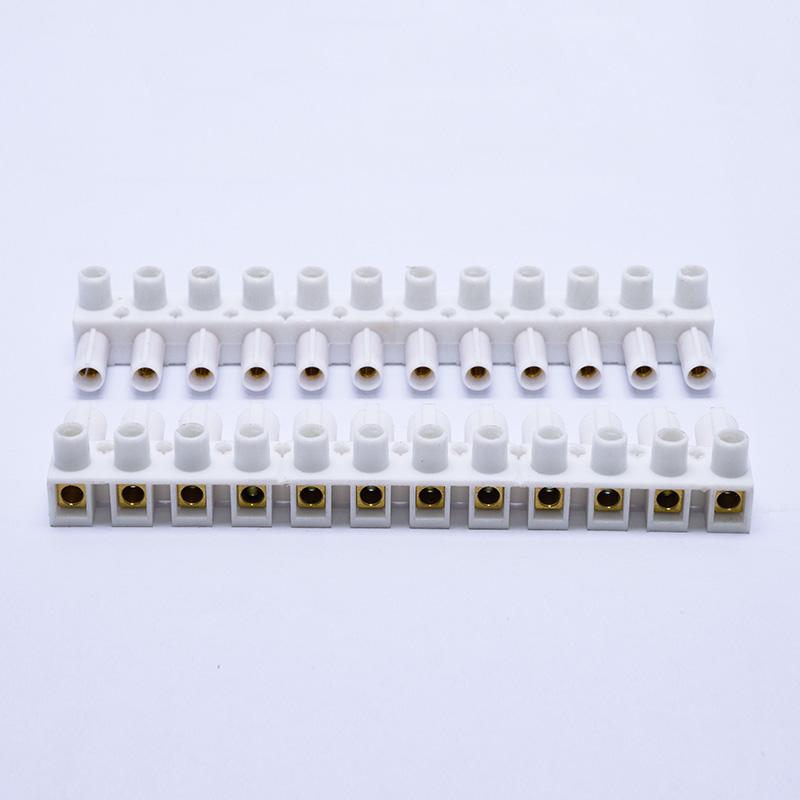

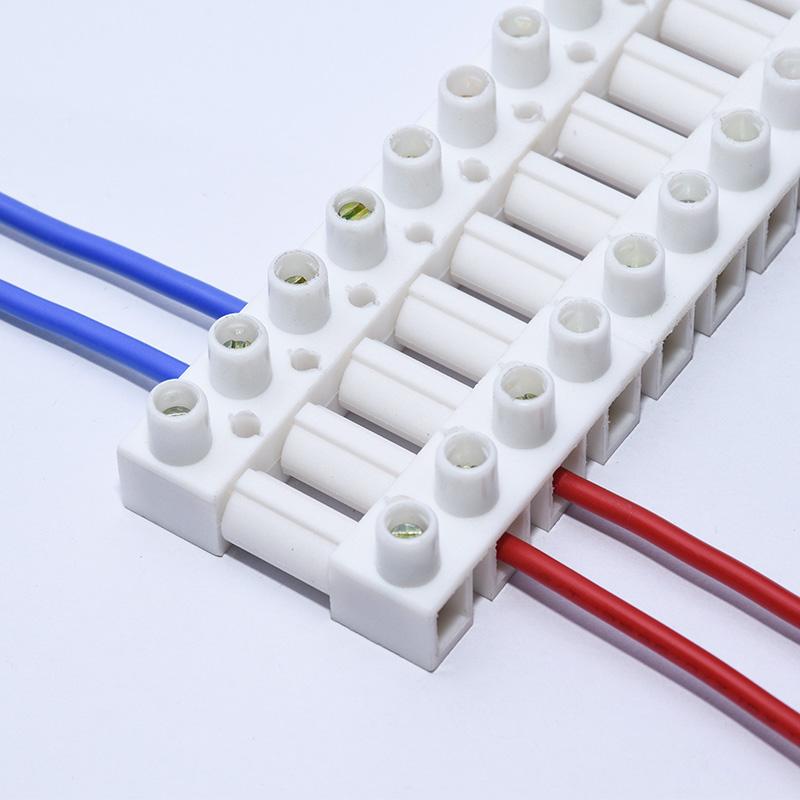

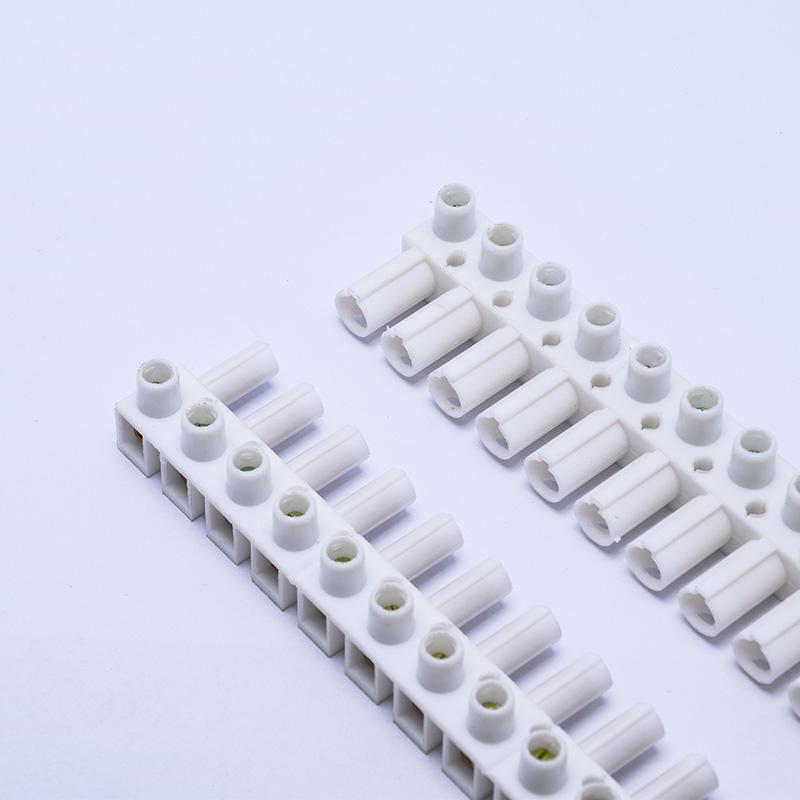

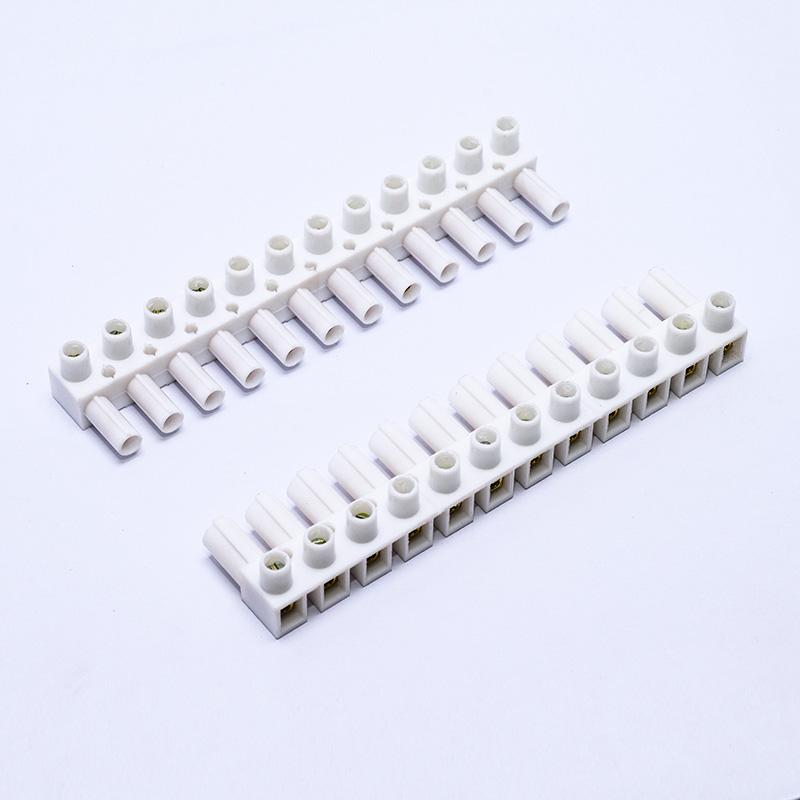

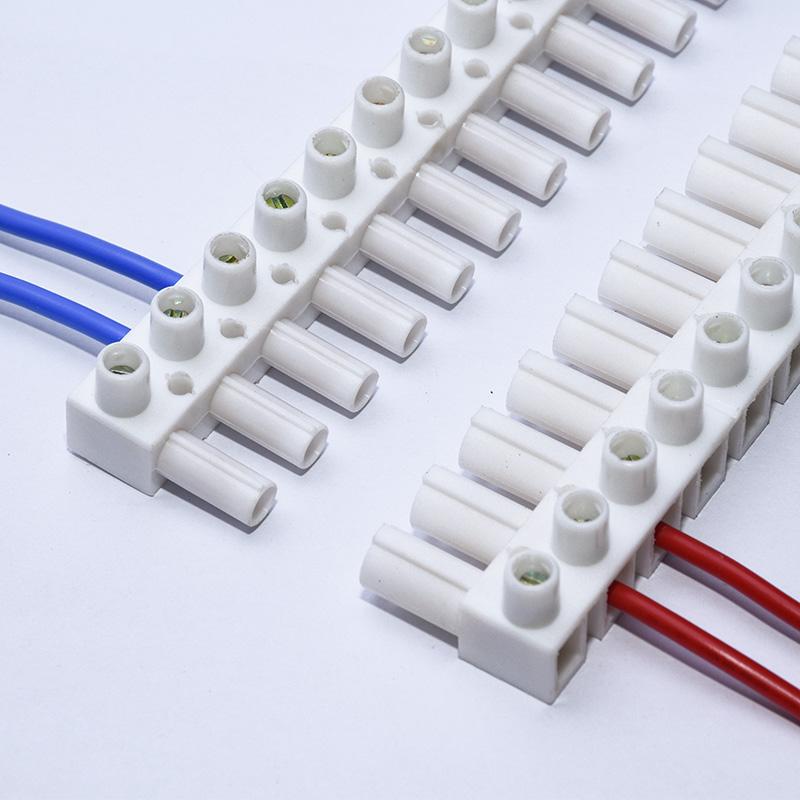

Pluggable Wire Connectors Terminal Strips Constructed from materials  PA6,these terminal strips deliver exceptional durability and performance. the terminal strips can be easily cut to the desired size or provided pre-cut to length upon request.  Featuring captive terminal screws and middle barrier inserts, these terminal strips guarantee secure and efficient connections.



 ItemNo

 MJTB011-10

 Contact Material

 Brass

 Termination Method

 Screw Down

 Glow Wire Test

 850

 Material

 Polyamide6

 Number of Ways

 12

 Inserts

 Brass

 Housing

 Polyamide6(PA6)

 Screws

 Steel,Zinc plated



Advantages of Pluggable Wire Connectors Terminal Strips



1. Wire Protection: Available with or without wire protection for tailored application needs.

2. Secure Design: Closed inserts (middle barrier) for enhanced connection security.

3. Captive Screws: Ensures reliable and firm connections.

4. Pluggable Configuration: Includes male and female terminal blocks for flexible use.

5. High Conductivity: Brass contacts provide excellent electrical conductivity and durability.

  • #Pluggable Wire Connectors Terminal Strips

  • #Pluggable Connectors Terminal Strips

  • #Pluggable  Terminal Strips




Pluggable Wire Connectors Terminal Strips General Specifications

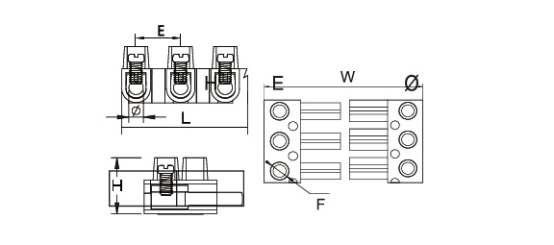

ItemNo. Wire Range Amp Volt L W H E F Ø Screw Size PCS/CTN
mm
MJTB011-10 2.5mm-4.0mm 10A 450V 120.5 37.3 16.7 10.3 3 3.3 M3.0 240



Application of Pluggable Wire Connectors Terminal Strips

Pluggable Wire Connectors Terminal Strips are ideal for a wide range of electrical connection needs, ensuring secure and reliable performance in various settings. They are particularly well-suited for Industrial Machinery,HVAC Systems,Electrical Panels,Appliances,Lighting Systems,Power Distribution,Renewable Energy,Custom Electrical Projects.
