Din Rail Earthing Connection Busbar Terminal Block

Din Rail Earthing Connection Busbar Terminal Block

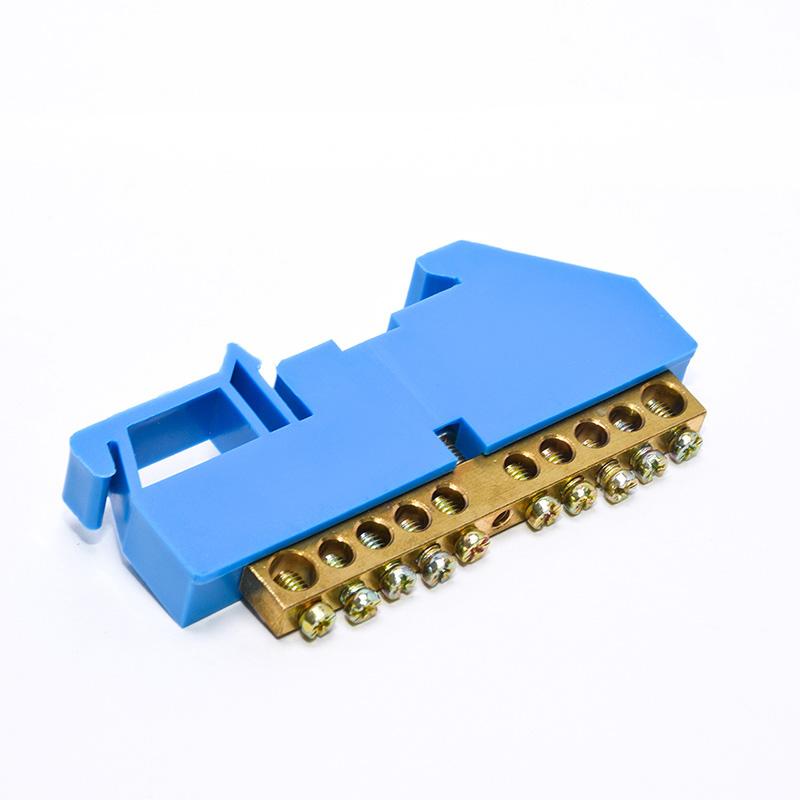

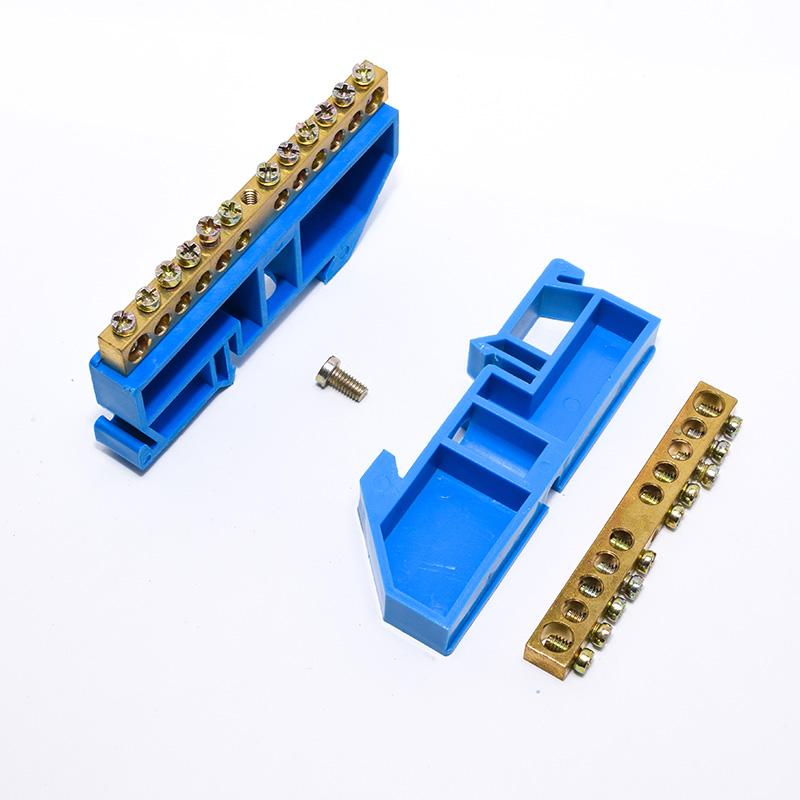

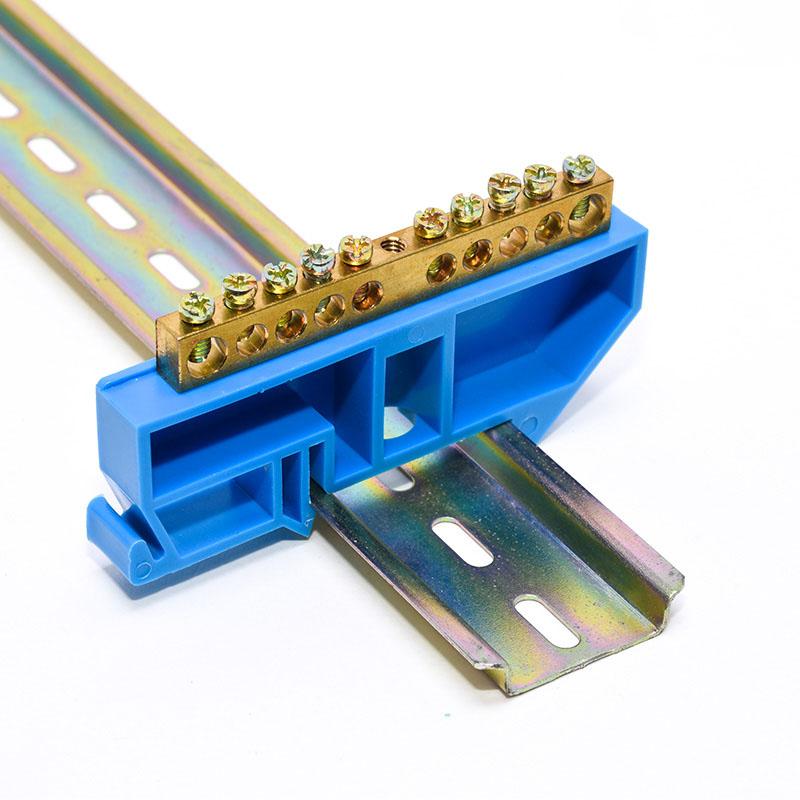

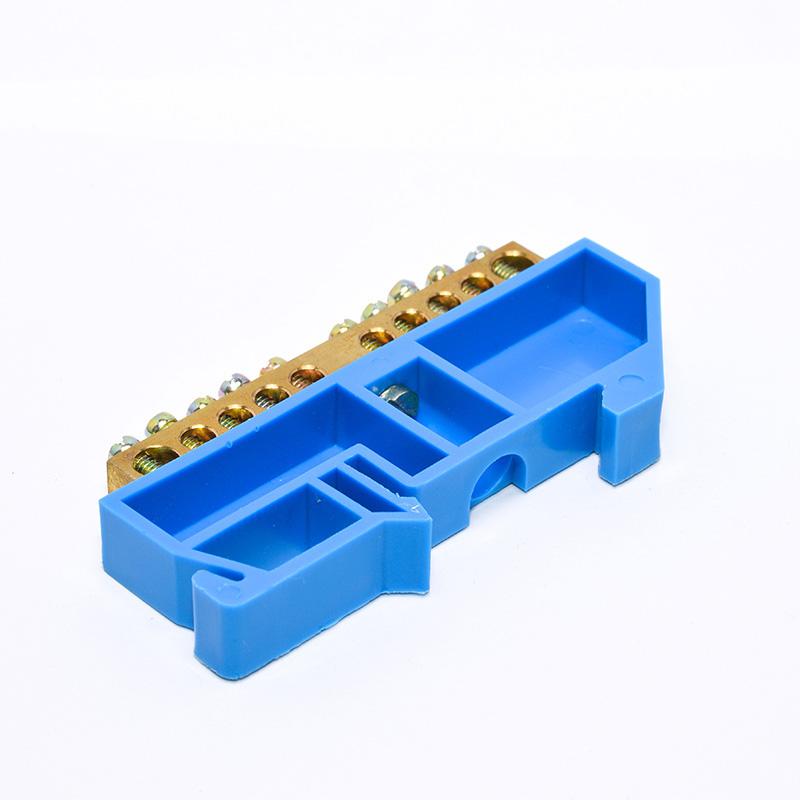

 Din Rail Earthing Connection Busbar Terminal Block  is engineered to deliver a dependable and secure solution for wire connections. Each terminal is insulated from the adjacent ones, ensuring organized circuits and preventing any potential short circuits.



 ItemNo

 MJTB031

 Contact Material

 Brass

 Termination Method

 Screw Down

 Material

 Polyamide or Polyethylene Housing

 Inserts

 Brass

 Housing

 Polyamide (PA),Polyethylene(PE)

 Screws

 Steel,Zinc plated



Advantages of Din Rail Earthing Connection Busbar Terminal Block



1. Insulated Terminals: Each terminal is individually insulated to maintain circuit organization and prevent short circuits.

2. Set Screws: Designed to securely fasten wires, these screws ensure a reliable electrical contact and enhance safety by preventing accidental contact with the terminals during installation and operation.

3. Versatile Applications: Ideal for connecting wires in home appliances, electronic circuits, machines, and various other applications.

4. Easy Installation: facilitating quick and efficient installation and wiring configurations.

  • #Din Rail Earthing Connection Busbar Terminal Block

  • #Din Rail  Busbar Terminal Block

  • #Din Rail  Terminal Block


Din Rail Earthing Connection Busbar Terminal Block General Specifications

Din Rail  Terminal Block

ItemNo. Brass w x h Holes L L1 H W Ø Screw Size PCS/CTN
mm mm
MJTB031-01 6×9 4 86 31.6 43 11.5 4.5 M4.0 500
MJTB031-02 6×9 6 86 44 43 11.5 4.5 M4.0 500
MJTB031-03 6x9 8 86 56.4 43 11.5 4.5 M4.0 500
MJTB031-04 6×9 10 86 68.8 43 11.5 4.5 M4.0 500
MJTB031-05 6×9 12 86 81.2 43 11.5 4.5 M4.0 500
MJTB031-06 6x9 14 86 936 43 11.5 4.5 M4.0 500
MJTB031-07 6×9 16 86 106 43 11.5 4.5 M4.0 400
MJTB031-08 6x9 18 86 118.4 43 11.5 4.5 M4.0 400
MJTB031-09 6x9 20 86 130.8 43 11.5 4.5 M4.0 400
MJTB031-10 6×9 22 86 143.2 43 11.5 4.5 M4.0 300
MJTB031-11 6x9 24 86 159 43 11.5 4.5 M4.0 200
MJTB031-12 8×12 6 86 53 43 11.5 5.3 M5.0 500
MJTB031-13 8×12 8 86 67.6 43 11.5 5.3 M5.0 500
MJTB031-14 8×12 10 86 82 43 11.5 5.3 M5.0 500
MJTB031-15 8×12 12 86 96.5 43 11.5 5.3 M5.0 500
MJTB031-16 8×12 14 86 108.5 43 11.5 5.3 M5.0 300



Application of Din Rail Earthing Connection Busbar Terminal Block

This versatile terminal block is suitable for a wide range of applications, including:

      · Home Appliances: Ensures secure and organized wire connections.

      · Electronic Circuits: Provides reliable connections in electronic devices.

      · Industrial Machinery: Suitable for use in various machines requiring robust wiring solutions.

      · General Wiring Projects: Ideal for any project that requires dependable wire connections.
