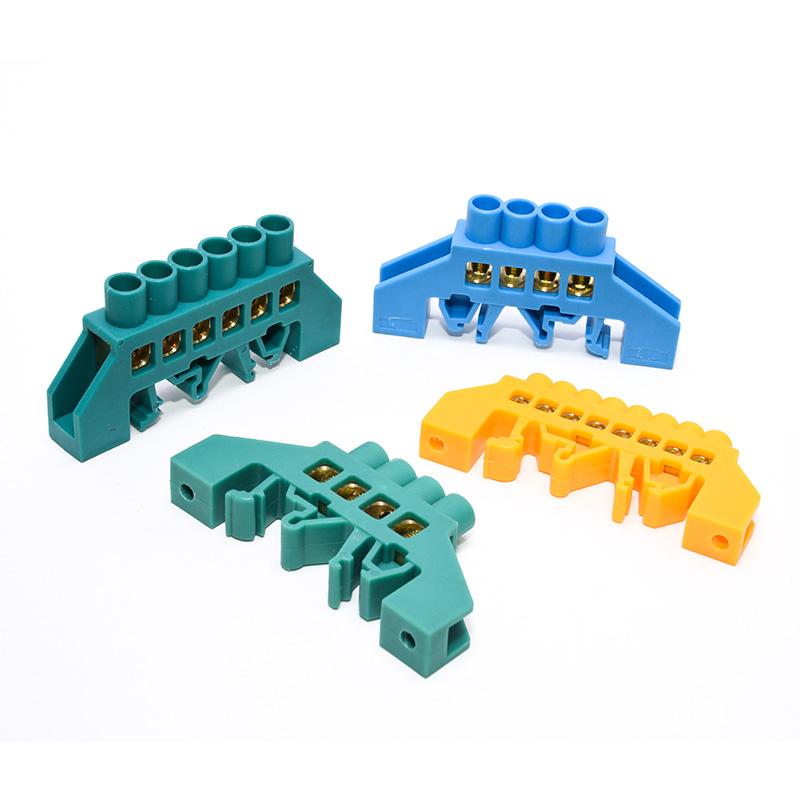

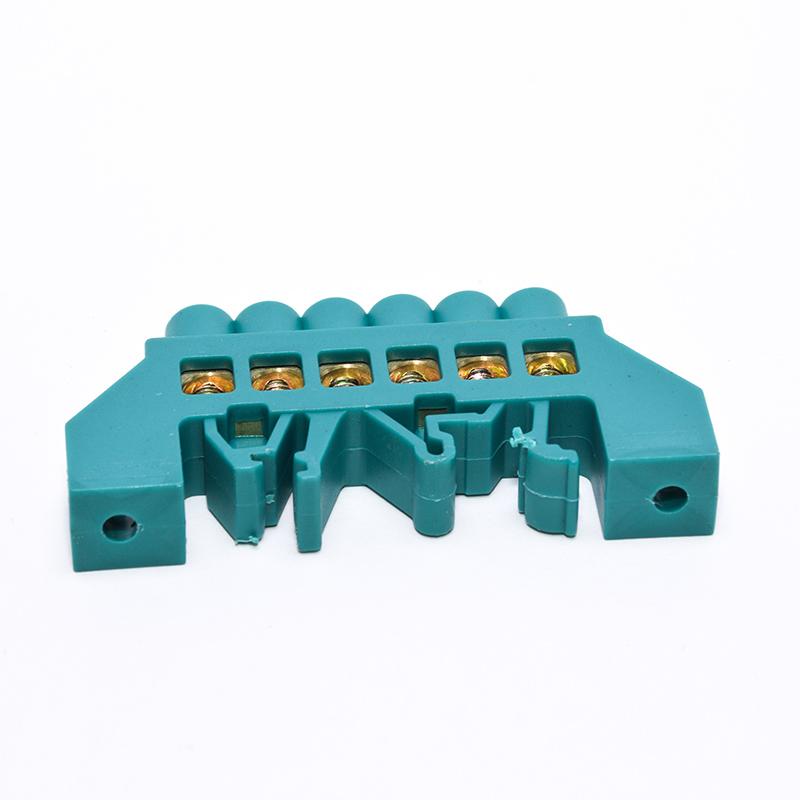

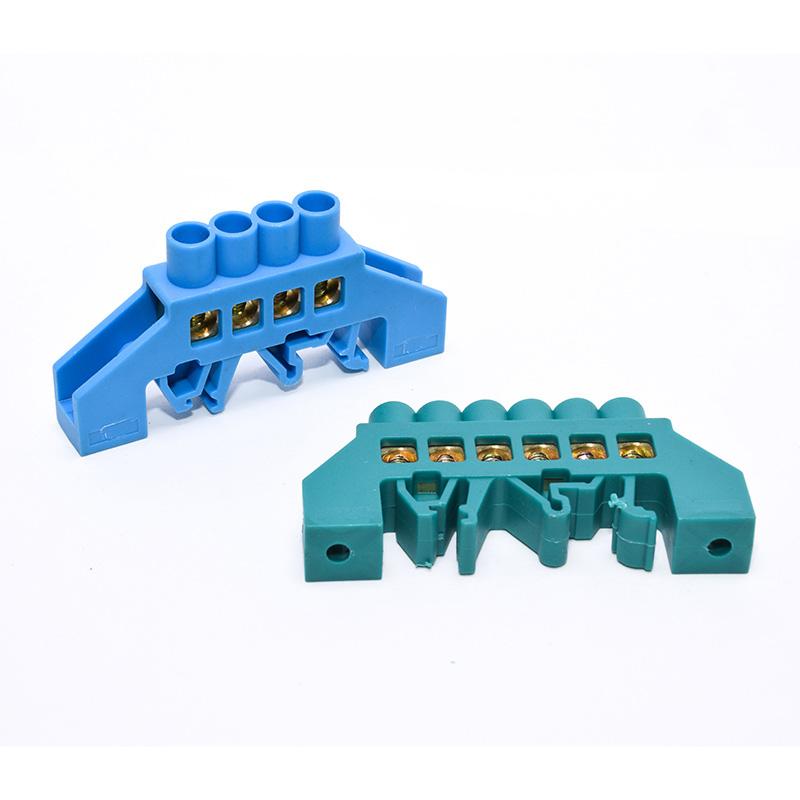

Din Rail Type Bottom Seat Screw Brass Terminal Block

Din Rail Type Bottom Seat Screw Brass Terminal Block

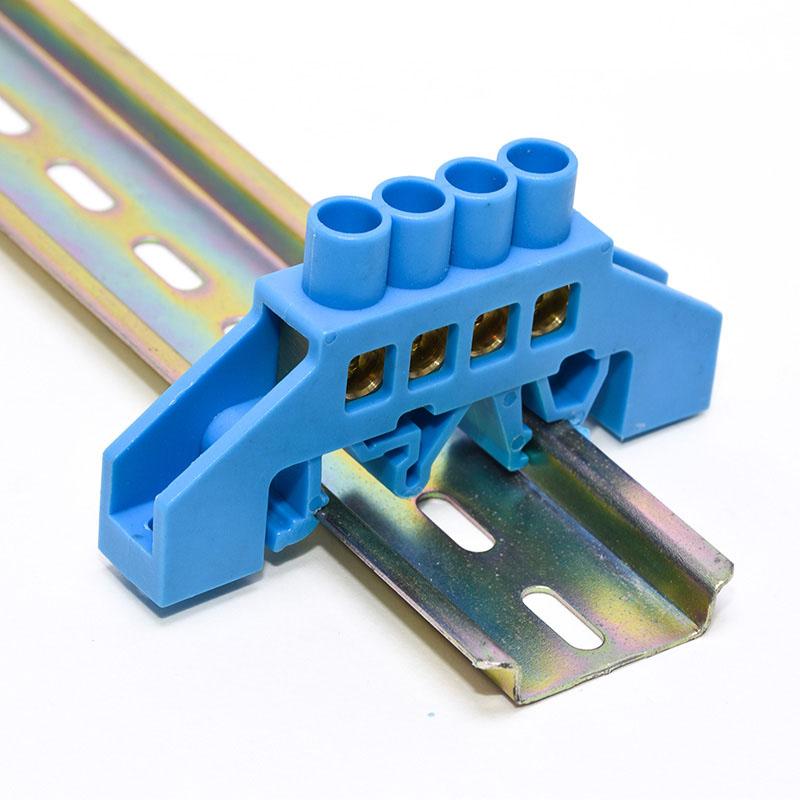

DIN Rail Type Bottom Seat Screw Brass Terminal Block is designed to provide a reliable and efficient connection for grounding applications across various industries. Constructed with high-quality copper contacts and featuring a durable plastic insulator, it ensures excellent electrical performance and longevity.



1. Contact Material: Made from copper, ensuring high conductivity and reliable electrical connections.

2. Manufacturing Process: precision and durability.

3. Insulator Material: Plastic, offering good insulation properties and resistance to environmental factors.

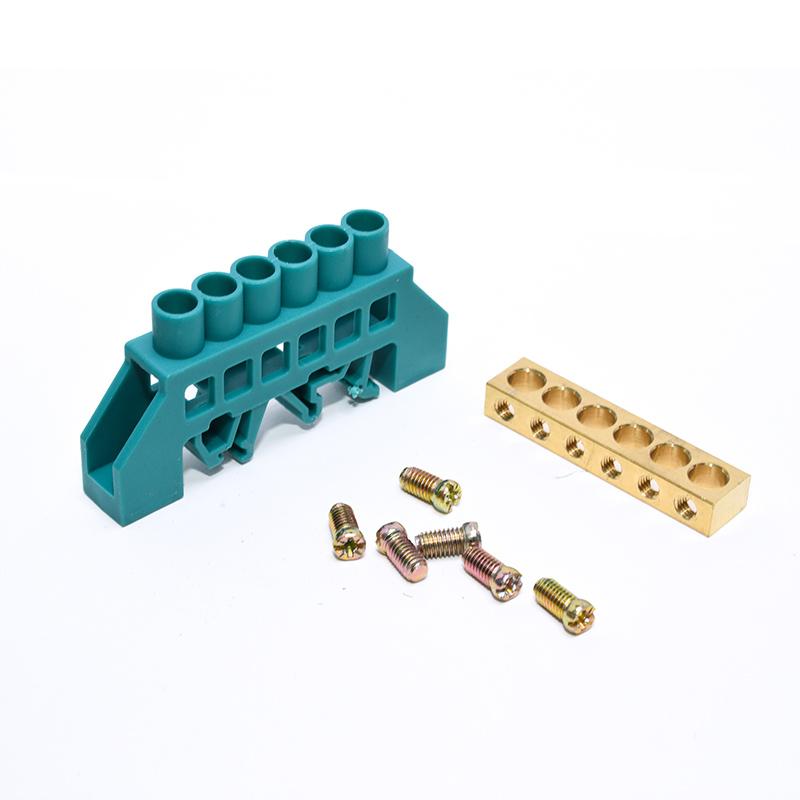

Din Rail Type Bottom Seat Screw Brass Terminal Block Physical Properties

 ItemNo

 MJTB033

 Contact Material

 Brass

 Termination Method

 Screw Down

 Material

 Polyamide Housing

 Inserts

 Brass

 Housing

 Polyamide (PA)

 Screws

 Steel,Zinc plated

  • #blue zero line row Terminal Grounding Block

  • #zero line row Terminal Grounding Block

  • #Terminal Grounding Block


Din Rail Type Bottom Seat Screw Brass Terminal Block General Specifications

DIN Rail  Screw Brass Terminal Block

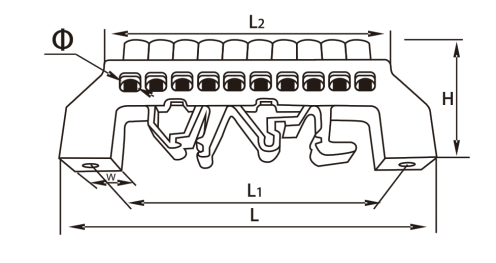

ItemNo. Brass w x h Holes L L1 L2 H W Ø Screw Size PCS/CTN
mm mm
MJTB033-01 6×9 4 57.5 49 34 34.5 10.5 5 M4.0 1000
MJTB033-02 6×9 6 57.5 49 46.7 34.5 10.5 5 M4.0 1000
MJTB033-03 6x9 8 78.5 69.5 60 34.5 10.5 5 M4.0 800
MJTB033-04 6×9 10 89 78 72.8 34.5 10.5 5 M4.0 600
MJTB033-05 6×9 12 102 91.5 85.7 34.5 10.5 5 M4.0 500
MJTB033-06 8×12 4 77.5 66 40.6 38.6 12.6 7 M5.0 500
MJTB033-07 8X12 6 77.5 66 57.3 38.6 12.6 7 M5.0 500
MJTB033-08 8×12 8 94.3 83 74.4 38.6 12.6 7 M5.0 500
MJTB033-09 8×12 10 111 100 91 38.6 12.6 7 M5.0 500
MJTB033-10 8×12 12 128.4 117.5 108.6 38.6 12.6 7 M5.0 500
MJTB033-11 8×12 14 145.8 134 135.6 38.6 12.6 7 M5.0 250



Application of Din Rail Type Bottom Seat Screw Brass Terminal Block

·  Power Vehicles: Suitable for grounding and power distribution in various vehicles.

·  Ships: Ideal for use in marine environments and ship grounding distribution cabinets.

·  Distribution Boxes: Utilized in power distribution and control panels.

·  Mechanical Equipment Factories: Applied in grounding solutions for machinery.

·  Electrical Factories: Used in the assembly and maintenance of electrical systems.
