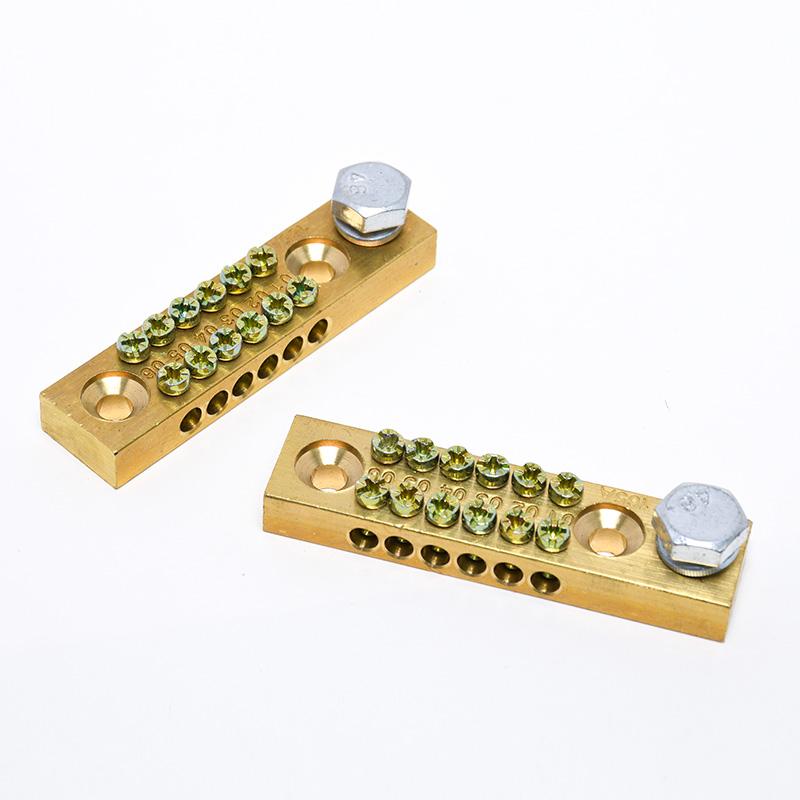

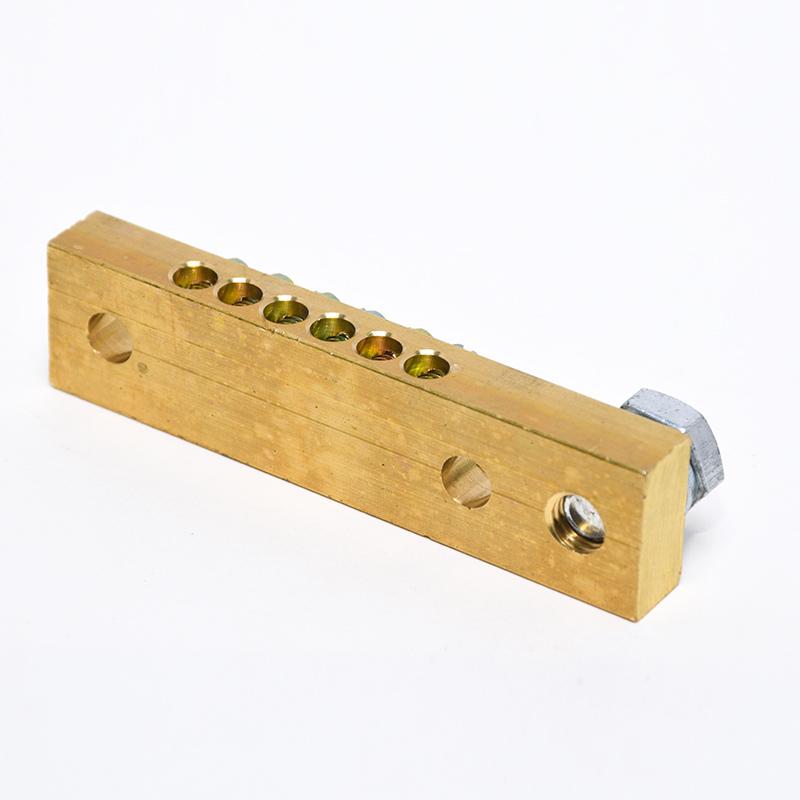

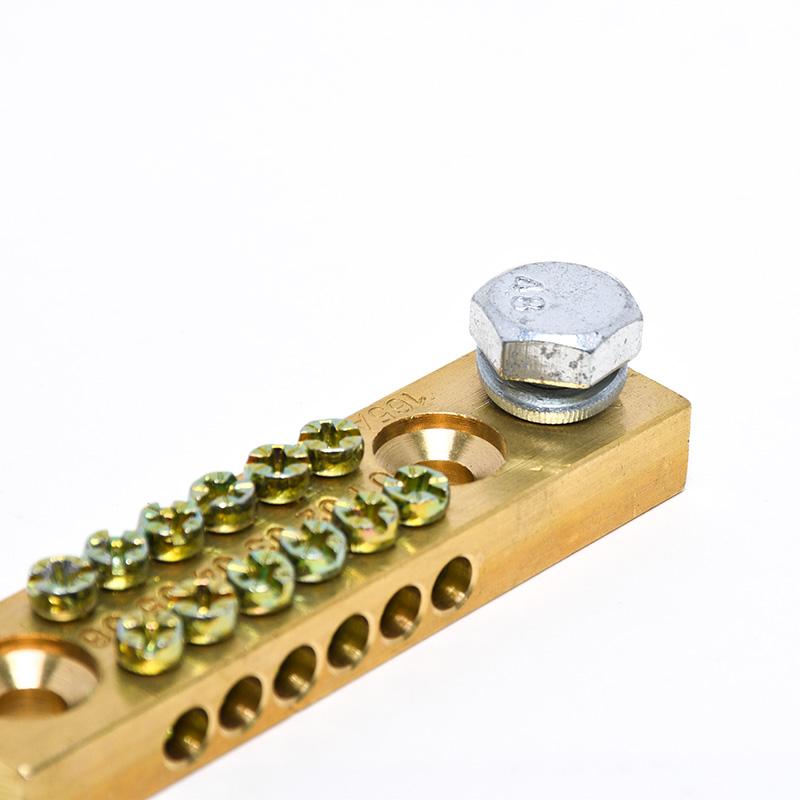

Two Line Copper Terminal Ground Bar Screw Block

Two Line Copper Terminal Ground Bar Screw Block

Two Line Copper Terminal Ground Bar Screw Block  is a terminal connector, for wiring or grounding function.Other dimensions can be made as requested.



1.High-Quality Copper: Made from premium copper, offering excellent electrical.

2.Two-Line Configuration: The two-line design allows for multiple connections, providing flexibility in organizing and managing wiring.

3.Two-Line Configuration: The two-line design allows for multiple connections, providing flexibility in organizing and managing wiring.

Two Line Copper Terminal Ground Bar Screw Block Physical Properties

 ItemNo

 MJTB039

 Contact Material

 Brass

 Termination Method

 Screw Down

 Screws

 Steel,Zinc plated



  • #Two Line Copper Terminal Ground Bar Screw Block

  • # Copper Terminal Ground Bar Screw Block

  • #Terminal Ground Bar Screw Block

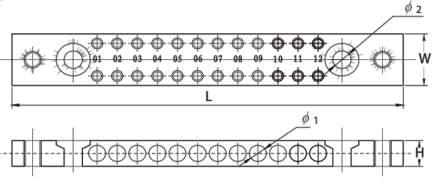

Two Line Copper Terminal Ground Bar Screw Block General Specifications

Two Line Copper Terminal Ground Bar Screw Block



ItemNo. Brass w x h Holes L Ø1 Ø2 Screw Size PCS/CTN
mm mm
MJTB039-01 19×9.5 6 93 5.2 6.3 M5.0 300
MJTB039-02 19×9.5 12 132 5.2 6.3 M5.0 200
MJTB039-03 19×9.5 18 171 5.2 6.3 M5.0 200
MJTB039-04 19×9.5 24 210 5.2 6.3 M5.0 100
MJTB039-05 19x9.5 30 249 5.2 6.3 M5.0 100
MJTB039-06 19×9.5 36 290 5.2 6.3 M5.0 100
MJTB038-07 19×9.5 42 327 5.2 6.3 M5.0 100
MJTB039-08 19×9.5 48 367 5.2 6.3 M5.0 100
MJTB039-09 19×9.5 60 444 5.2 6.3 M5.0 80
MJTB039-10 19×9.5 72 521 5.2 6.3 M5.0 80
MJTB039-11 19×9.5 84 600 5.2 6.3 M5.0 50
MJTB039-12 19×9.5 96 677 5.2 6.3 M5.0 30
MJTB039-13 19×9.5 106 756 5.2 6.3 M5.0 20



Application of Two Line Copper Terminal Ground Bar Screw Block

Grounding Systems: Ideal for grounding in electrical distribution

Industrial Equipment:Provides reliable grounding connections in industrial machinery, supporting safe operation.

Residential Wiring:Suitable for grounding residential electrical systems, ensuring compliance with safety standards.

Commercial Installations:Provides reliable grounding in commercial electrical systems, supporting safe and efficient operation.

Renewable Energy Systems:Essential for grounding in solar power systems, enhancing the safety and efficiency of energy generation.
