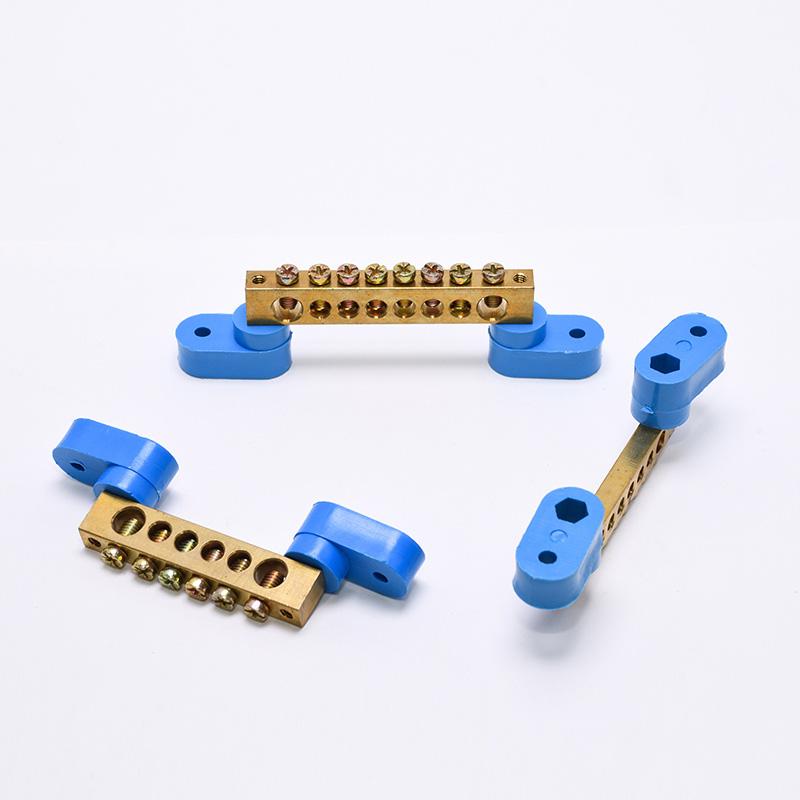

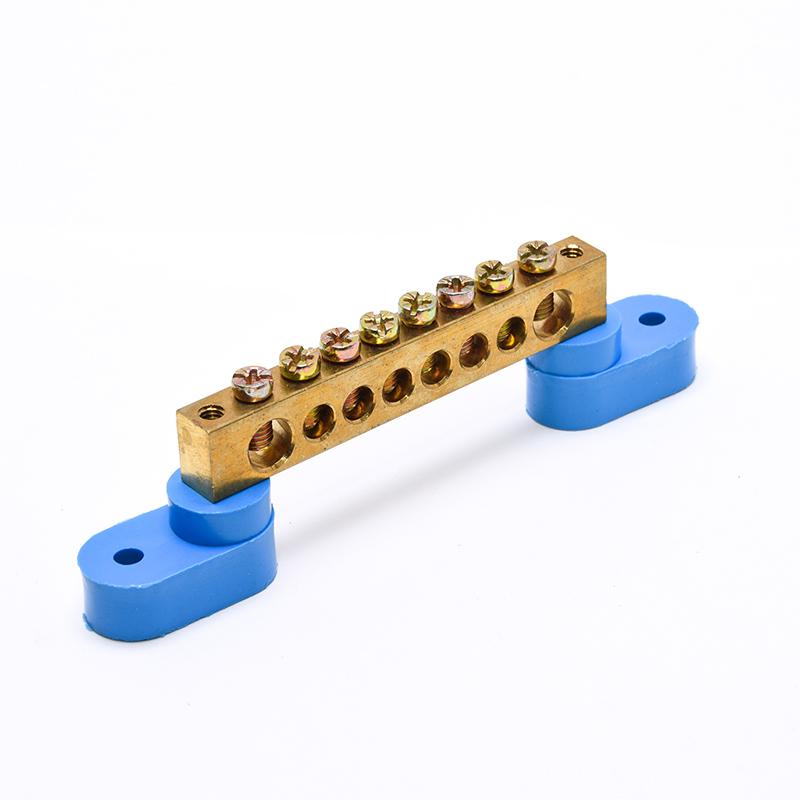

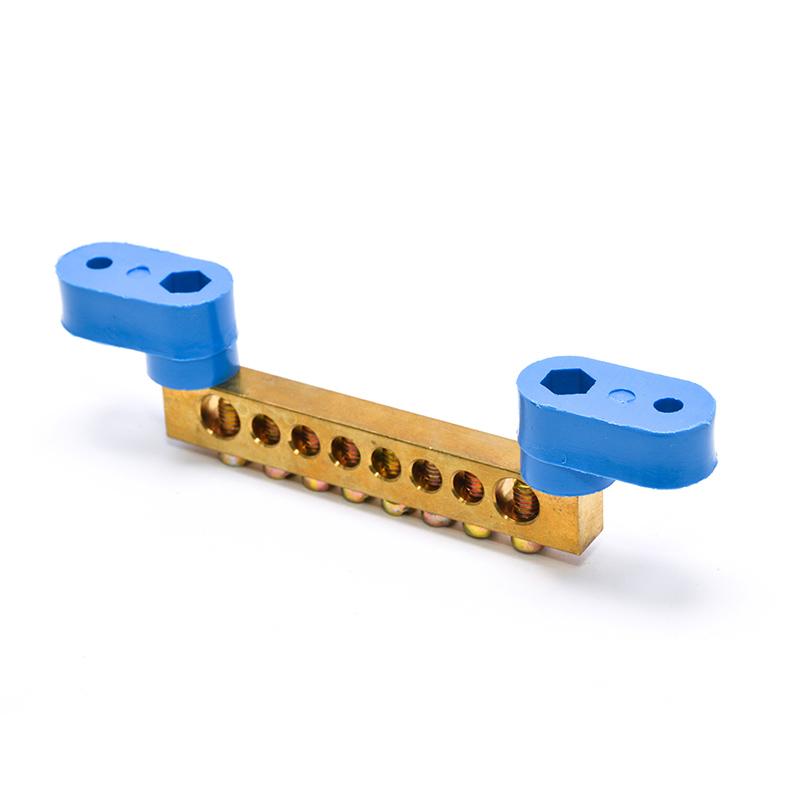

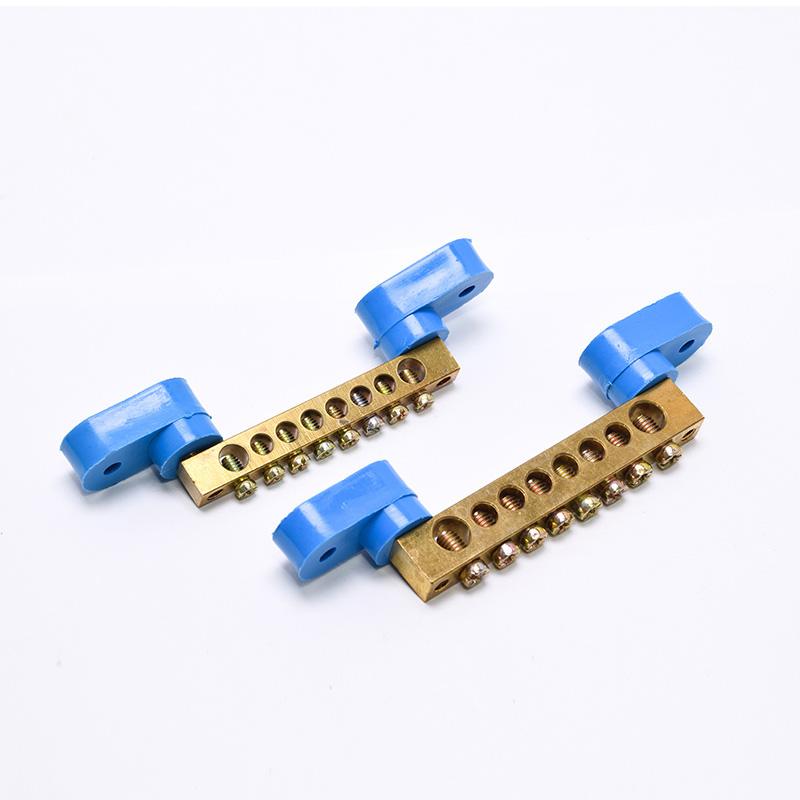

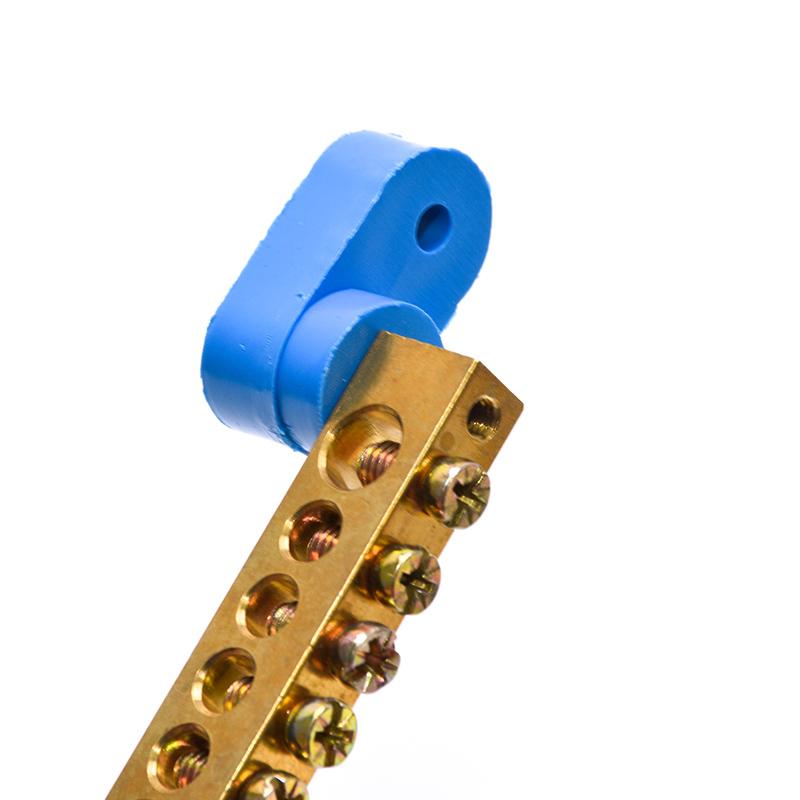

This Earthing Terminal Brass Bar With 1 or 2 Round Holders features 1 or 2 round holders, designed for a wide range of applications requiring secure and reliable connections. Known for its excellent conductivity and durability, the brass bar ensures efficient performance in various electrical and mechanical setups.
|
ItemNo |
MJTB028-01-22 |
|
Contact Material |
Brass |
|
Termination Method |
Screw Down |
|
Round Holders |
1,2 |
|
Screws |
Steel,Zinc plated |
Advantages of Earthing Terminal Brass Bar With 1 or 2 Round Holders
1. Brass Terminals: Equipped with high-quality brass terminals for reliable electrical connections.
2. Durable Plastic Base: The plastic base offers great mechanical strength and long-term durability.
3. Efficient Organization: Designed to help organize and clean up disordered wiring.
4. Easy to Use: without a protective cover, allow for direct and quick use.
5. Closed Back Design: Completely insulates power from the mounting surface, enhancing safety.
Earthing Terminal Brass Bar With 1 or 2 Round Holders General Specifications
| ItemNo. | Brasswxh | Holes | L | L1 | L2 | H | Ø | Screw Size | PCS/CTN |
| mm | mm | ||||||||
| MJTB028-01 | 6×9 | 4-2 | 37.2 | 73.5 | 61.4 | 24.3 | 4.5 | M4.0 | 1000 |
| MJTB028-02 | 6x9 | 6-2 | 49.6 | 86 | 74 | 24.3 | 4.5 | M4.0 | 1000 |
| MJTB028-03 | 6x9 | 8-2 | 62 | 98 | 86.5 | 24.3 | 4.5 | M4.0 | 500 |
| MJTB028-04 | 6×9 | 10-2 | 74.4 | 110.5 | 99 | 24.3 | 4.5 | M4.0 | 500 |
| MJTB028-05 | 6×9 | 12-2 | 86.8 | 123 | 111.5 | 24.3 | 4.5 | M4.0 | 500 |
| MJTB028-06 | 6x9 | 14-2 | 105.5 | 143.5 | 130.5 | 24.3 | 4.5 | M4.0 | 500 |
| MJTB028-07 | 6×9 | 20-2 | 139 | 176.5 | 163.4 | 24.3 | 4.5 | M4.0 | 200 |
| MJTB028-08 | 6×9 | 24-2 | 164.7 | 201.5 | 188 | 24.3 | 4.5 | M4.0 | 200 |
| MJTB028-09 | 8×12 | 4-2 | 45 | 81.9 | 68.6 | 27 | 5.3 | M5.0 | 500 |
| MJTB028-10 | 8×12 | 6-2 | 59.4 | 103.7 | 90.4 | 27 | 5.3 | M5.0 | 500 |
| MJTB028-11 | 8×12 | 8-2 | 73.8 | 110.7 | 97.4 | 27 | 5.3 | M5.0 | 500 |
| MJTB028-12 | 8×12 | 10-2 | 88.4 | 125 | 111.7 | 27 | 5.3 | M5.0 | 500 |
| MJTB028-13 | 8×12 | 12-2 | 102.3 | 139.5 | 126 | 27 | 5.3 | M5.0 | 500 |
| MJTB028-14 | 8X12 | 14-2 | 117 | 153.6 | 140.2 | 27 | 5.3 | M5.0 | 500 |
| MJTB028-18 | 8×12 | 16-2 | 131.4 | 168.3 | 155 | 27 | 5.3 | M5.0 | 300 |
| MJTB028-19 | 8×12 | 18-2 | 145.8 | 182.7 | 169.4 | 27 | 5.3 | M5.0 | 300 |
| MJTB028-20 | 8×12 | 20-2 | 160.2 | 197.1 | 183.8 | 27 | 5.3 | M5.0 | 200 |
| MJTB028-21 | 8×12 | 22-2 | 174.6 | 211.5 | 198.2 | 27 | 5.3 | M5.0 | 200 |
| MJTB028-22 | 8×12 | 24-2 | 189 | 225.9 | 212.6 | 27 | 5.3 | M5.0 | 200 |
Application of Earthing Terminal Brass Bar With 1 or 2 Round Holders
Brass terminal grounding strip bus bar block is versatile and widely suitable for various applications, including:
· Trucks: Ideal for organizing and securing electrical connections in truck wiring systems.
· Cars: Perfect for use in automotive wiring to ensure neat and reliable connections.
· Yachts: Suitable for marine applications, providing durable and secure electrical connections on yachts.
· Ships: Can be used in ship wiring, ensuring safe and organized electrical setups.
This grounding strip bus bar block is an essential component for any project requiring efficient, organized, and durable electrical connections.
Terminal Grounding Strip Earthing Brass Bar are crafted from durable brass material, ensuring longevity and robustness. 1. Durable Brass Construction: Made from high-strength brass, offering excellent wear resistance and chemical corrosion resistance. 2. Easy Wiring: Simplified wiring process with strong oxidation resistance and high capacity. 3. Versatile Connections: Available with single or multi-point connections to suit various needs.
Details
Earthing Terminal With 1 or 2 Square Holders Brass Bar are crafted from durable brass material, ensuring longevity and robustness,this earthing terminalBrass bar helps to tidy up messy wiring and streamline electrical setups. ItemNo MJTB029 Contact Material Brass Termination Method Screw Down Square Holders 1,2 Screws Steel,Zinc plated
Details
Two Line Copper Terminal Ground Bar Screw Block is a terminal connector, for wiring or grounding function.Other dimensions can be made as requested. 1.High-Quality Copper: Made from premium copper, offering excellent electrical. 2.Two-Line Configuration: The two-line design allows for multiple connections, providing flexibility in organizing and managing wiring. 3.Two-Line Configuration: The two-line design allows for multiple connections, providing flexibility in organizing and managing wiring.
Details
Power Flexible Wiring Terminal Strip with wire protection are fitted with a wire protection guard inside the clamping body, which prevents damage to the connected wire. All parts are captive in the insulating housing. ItemNo MJTB006-01-04 Contact Material Brass Termination Method Screw Down Glow Wire Test 850℃ Material Polyamide6 Housing Number of Ways 12 Inserts Brass Housing Polyamide6 (PA6) Screws Steel,Zinc plated
Details
H Type PE Electrical Choc Terminal Strip Crafted with heat-resistant polythene insulation, these terminal blocks withstand up to 65°C. Each terminal block features 24 connection screws, simplifying wiring setups for various projects. the terminal strip are ideal for various basic electrical installation tasks.This terminal block has the advantages of being lightweight and rigid, with resistance to corrosion and high tensile strength. It also features raised screw down terminals for ease of wiring. ItemNo MJTB001-01-09 Contact Material Brass Termination Method Screw Down Working Temperature -40℃ - 65℃ Material Polyethylene Housing Number of Ways 12 Inserts Brass Housing Polyethylene (PE) Screws Steel,Zinc plated
Details
U Type Extra Small Terminal Strip Designed with a 12-position screw terminal block, featuring two rows to accommodate multiple connections. 1. Wire Protector: Includes wire protectors to ensure a secure and organized wiring setup. 2.Fantastic Design: Features a robust design, ensuring versatility and durability. 3.High-Grade Material: Constructed with high-quality materials, offering a transparent appearance, superior toughness, and resistance to oxidation for extended usability. 4.Brass Conductor: Equipped with a brass conductor for excellent electrical conductivity. 5.Secure Connections: Internal components include brass firmware and galvanized screws for secure fastening and enhanced conductive performance. 6.High Insulation Performance: Delivers exceptional conductive and insulation properties, ensuring safe and efficient operation.
Details

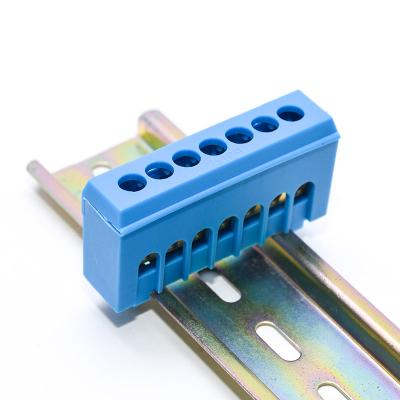

DIN Rail-Mounted Busbar Terminal Block is designed for efficient and organized electrical connections in various industrial and commercial applications. Its robust construction and secure mounting system ensure reliable performance and ease of installation. ItemNo MJTB032 Contact Material Brass Termination Method Screw Down Material Polyamide66 Housing Inserts Brass Housing Polyamide66 (PA66) Screws Steel,Zinc plated
