Earthing Terminal With 1 or 2 Square Holders Brass Bar

Earthing Terminal With 1 or 2 Square Holders Brass Bar

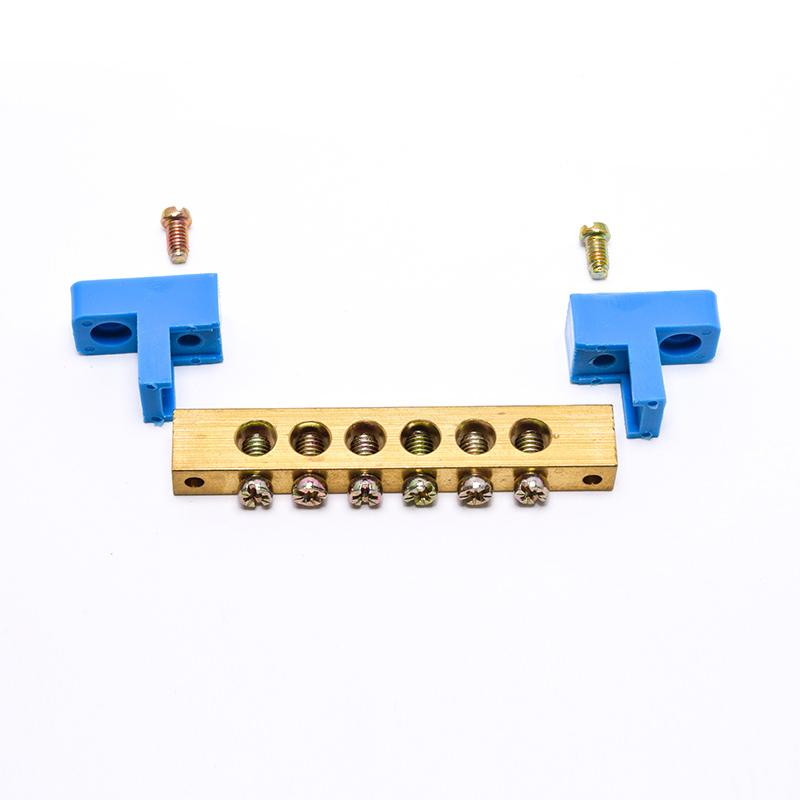

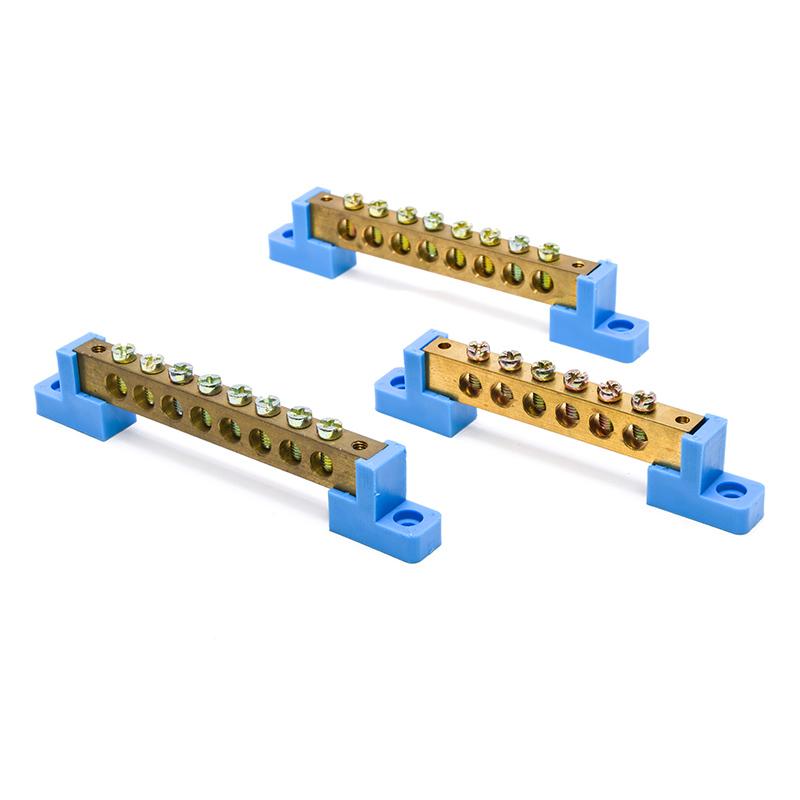

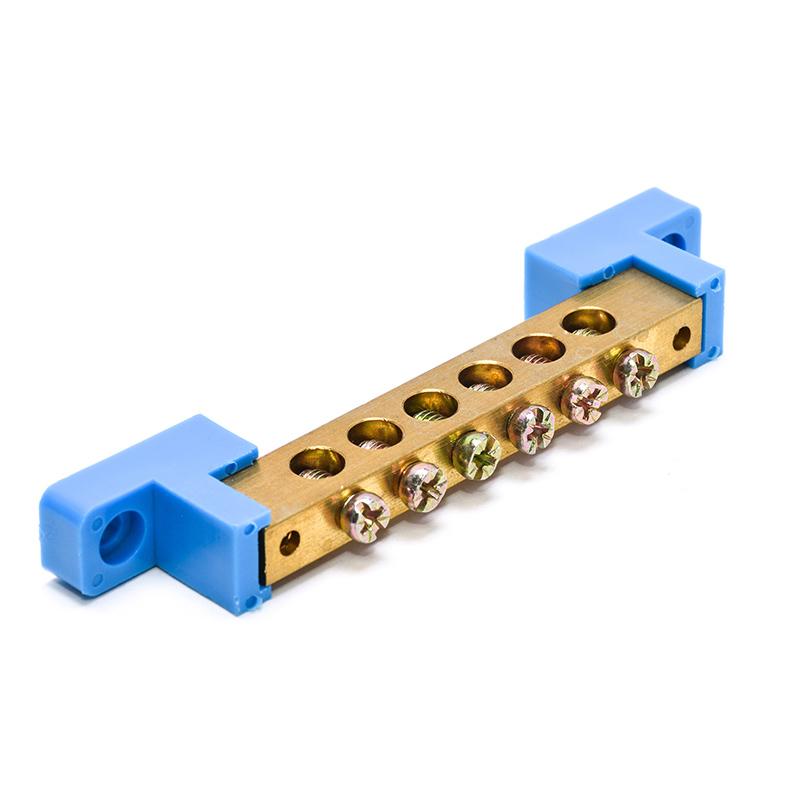

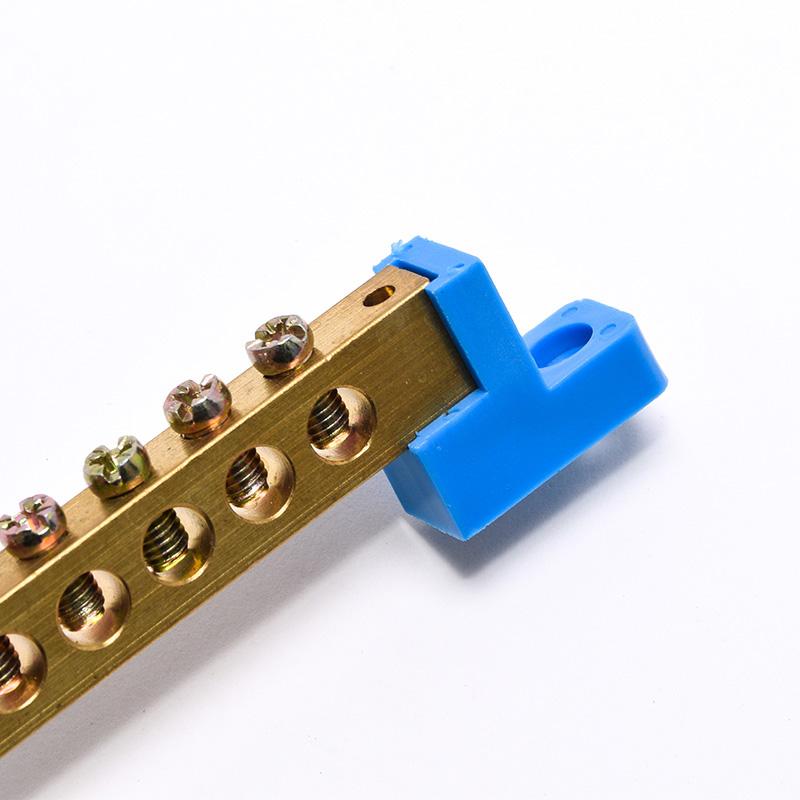

Earthing Terminal  With 1 or 2 Square Holders Brass Bar are crafted from durable brass material, ensuring longevity and robustness,this earthing terminalBrass bar helps to tidy up messy wiring and streamline electrical setups.



 ItemNo

 MJTB029

 Contact Material

 Brass

 Termination Method

 Screw Down

 Square Holders

 1,2

 Screws

 Steel,Zinc plated





Advantages of Earthing Terminal  With 1 or 2 Square Holders Brass Bar



1. Durable Brass Construction: Made from high-strength brass, offering excellent wear resistance and chemical corrosion resistance.

2. Easy Wiring: Simplified wiring process with strong oxidation resistance and high capacity.

3. Versatile Connections: Available with single or multi-point connections to suit various needs.

4. Flexible Screw-Type Bridge System: Features a high current carrying capacity and a modular design that is precise and long-lasting, requiring minimal maintenance.

  • #Earthing Terminal  With 1 or 2 Square Holders Brass Bar

  • #Earthing Terminal  Brass Bar

  • #Terminal  Brass Bar


Earthing Terminal  With 1 or 2 Square Holders Brass Bar General Specifications

Earthing Terminal  With 1 or 2 Square Holders Brass Bar



Item No. Brass w x h Holes L L1 L2 H W Ø Screw Size PCS/CTN
mm mm
MJTB029-01 8×12 4 54 83 70.5 21.5 12 6.5 M5.0 500
MJTB029-02 8×12 6 72 101 88.5 21.5 12 6.5 M5.0 400
MJTB029-03 8×12 8 90 119 106.5 21.5 12 6.5 M5.0 300
MJTB029-04 8×12 10 108 137 124.5 21.5 12 6.5 M5.0 300
MJTB029-05 8×12 12 126 155 142.5 21.5 12 6.5 M5.0 250



Application of Earthing Terminal  With 1 or 2 Square Holders Brass Bar

Earthing Terminal  With 1 or 2 Square Holders Brass Bar  is versatile and widely suitable for various applications, including Trucks,Cars,Yachts,Ships; This grounding strip bus bar block is an essential component for any project requiring efficient, organized, and durable electrical connections.
