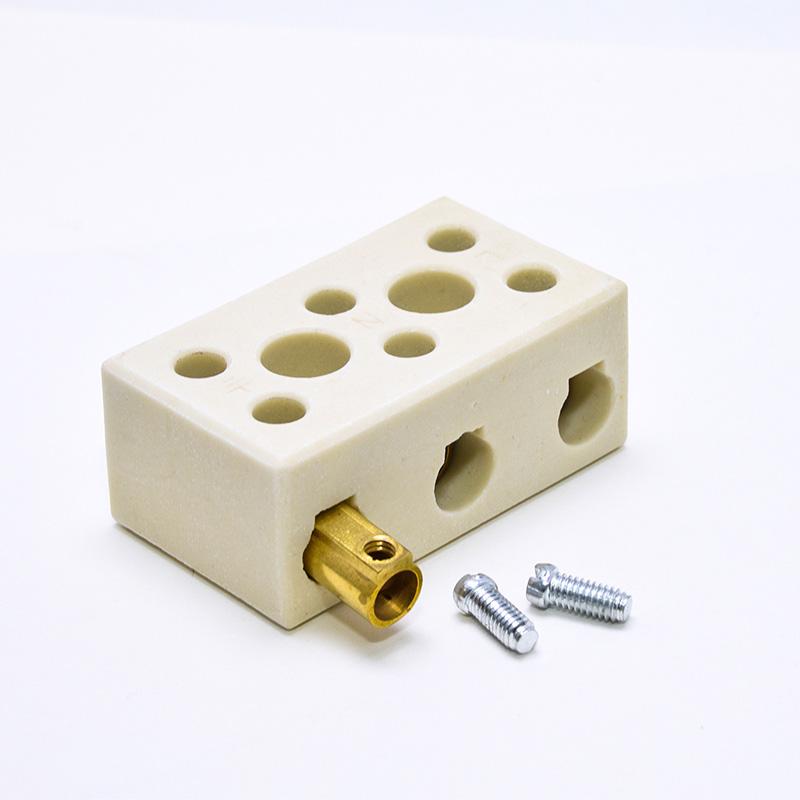

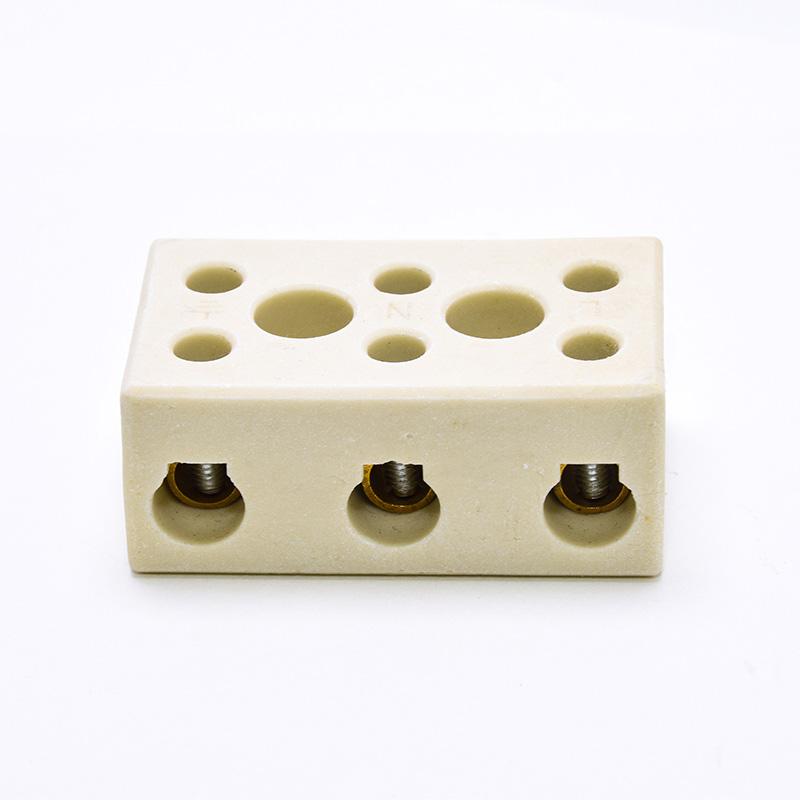

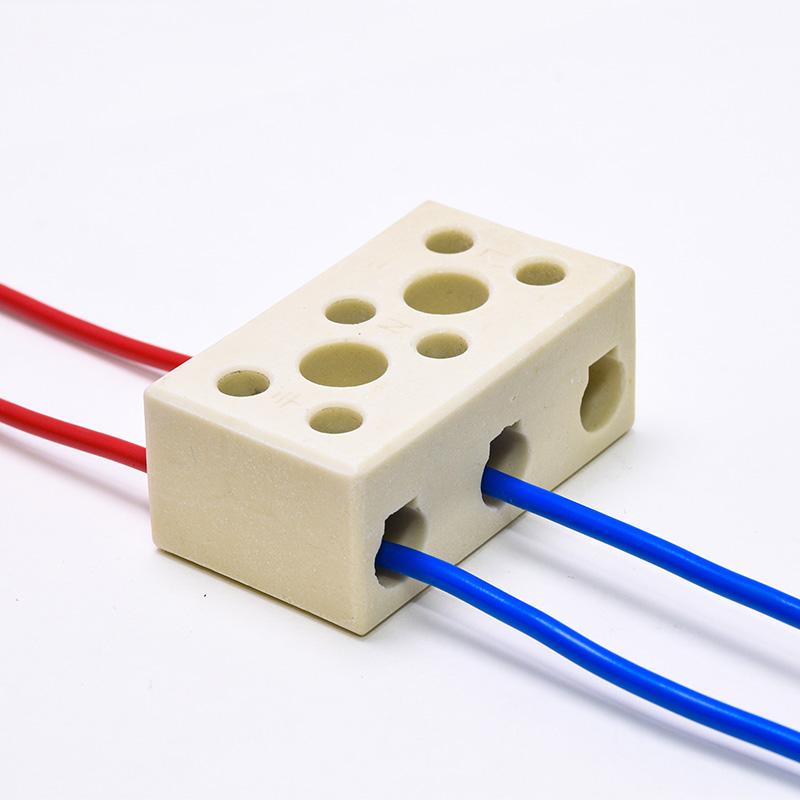

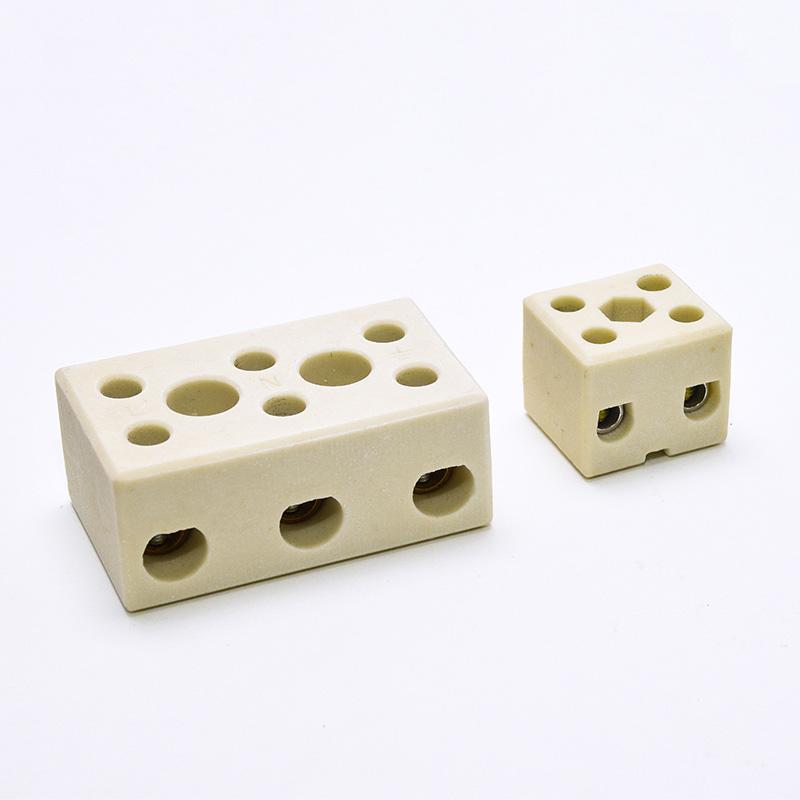

Steatite Ceramic Wire Connector Blocks have been designed for use in high temperature applications. Steatite gives a higher density and higher dielectric strength than regular ceramic connectors.
1.Excellent Insulation: Provides superior electrical insulation for safe and reliable connections.
2. Temperature Resistance: Withstands both high and low temperatures without distortion, ensuring stable performance.
3. Durability: Demonstrates good shock resistance, maintaining integrity even under impact.
4. Dimensional Stability: Remains undistorted when heated and does not shrink or break despite significant changes in air temperature.
5. Environmental Protection: Once connected to the circuitry, it offers effective debris and waterproof protection, ensuring long-lasting performance in various conditions.
Steatite Ceramic Wire Connector Blocks Physical Properties
ItemNo |
MJTB023 |
Contact Material |
Brass or Nickel-plated brass |
Termination Method |
Screw Down |
Working Temperature |
-40℃ - 425℃ |
Inserts |
Brass or Nickel-plated brass |
Screws |
Steel,Zinc plated |
Steatite Ceramic Wire Connector Blocks General Specifications

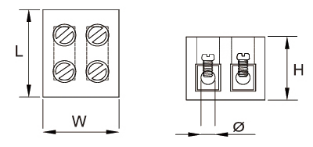

ItemNo. | WireRange | Amp | Volt | L | W | H | Ø | Screw Size | PCS/CTN |
mm | |||||||||
MJTB023-01/2P | 1.5-6mm² | 20A | 450V | 21 | 18 | 15 | 4.2 | M3.0 | 2000 |
MJTB023-02/3P | 1.5-6mm² | 20A | 450V | 33 | 18 | 15 | 4.2 | M3.0 | 2000 |
MJTB023-03/2P | 2.5-10mm | 32A | 450V | 24 | 22 | 21 | 4.5 | M3.5 | 2000 |
MJTB023-04/3P | 2.5-10mm² | 32A | 450V | 38 | 22 | 21 | 4.5 | M3.5 | 2000 |
MJTB023-05/2P | 2.5-10mm² | 57A | 450V | 34 | 30 | 23 | 6.3 | M4.0 | 2000 |
MJTB023-06/3P | 2.5-10mm | 57A | 450V | 53 | 30 | 23 | 6.3 | M4.0 | 2000 |
Application of Steatite Ceramic Wire Connector Blocks
Steatite Ceramic Wire Connector Blocks applications such as boilers, water heaters, cookers, injection moulding machines, and other uses where connections are required around heating/heating and hot water equipment.
