Home Unipolar Terminal Block

10 Poles Connector Unipolar Terminal Blocks

10 Poles Connector Unipolar Terminal Blocks

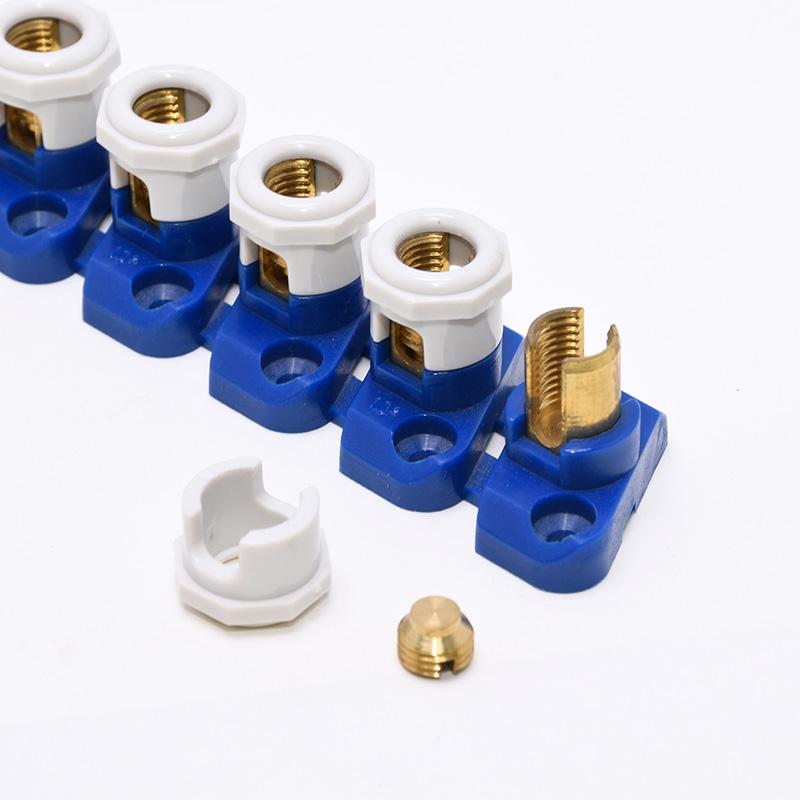

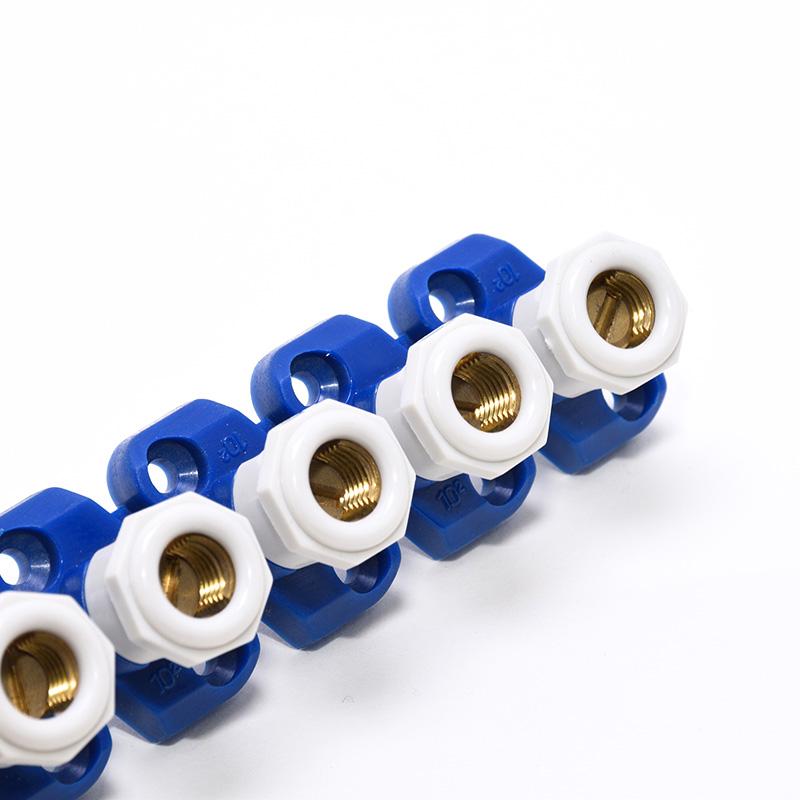

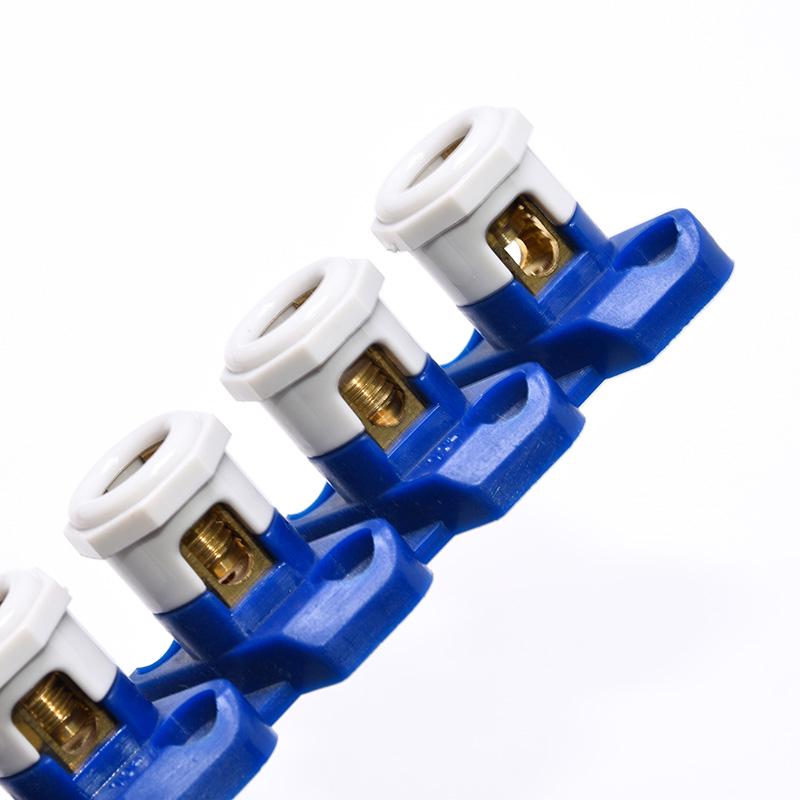

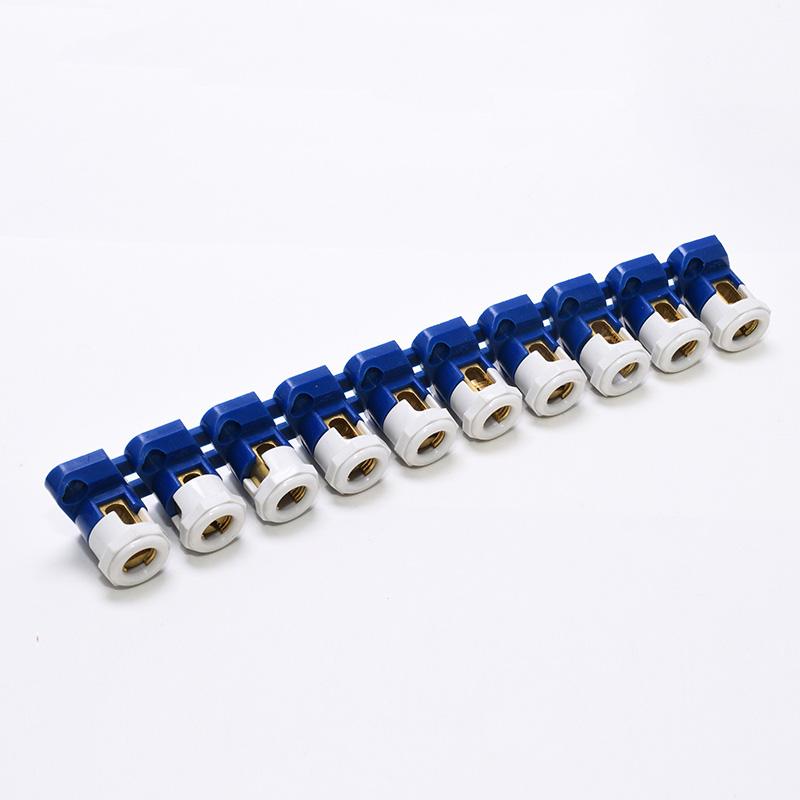

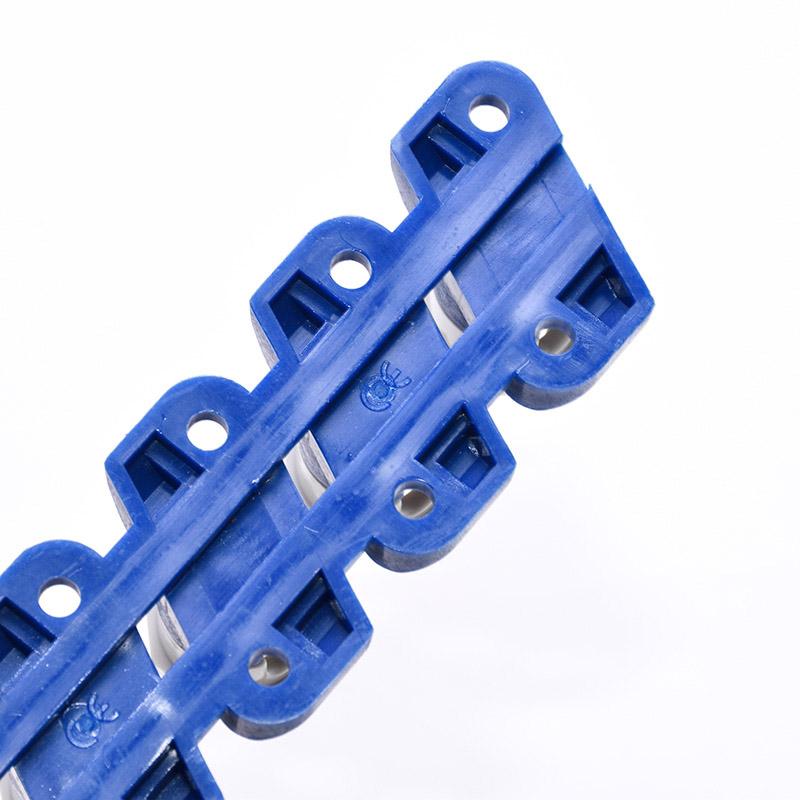

10 Poles Connector Unipolar Terminal Blocks  Constructed from premium polyamide66 materials, offers superior insulation, fire resistance, and heat resistance. These qualities make it an ideal choice for various industrial applications, ensuring secure and efficient electrical connections.



 ItemNo

 MJTB012-20-24

 Contact Material

 Brass

 Termination Method

 Screw Down

 Working Temperature

 -30℃ - 110℃

 Material

 Polyamide66

 Inserts

 Brass

 Housing

 Polyamide66(PA66)

 Screws

 Brass

Advantages of 10 Poles  Connector Unipolar Terminal Blocks

1.High-Quality Material: Provides excellent durability, insulation, and resistance to high temperatures and fire.

2.Reliable Connections: Designed to ensure secure and efficient connections for multiple wiring configurations.

3.Good Insulation: Prevents electrical short circuits and enhances overall safety.

4.Fire Resistance: Meets industry standards for fire resistance, adding an extra layer of protection.

5.Heat Resistance: Capable of withstanding high temperatures, making it suitable for demanding environments.

  • #10 Poles Junction Connector Unipolar Terminal Blocks

  • #Junction Connector Unipolar Terminal Blocks

  • #Unipolar Terminal Blocks


10 Poles  Connector Unipolar Terminal Blocks  General Specifications

10 Poles Junction Connector Unipolar Terminal Blocks

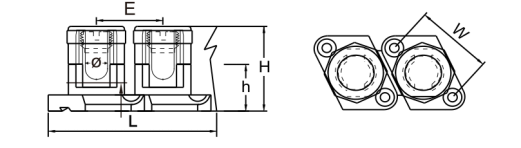

ItemNo. Wire Range Volt Blocks L W H E Ø Screw Size PCS/CTN
mm
MJTB012-20 6mm² 450V 10 162 20.3 21 15.5 3 M5.0 400
MJTB012-21 10mm² 450V 10 198.5 22 23.7 19.5 4 M8.0 160
MJTB012-22 16mm² 450V 10 211 23.5 26 20.5 5 M9.0 140
MJTB012-23 25mm² 450V 10 222 25 29.2 21.3 7 M10.0 120
MJTB012-24 35mm² 450V 10 260 28.5 33.5 25 8 M12.0 80



Application of 10 Poles  Connector Unipolar Terminal Blocks

       · Industrial Control Panels: Ideal for connecting components in industrial machinery and automation systems.

     · Power Distribution Systems: Ensures reliable connections in power distribution networks.

     · Residential Wiring: Suitable for home electrical systems, providing safe and efficient connections for lighting and outlets.

     · Commercial Buildings: Used in office and retail spaces for secure electrical connections.

     · Automotive and Marine: Reliable for vehicle and marine electrical systems, ensuring stable connections.

     · Renewable Energy: Supports connections in solar and wind power systems for efficient energy management.
