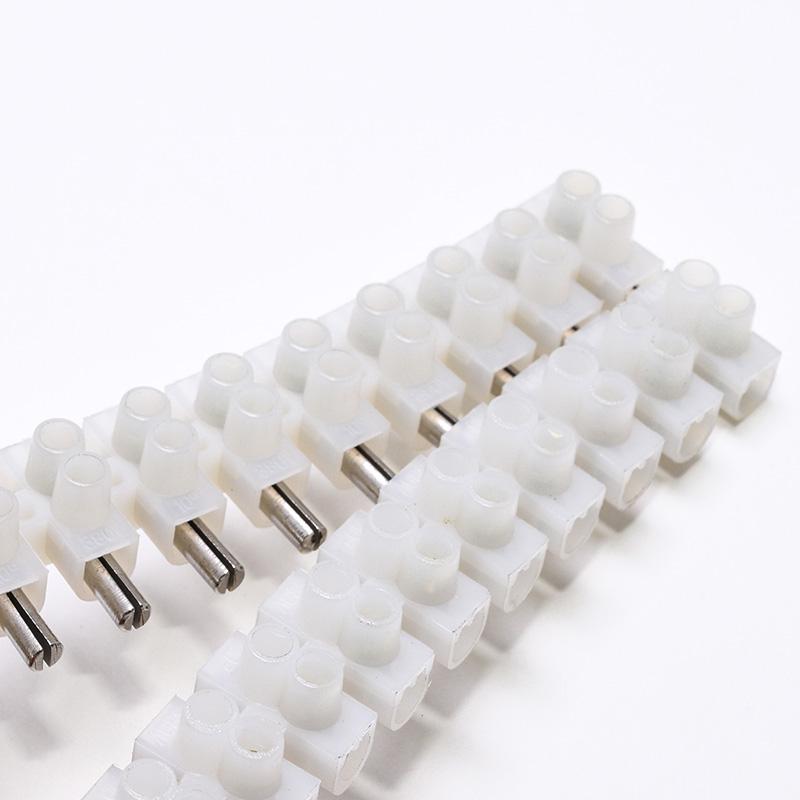

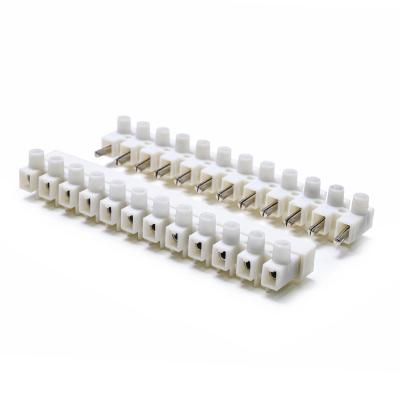

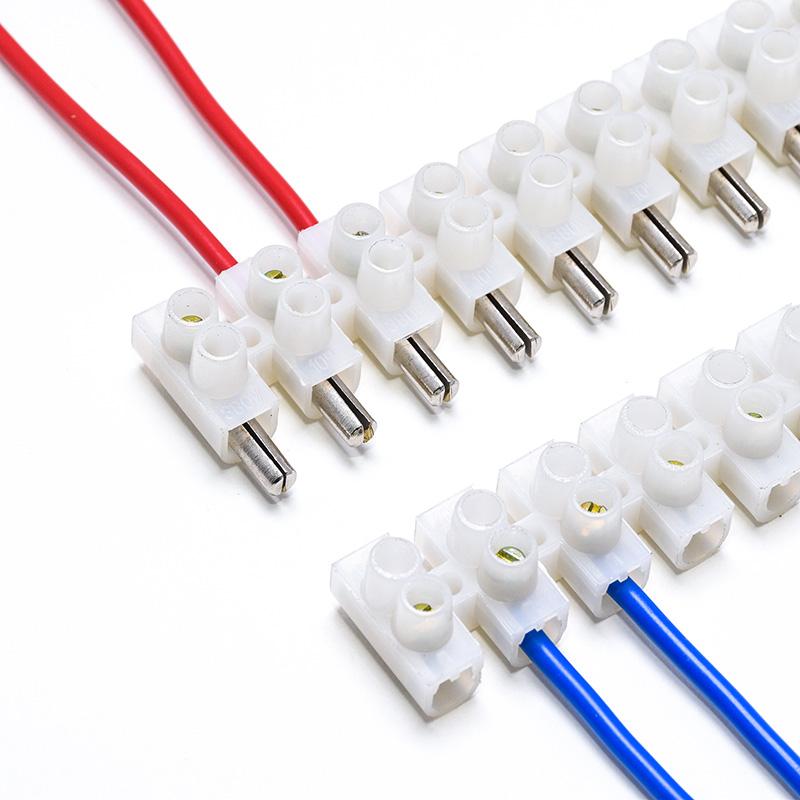

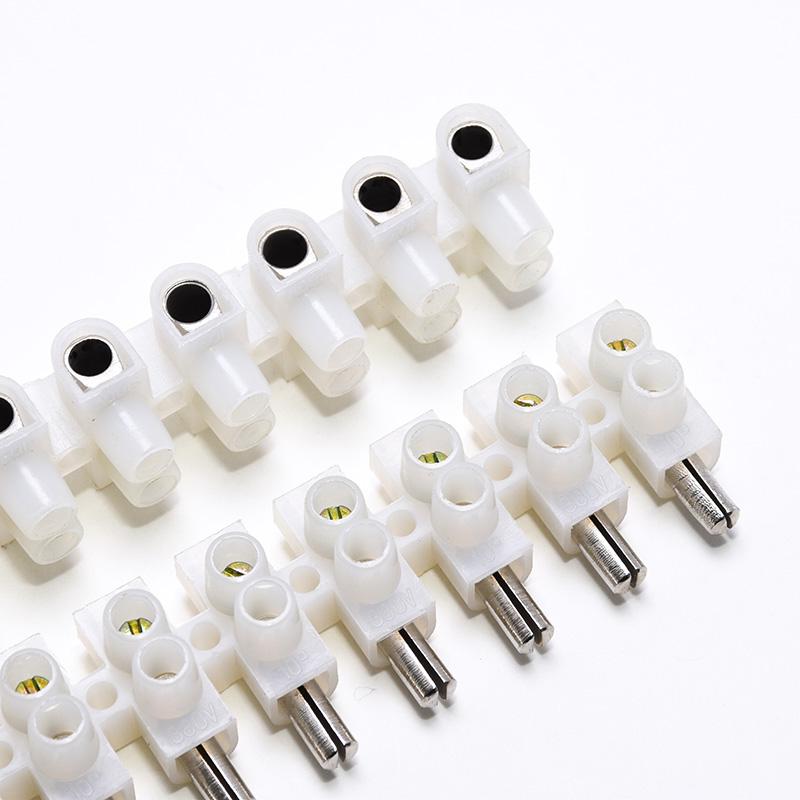

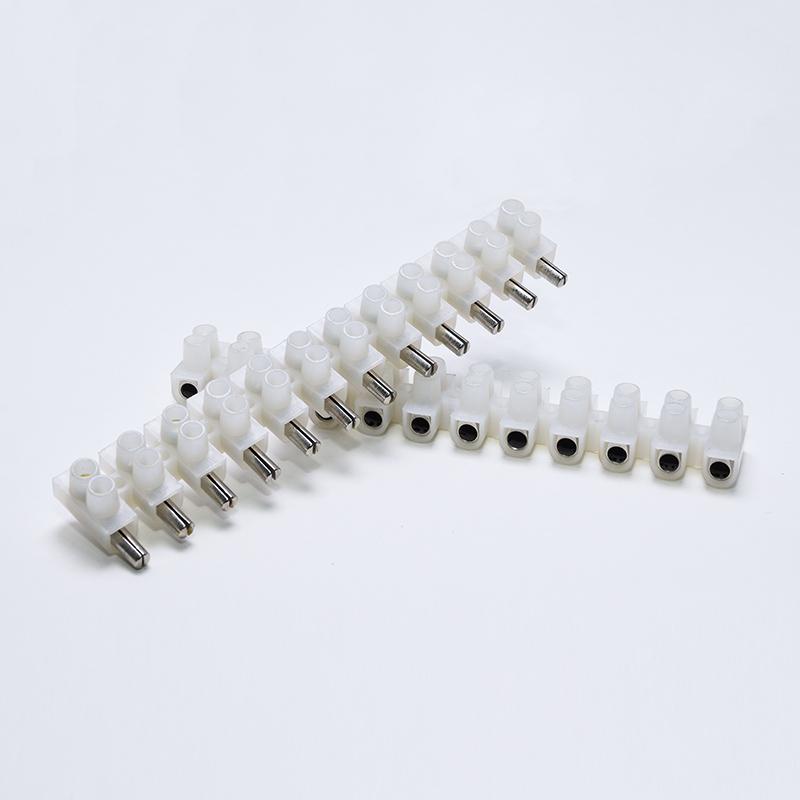

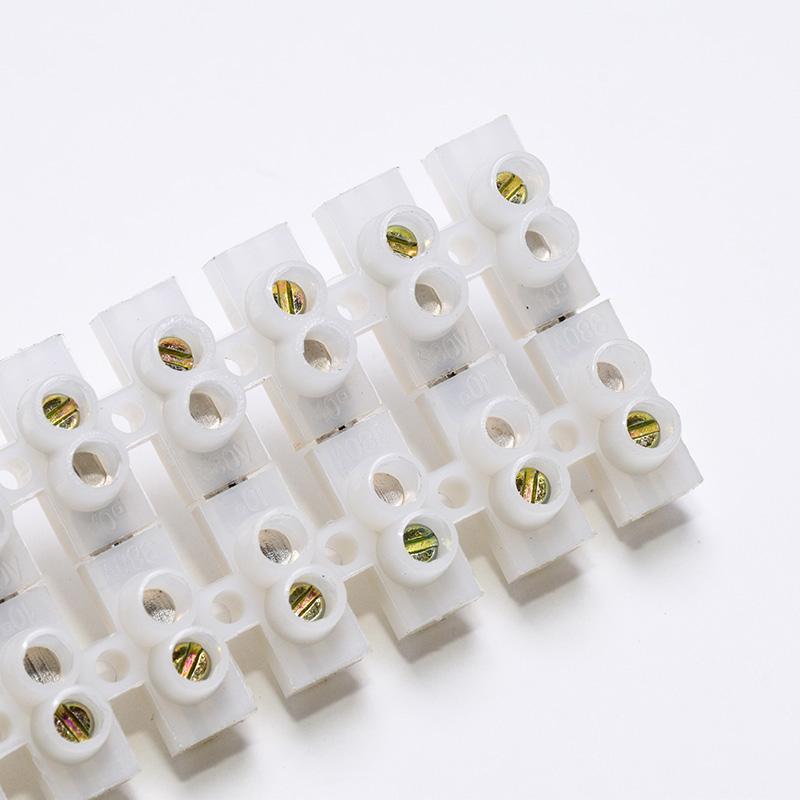

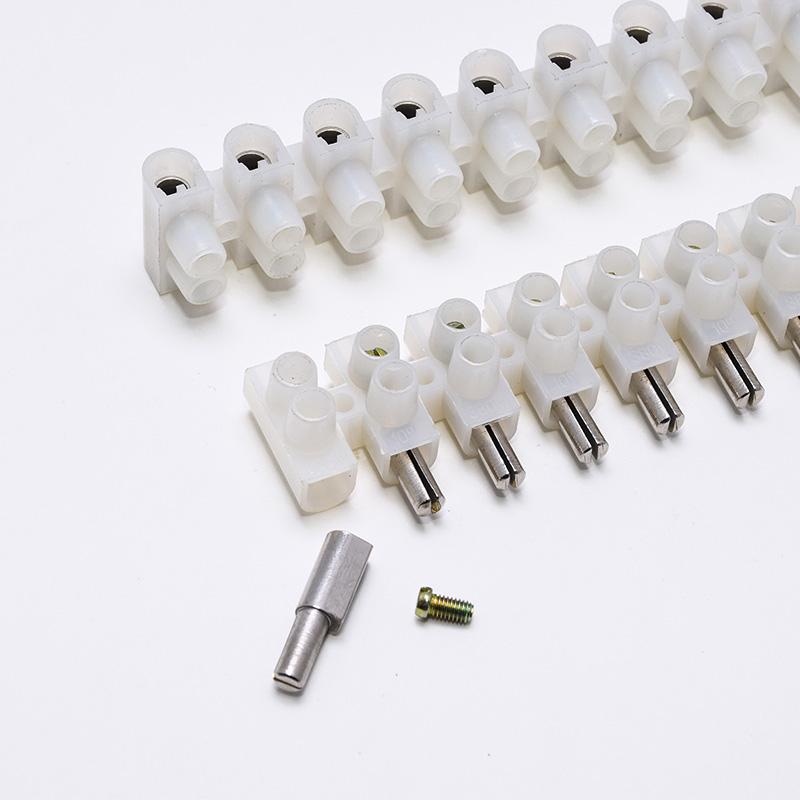

PA Pluggable Male-Femal Teminal Strips

PA Pluggable Male-Femal Teminal Strips

Pluggable male-femal Teminal Strips from high-quality materials such as natural PA6, these terminal strips ensure durability and reliable performance.  they meet stringent safety standards.  The terminal strips are available with or without wire protection, and they can be easily cut to size or supplied cut to length upon request.Featuring closed inserts (middle barrier) options and captive terminal screws, these terminal strips are perfect for secure and efficient connections.



 ItemNo

 MJTB011-01-04

 Contact Material

 Brass

 Termination Method

 Screw Down

 Glow Wire Test

 850

 Material

 Polyamide6

 Number of Ways

 12

 Inserts

 Brass

 Housing

 Polyamide6(PA6)

 Screws

 Steel,Zinc plated

Advantages of Pluggable male-femal Teminal Strips



1. Wire Protection Options: Available with or without wire protection for added flexibility.

2. Safety Compliance: Passes test ensuring high safety standards.

3. Customizable: Easily cut to size and supplied cut to length upon request.

4. Closed Inserts Option: Features middle barrier options for added security.

5. Captive Terminal Screws: Ensures secure and reliable connections.

6. Pluggable Design: Includes both male and female terminal blocks for versatile connectivity.

7. 12 Way Configuration: Provides ample connection points for various applications.

8. Brass Contacts: Offers excellent conductivity and durability.

  • #Pluggable male-femal Teminal Strips

  • #Pluggable  Teminal Strips

  • #Pluggable Strips




Pluggable male-femal Teminal Strips General Specifications

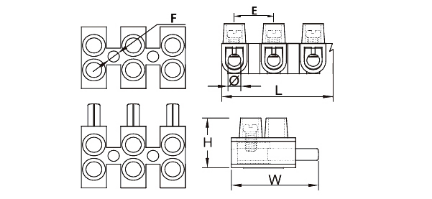

ItemNo. WireRange Amp Volt L W H E F Ø Screw Size PCS/CTN
mm
MJTB011-01 4.0mm² 3A 380V 93.5 32 11 8 2.5 2.8 M2.5 500
MJTB011-02 6.0mm² 6A 380V 115 32 13 10 3 3.2 M3.0 500
MJTB011-03 10mm² 10A 380V 132 36.8 15 11 2.9 4.2 M3.0 250
MJTB011-04 12mm² 16A 380V 140.5 40 17 12 3 4.4 M3.5 250



Application of Pluggable male-femal Teminal Strips

The pluggable terminal strips are designed for a wide array of electrical connection applications, ensuring reliable and secure performance in various environments. Their high-quality materials and customizable features make them suitable for Industrial Machinery,HVAC Systems,Electrical Panels,Appliances,Lighting Systems,Power Distribution,Renewable Energy,Custom Electrical Projects.

Send A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

Plug-in Connector Strips
Electrical Plug-in Connector Strips ( Type1 )

Electrical Plug-in Connector Strips ( Type1 ) is an ideal solution for wire-to-wire connections in HVAC systems, appliances, equipment, power distribution, and other applications.Designed to streamline and simplify the replacement of subassemblies, these pluggable connector strips significantly reduce downtime and the risk of misconnections.The two-piece design features tubular screw clamps with recessed metal parts for enhanced finger protection.A spring-loaded contact mechanism prevents accidental unplugging, ensuring secure connections.   The headers and plugs come with either a flat base or standoff feet and can be either panel-mounted or free-floating, offering versatility in installation.    ItemNo  MJTB010  Contact Material  Brass  Termination Method  Screw Down  Glow Wire Test  850 ℃  Material  Polyamide6  Number of Ways  12  Inserts  Brass  Housing  Polyamide6(PA6)  Screws  Steel,Zinc plated

Details
Pluggable Connectors Terminal Strips
Pluggable Wire Connectors Terminal Strips

Pluggable Wire Connectors Terminal Strips Constructed from materials  PA6,these terminal strips deliver exceptional durability and performance. the terminal strips can be easily cut to the desired size or provided pre-cut to length upon request.  Featuring captive terminal screws and middle barrier inserts, these terminal strips guarantee secure and efficient connections.    ItemNo  MJTB011-10  Contact Material  Brass  Termination Method  Screw Down  Glow Wire Test  850 ℃  Material  Polyamide6  Number of Ways  12  Inserts  Brass  Housing  Polyamide6(PA6)  Screws  Steel,Zinc plated

Details
Bakelite Terminal Strip
12 Way Bakelite Connector Black Terminal Strip

12 Way Bakelite Connector Black Terminal Strip for safe, durable, and efficient electrical connections. It is a robust and reliable component designed for a variety of electrical applications.   Made from Bakelite, a thermosetting plastic known for its excellent insulating properties and high mechanical strength, this terminal strip ensures secure and efficient electrical connections.   1.Material and Construction: Made of high-quality Bakelite, providing excellent insulation and mechanical strength. 2.Non-Flammable: The Bakelite material is non-flammable, enhancing safety in electrical installations. 3.Easy Installation: Designed for quick and hassle-free installation, reducing setup time.

Details
Economical Type Terminal Strip

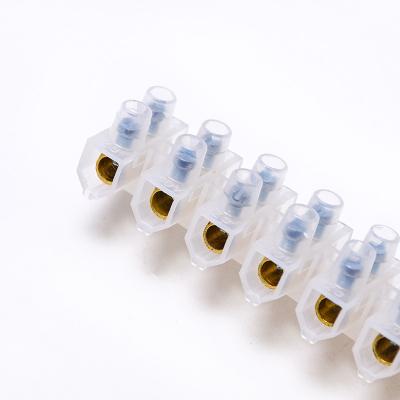

Saudi Arabia Economical Type Electrical Choc Block Terminal

Saudi Arabia Economical Type Electrical Choc Block Terminal Crafted from polyethylene, these terminal blocks can be conveniently divided into the required number of circuits with a mounting knife or by twisting the connector. They include holes for secure attachment to a substrate or holder. The terminal blocks feature robust brass current circuits and galvanized screws, guaranteeing reliable performance.   1.Essential for Electrical Connections: Ideal for electrical appliances and luminaires. 2.Easy to cut: do not loosen screws and raise easy wiring. 3.quick and safe installation:There are screw holes between each block for quick and safe installation.  4.transparent design: you can quickly identify it. The transparent design allows for secure and efficient connections.

Details
Ballast Terminal Connector
2&3 Poles Steel Ballast Terminal Connector

2&3 Poles Steel Ballast Terminal Connector designed for reliable and efficient electrical connections.This terminal features captive screws and raised screws, making conductor insertion straightforward and hassle-free.it ensures safety and performance in various applications.The Srew zinc plated inserts provide excellent conductivity and durability. it also offers versatile installation options with horizontal and vertical fixing or mounting holes.    ItemNo  MJTB021  Contact Material  Steel  Termination Method  Screw Down  Glow Wire Test  850℃  Material  Polyamide66 Housing  Inserts  Steel  Housing  Polyamide66 (PA66)  Screws  Steel,Zinc plated

Details
Copper Terminal Ground Bar Screw Block
Two Line Copper Terminal Ground Bar Screw Block

Two Line Copper Terminal Ground Bar Screw Block  is a terminal connector, for wiring or grounding function.Other dimensions can be made as requested.   1.High-Quality Copper: Made from premium copper, offering excellent electrical. 2.Two-Line Configuration: The two-line design allows for multiple connections, providing flexibility in organizing and managing wiring. 3.Two-Line Configuration: The two-line design allows for multiple connections, providing flexibility in organizing and managing wiring.

Details
DIN Rail Screw Brass Terminal Block

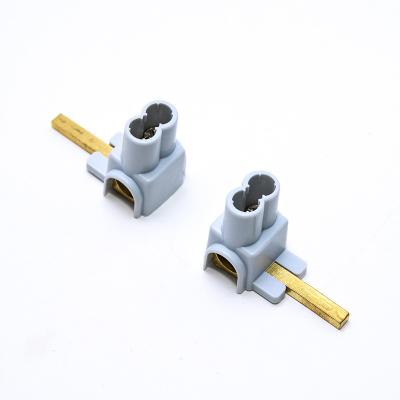

Din Rail Type Bottom Seat Screw Brass Terminal Block
