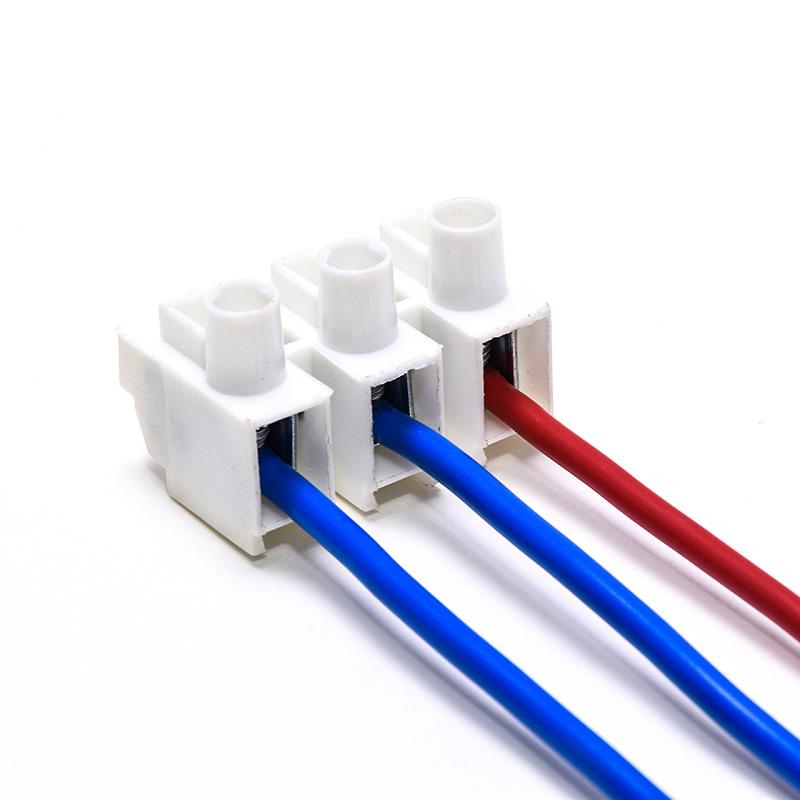

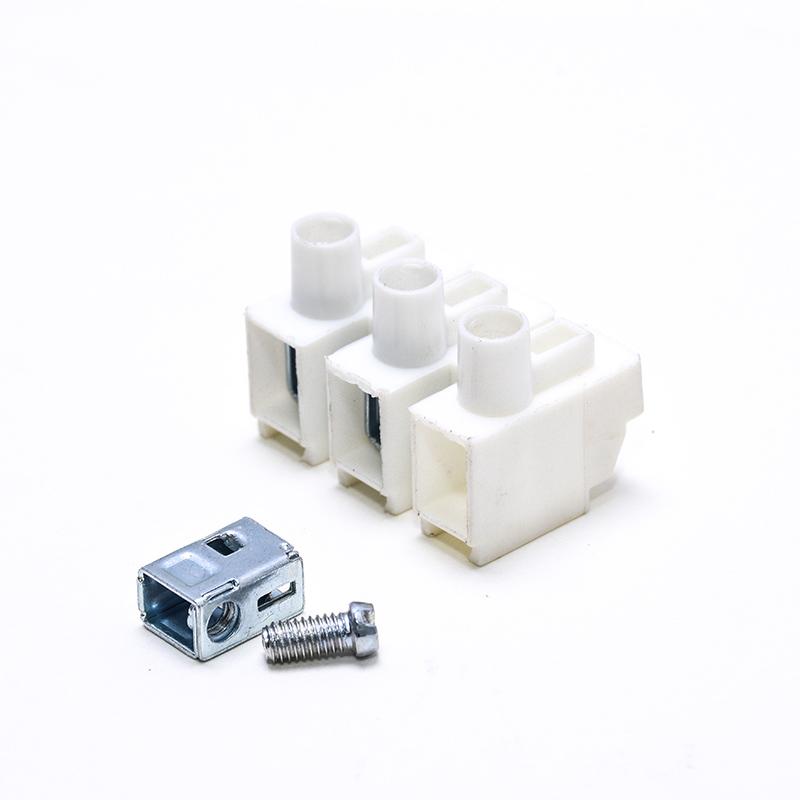

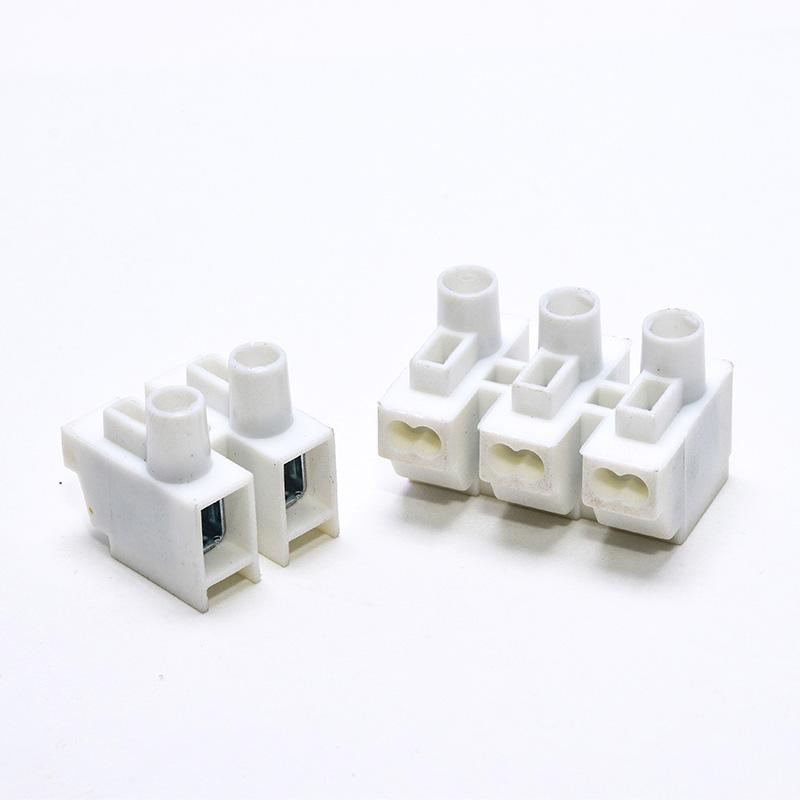

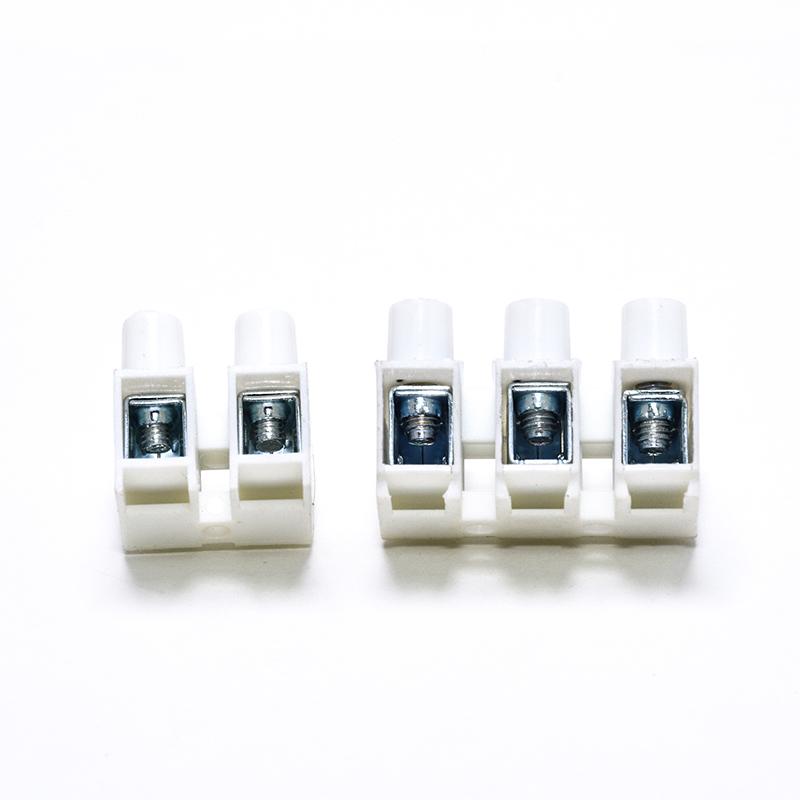

2&3 Poles Steel Ballast Terminal Connector

U Type 12-Position Wire Connector Terminal Strip ensures secure connections with brass contacts and screw clamps. Each terminal block is crafted with brass conductor inserts and features zinc plated screws for reliable conductivity and durability.    ItemNo  MJTB003-01-09  Contact Material  Brass  Termination Method  Screw Down  Working Temperature  -40℃ - 65℃  Material  Polyethylene Housing  Number of Ways  12  Inserts  Brass  Housing  Polyethylene (PE)  Screws  Steel,Zinc plated

 Wire Protection Brass With Stainless Spring Terminal Strip shares many similarities in body and clamp design with others on the market. However, its standout feature lies in the integration of a steel plate within the clamp mechanism. This innovative design ensures that when tightening the conductor screw, the pressure is evenly distributed and does not compromise the integrity of the conductor's structure.    ItemNo  MJTB002-01-05  Contact Material  Brass(Nickled) With Stainless Spring  Termination Method  Screw Down  Glow Wire Test  850 ℃  Material  Polypropylene Housing  Number of Ways  12  Inserts  Brass  Housing  Polypropylene (PP)  Screws  Steel,Zinc plated

U Type Electrical Cable White Terminal Strip is made from high quality brass and outer is made from PP, with zinc plated steel screws ,It have CE,NF,ROHS,REACH Certifications and can be cut to small part as you need using scissors, knife or other tools.      ItemNo  MJTBN-01-05  Contact Material  Brass  Termination Method  Screw Down  Glow Wire Test  850 ℃  Material  Polypropylene Housing  Number of Ways  12

The difference between this Terminal Strip and Dul Row Terminal Strip Connector is that the PA Terminal Strip With Wire Protector have CE,VDE,ROHS,REACH Certifications.It is also designed for industrial applications, especially where enhanced connection durability and increased resistance to weather conditions are essential.    ItemNo  MJTBV-01-05  Contact Material  Brass  Termination Method  Screw Down  Glow Wire Test  850 ℃  Ambient Temperature  T110℃  Number of Ways  12  Inserts  Brass  Housing  Polyamide6 (PA6)  Screws  Steel,Zinc plated

H Type Steel Insert Terminal Strip U shaped contacts permit easy wire insertion.Metal parts feature steel screws and zinc-plated steel contacts with or without brass strips.Recessed screws and tubular contacts provide added safety and help prevent short circuits.    1.Flame-Retardant Housing: H Type Steel Terminal Strip Made from polyamide6 with a flame-retardant rating, ensuring enhanced safety. 2.Durable Contacts: Equipped with zinc-plated steel contacts, available with or without brass strips for reliable conductivity. 3.Enhanced Safety: Recessed screws and tubular contacts provide added safety and help prevent short circuits. 4.Customizable Design: Featuring 12 poles that can be cut into the desired number of poles to suit various applications.

Saudi Arabia Economical Type Electrical Choc Block Terminal Crafted from polyethylene, these terminal blocks can be conveniently divided into the required number of circuits with a mounting knife or by twisting the connector. They include holes for secure attachment to a substrate or holder. The terminal blocks feature robust brass current circuits and galvanized screws, guaranteeing reliable performance.   1.Essential for Electrical Connections: Ideal for electrical appliances and luminaires. 2.Easy to cut: do not loosen screws and raise easy wiring. 3.quick and safe installation:There are screw holes between each block for quick and safe installation.  4.transparent design: you can quickly identify it. The transparent design allows for secure and efficient connections.

H Type PE Electrical Choc Terminal Strip Crafted with heat-resistant polythene insulation, these terminal blocks withstand up to 65°C. Each terminal block features 24 connection screws, simplifying wiring setups for various projects. the terminal strip are ideal for various basic electrical installation tasks.This terminal block has the advantages of being lightweight and rigid, with resistance to corrosion and high tensile strength. It also features raised screw down terminals for ease of wiring.      ItemNo  MJTB001-01-09  Contact Material  Brass  Termination Method  Screw Down  Working Temperature  -40℃ - 65℃  Material  Polyethylene Housing  Number of Ways  12  Inserts  Brass  Housing  Polyethylene (PE)  Screws  Steel,Zinc plated

Nylon Dual Row Terminal Strip Connector are designed for industrial applications, especially where enhanced connection durability and increased resistance to weather conditions are essential. Each strip has 12 circuits and can be easily cut to the required number of poles. All metal parts are completely recessed in the flexible polyamide moulding. This dead front design ensures safety and prevents short circuiting.A key feature is the use of Polyamide PA 6 for the body material and a brass clamp with a galvanic coating to improve corrosion resistance.     ItemNo  MJTB001-30-38  Contact Material  Brass  Termination Method  Screw Down  Glow Wire Test  850 ℃  Material  Polyamide6 Housing  Number of Ways  12  Inserts  Brass  Housing  Polyamide6 (PA6)  Screws  Steel,Zinc plated
