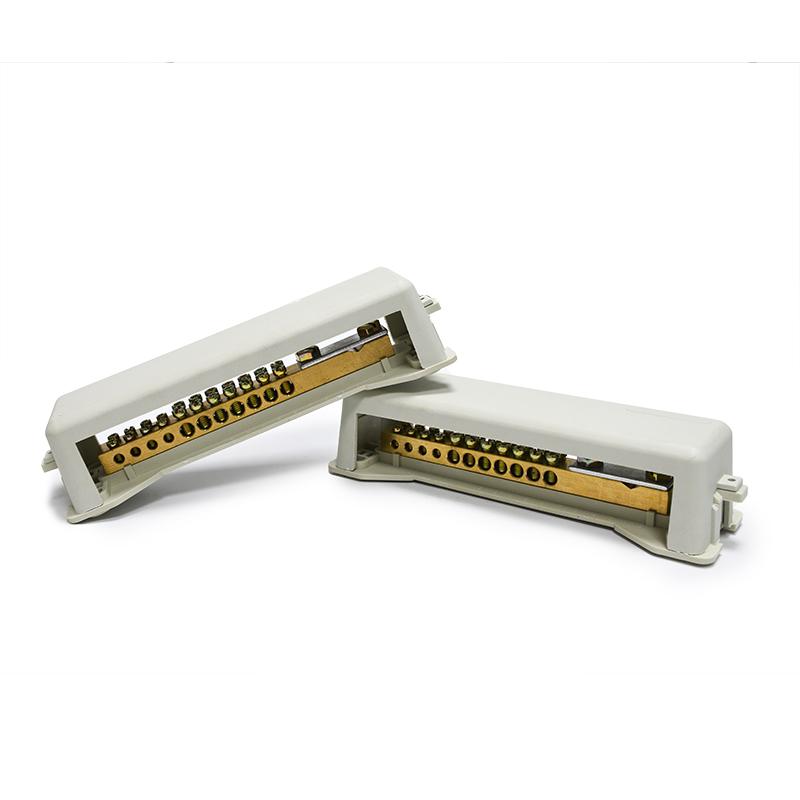

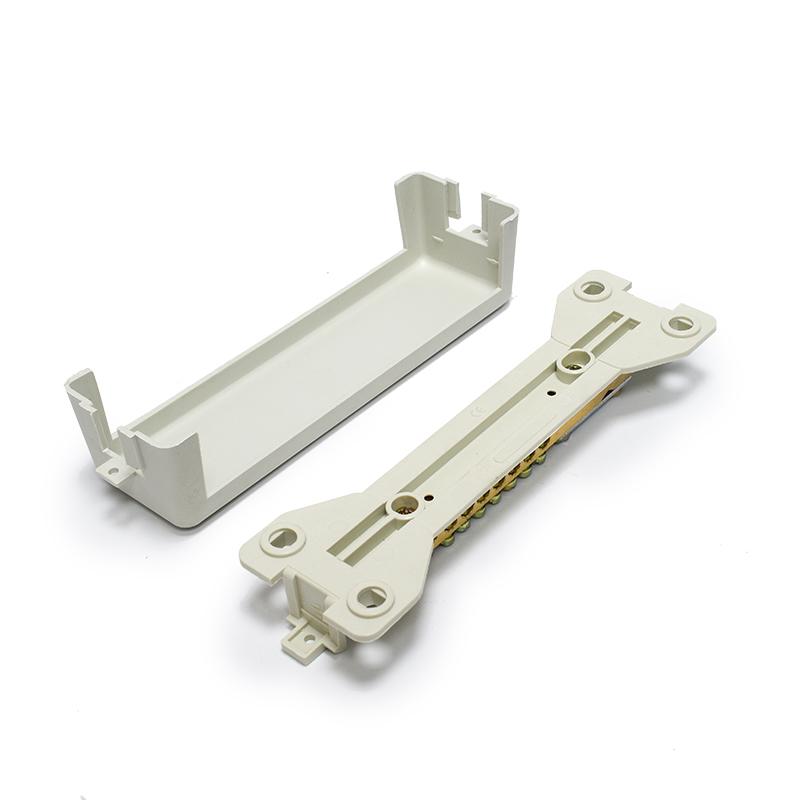

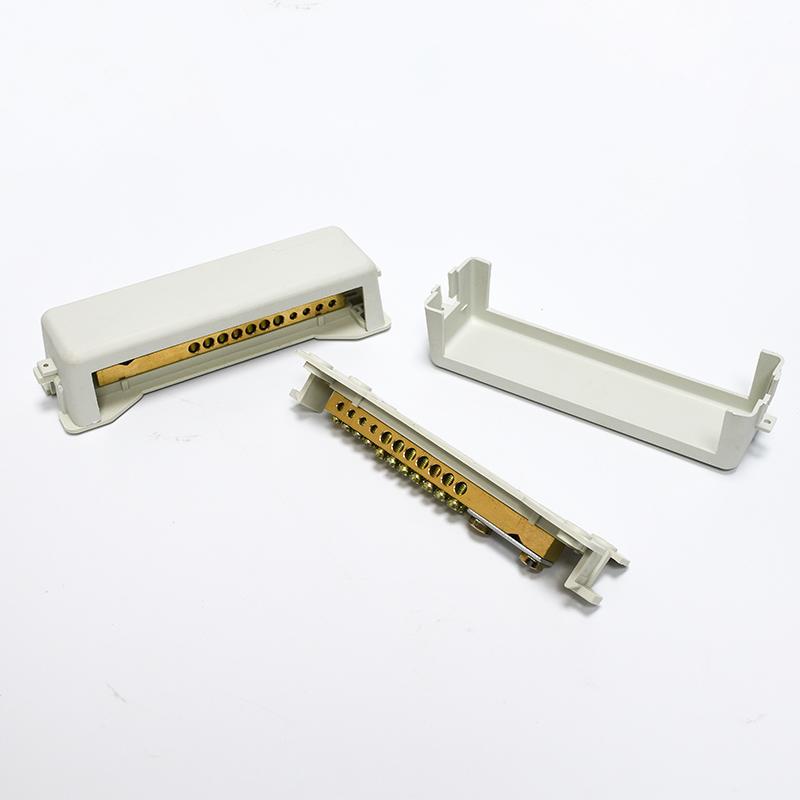

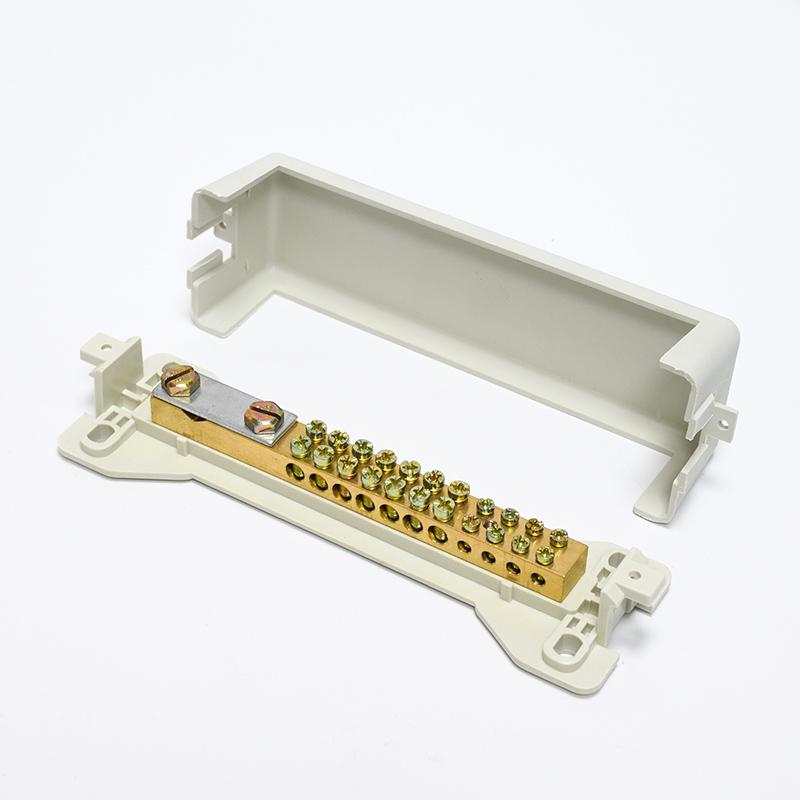

Equipotential Plate with Lid Bonding Bar Terminal Block

 Equipotential Bonding with Metal Stand Lock Bar Terminal Block is an advanced electrical connection device engineered to maintain equal potential across connected electrical equipment and systems. This innovative bus bar prevents electrical failures and hazards due to potential differences, ensuring safety and reliability in various electrical systems. It plays a crucial role in mitigating risks associated with lightning strikes, static electricity, and other potential electrical hazards, while optimizing current distribution and enhancing system stability.    ItemNo  MJTB034  Contact Material  Brass  Termination Method  Screw Down  Working Temperature  -40℃ - 110℃  Material  Polyamide Housing  Inserts  Brass  Screws  Steel,Zinc plated

Distributor Busbar Intersystem Bonding Termination Block is mounted adjacent to the meter base or service entrance equipment and a convenient way to interconnect and terminate grounding conductors from telephone, CATV or radio and television antennas.  it includes corrosion-resistant, stainless steel mounting hardware and is easily accessible for connection and inspection.  The polymeric base and housing is impactresistant, UV-stabilized.Connects to grounding electrode conductor – does not rely on meter base enclosure bonding connection.    ItemNo  MJTB034  Contact Material  Brass  Termination Method  Screw Down  Working Temperature  -40℃ - 110℃  Material  Polyamide Housing  Inserts  Brass  Screws  Steel,Zinc plated

The Din Rail Terminal Block Wire Box applications where high voltage distribution is required, the Power Screw Terminal with Cover Junction Boxs are ideal for high power distribution is smaller spaces. All products mount on a standard 35mm Din Rail, terminals are solid copper and screws are stainless steel.    ItemNo  MJTB037  Contact Material  Brass,Nickle Plated  Termination Method  Screw Down  Housing  PC,PL  Material  Polyamide Housing  Inserts  Brass  Screws  Steel,Nickle Plated

The PCT compact splicing connector is designed for fast and reliable wiring solutions. Made from premium PA6 insulating material, it ensures long-term durability with resistance to high temperatures, corrosion, and aging. Ideal for both professionals and DIY users, this connector replaces traditional methods, simplifying wiring with a safe and secure connection.it accommodates various applications like ceiling fans, switches, and automotive wiring.

One-Side Entry Transparent Terminal Blocks crafted from high-quality polycarbonate for exceptional clarity and durability.These terminal blocks exhibit a glossy finish and are resistant to flames, impacts, and thermal fluctuations.With anti-pollution properties, they maintain reliability in various environments, operating seamlessly within a temperature range of -35°C to 120°C.Featuring brass, screws with zinc plating, they ensure secure connections.Easily adaptable, these terminal blocks can be snapped to the required number of poles without leaving burrs, eliminating the need for tools.They are supplied with screws in a raised position for effortless installation.    ItemNo  MJTB013  Contact Material  Brass  Termination Method  Screw Down  Working Temperature  -35℃ - 120℃  Material  Polycarbonate  Number of Ways  10  Inserts  Brass  Housing  Polycarbonate(PC)  Screws  Steel,Zinc plated

Power Flexible Wiring Terminal Strip with wire protection are fitted with a wire protection guard inside the clamping body, which prevents damage to the connected wire. All parts are captive in the insulating housing.    ItemNo  MJTB006-01-04  Contact Material  Brass  Termination Method  Screw Down  Glow Wire Test  850℃  Material  Polyamide6 Housing  Number of Ways  12  Inserts  Brass  Housing  Polyamide6 (PA6)  Screws  Steel,Zinc plated

The Earth Connector with DIN Rail H-Type Holder Terminal Blocks is a crucial component for grounding and electrical connection systems. these terminal blocks ensure secure and efficient grounding connections, providing enhanced safety and performance in various electrical installations.   1.High-Quality Materials: Constructed from durable and high-conductivity materials such as brass and stainless steel, ensuring long-lasting performance. 2.Insulated Housing: The terminal blocks come with an insulated housing, typically made from polyamide or a similar high-quality plastic, to ensure safety and durability. 3.DIN Rail Mounting: The H-Type Holder design allows for easy and secure mounting on standard DIN rails, facilitating organized and efficient installations. 4.Excellent Conductivity: High-conductivity materials ensure efficient electrical grounding. 5.Easy Installation: Designed for quick and hassle-free installation on DIN rails, saving time and effort.

10 Poles Connector Unipolar Terminal Blocks  Constructed from premium polyamide66 materials, offers superior insulation, fire resistance, and heat resistance. These qualities make it an ideal choice for various industrial applications, ensuring secure and efficient electrical connections.    ItemNo  MJTB012-20-24  Contact Material  Brass  Termination Method  Screw Down  Working Temperature  -30℃ - 110℃  Material  Polyamide66  Inserts  Brass  Housing  Polyamide66(PA66)  Screws  Brass
