V Type Double Row Terminal Strip Block

V Type Double Row Terminal Strip Block

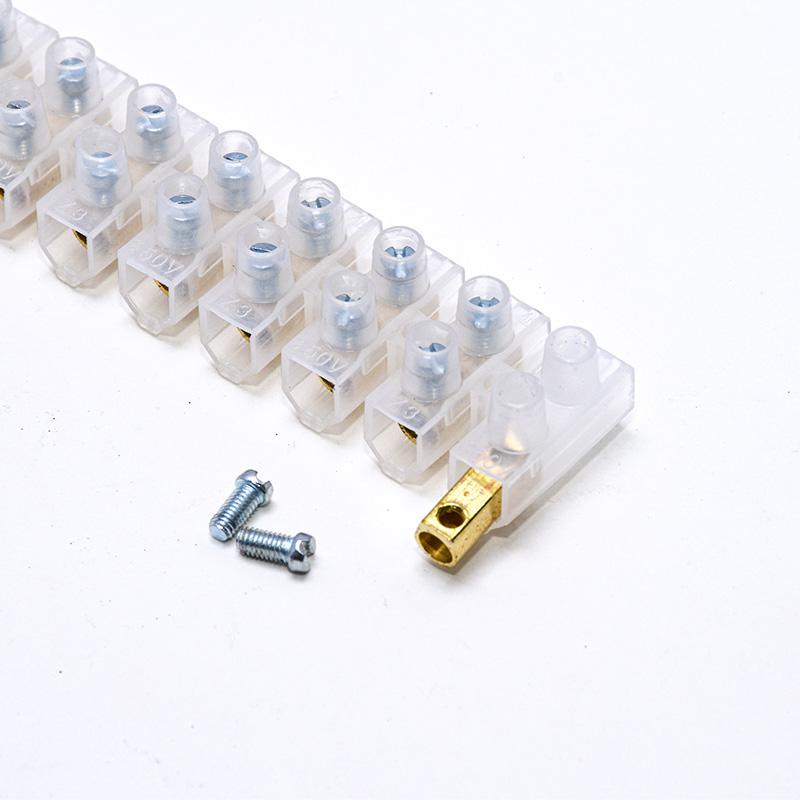

V Type Double Row Terminal Strip Block conductive part is crafted from brass,  it has robust torque and exceptional durability, ensuring secure connections that withstand rigorous use.



 ItemNo

 MJTB005-01-03

 Contact Material

 Brass

 Termination Method

 Screw Down

 Colour

 White,Black

 Material

 Polyethylene Housing

 Number of Ways

 12

 Inserts

 Brass

 Housing

 Polyethylene (PE)

 Screws

 Steel,Zinc plated



Advantages of V Type Double Row Terminal Strip Block



1.Wiring Terminal Connection: Made from durable materials, ensuring long-lasting use.

2.High Durability: PE material provides good flexibility and insulation.

3.Easy Connection: This screw terminal block simplifies cable connections, making them smoother and more efficient.

4.Fine Workmanship: Ensures practicality and reliability for all your wiring needs.

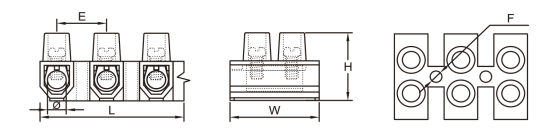

V Type Double Row Terminal Strip Block General Specifications

V Type Terminal Strip



ItemNo. Wire Range Amp Volt L W H E F Ø Screw Size PCS/CTN
mm
MJTB005-01 2.5mm² 3A 250V 93.2 17 13.6 8 2.5 3 M2.5 1000
MJTB005-02 4.0mm² 6A 250V 114.5 18.8 15.3 10 2.9 3.3 M3.0 1000
MJTB005-03 6.0mm² 10A 250V 128.8 20.9 16 11 2.9 4.2 M3.0 500
MJTB005-04 10mm² 15A 250V 136.8 22.6 18.8 12 3.1 4.5 M4.0 500
MJTB005-05 16mm² 30A 250V 164.5 25.5 20.2 15 3.5 5 M4.0 300
MJTB005-06 25mm² 60A 250V 193 30 26 16.3 3.5 6.5 M4.0 200
MJTB005-07 35mm² 80A 400V 202 35.7 30 17.3 3.5 8 M5.0 100



Application of V Type Double Row Terminal Strip Block

 V Type Double Row Terminal Strip Block Widely used in various lamps, industrial and household appliances, supermarkets, electrical and electrical transmission equipment, wire and cable access, etc speakers.

  •  V Type Terminal Strip

  • # V Type Terminal Block

  • #Screw V type terminal block


--
